RT-6151 Datasheet

Features:
SVE Capabilities: 135 CFM @ 60" WC
AS Capabilities: 63-90 CFM @ 20 PSI
System Rating: 230 V, 3 phase

Controls:

NEMA 4/12 control panel
PLC Controller with wireless connectivity and remote login
Includes Telemetry Service, no configuration required by client.
Includes all motor starters, HOA switches and IS safety barriers.
Includes load center for power distribution

SVE Package:
Ametek Rotron EN808 Regenerative Vacuum Blower

• 7.5 HP 230V 3ph TEFC motor
• Rated for minimum 135 ACFM @60"WC

MS-120 Aluminum Moisture Separator

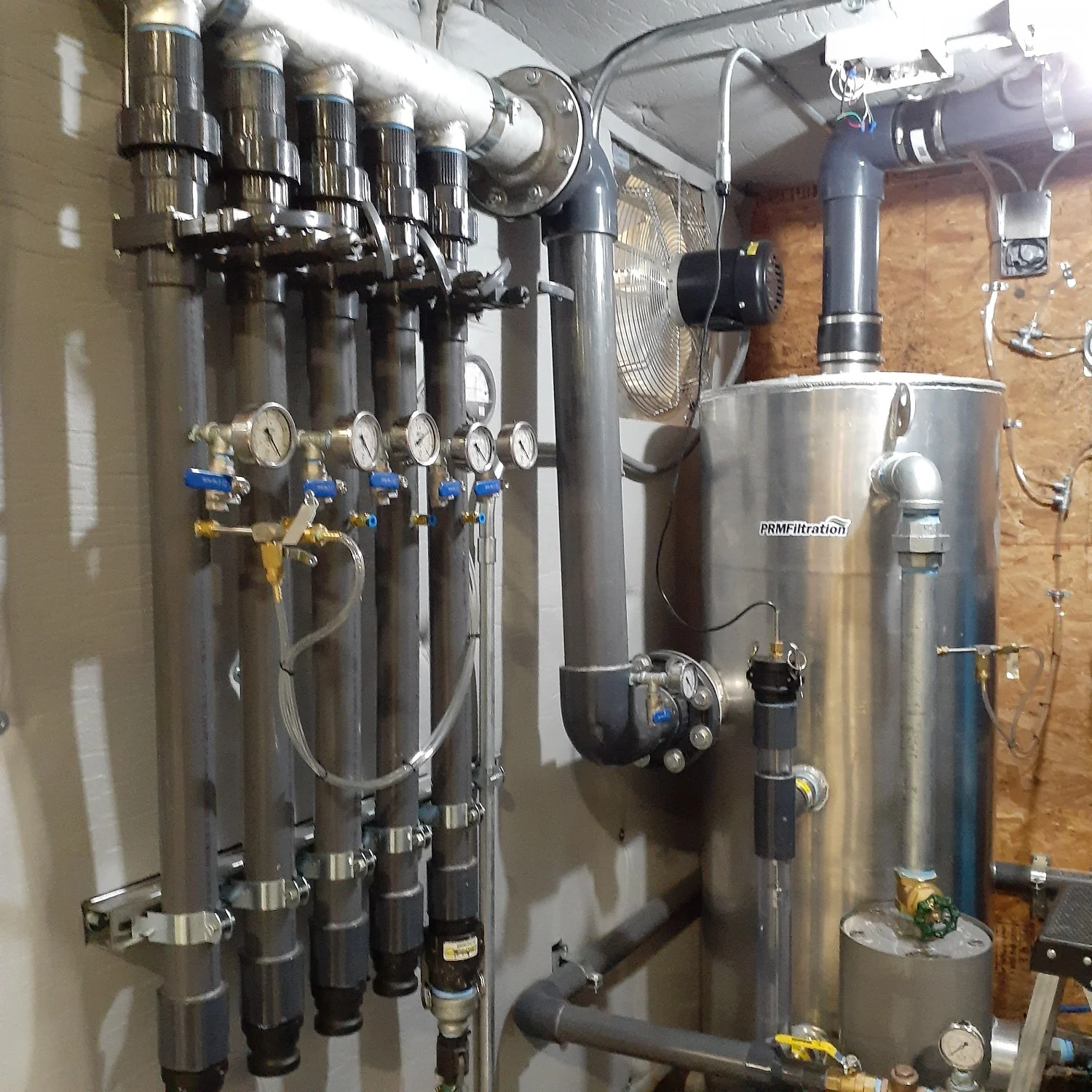

SVE Manifold includes (5) - 2" SVE legs
Carbon by-pass manifold so blower can pull through carbons, eliminates the need for heat exchanger

Air Sparge System
Ohio Medical CA7L Rotary Claw Compressor

• 15 HP 230V 3ph TEFC motor
• Rated for between 63-90 CFM @ 20 PSI

Integrated Inlet Filter Silencer
Heat Exchanger plumbed inline
(9) - 1" sparge legs, each with check valves, pressure gauges, rotameter



System Enclosure

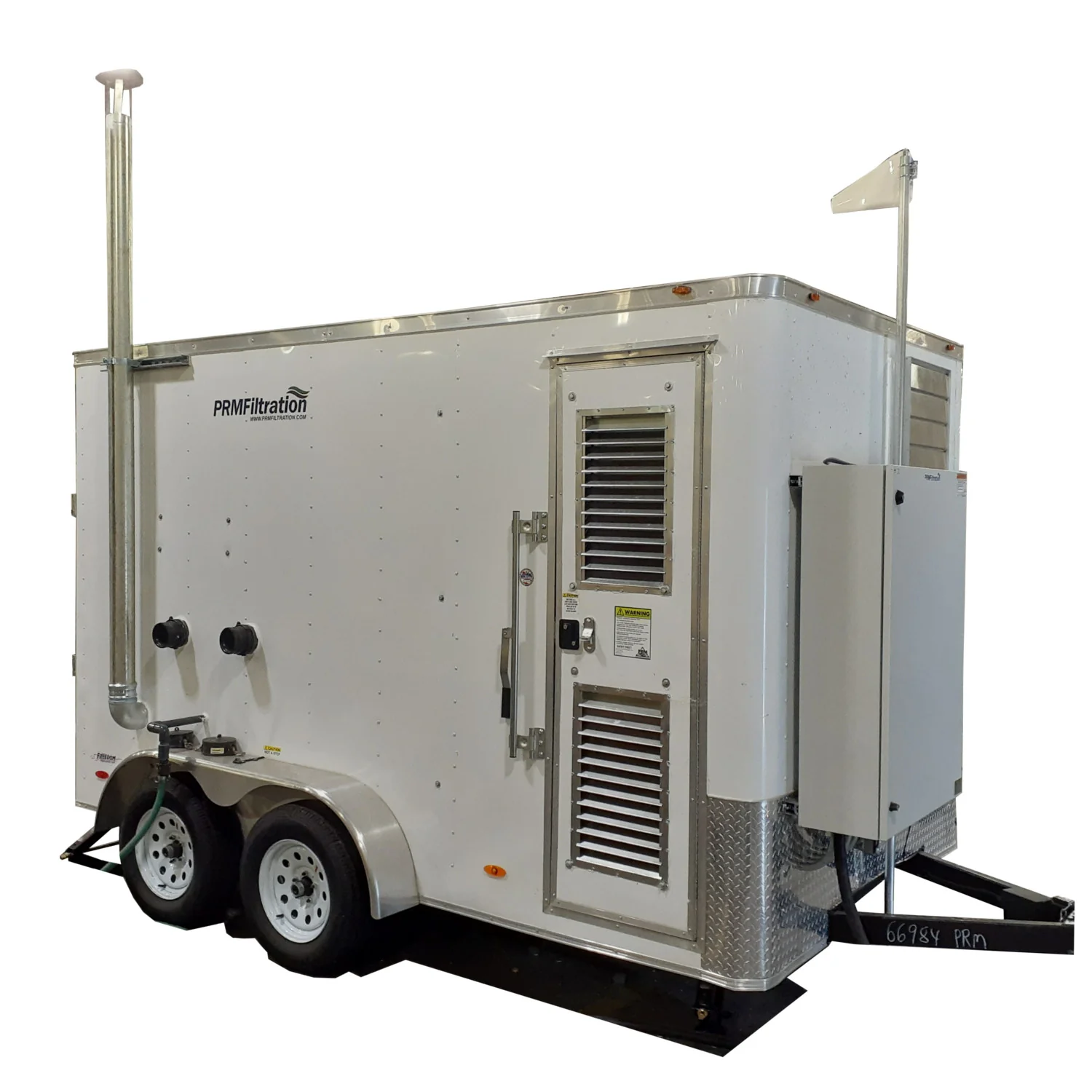

7’ x 12’ Tandem Axle Enclosed Trailer
Double Rear Doors, panel on nose of trailer
