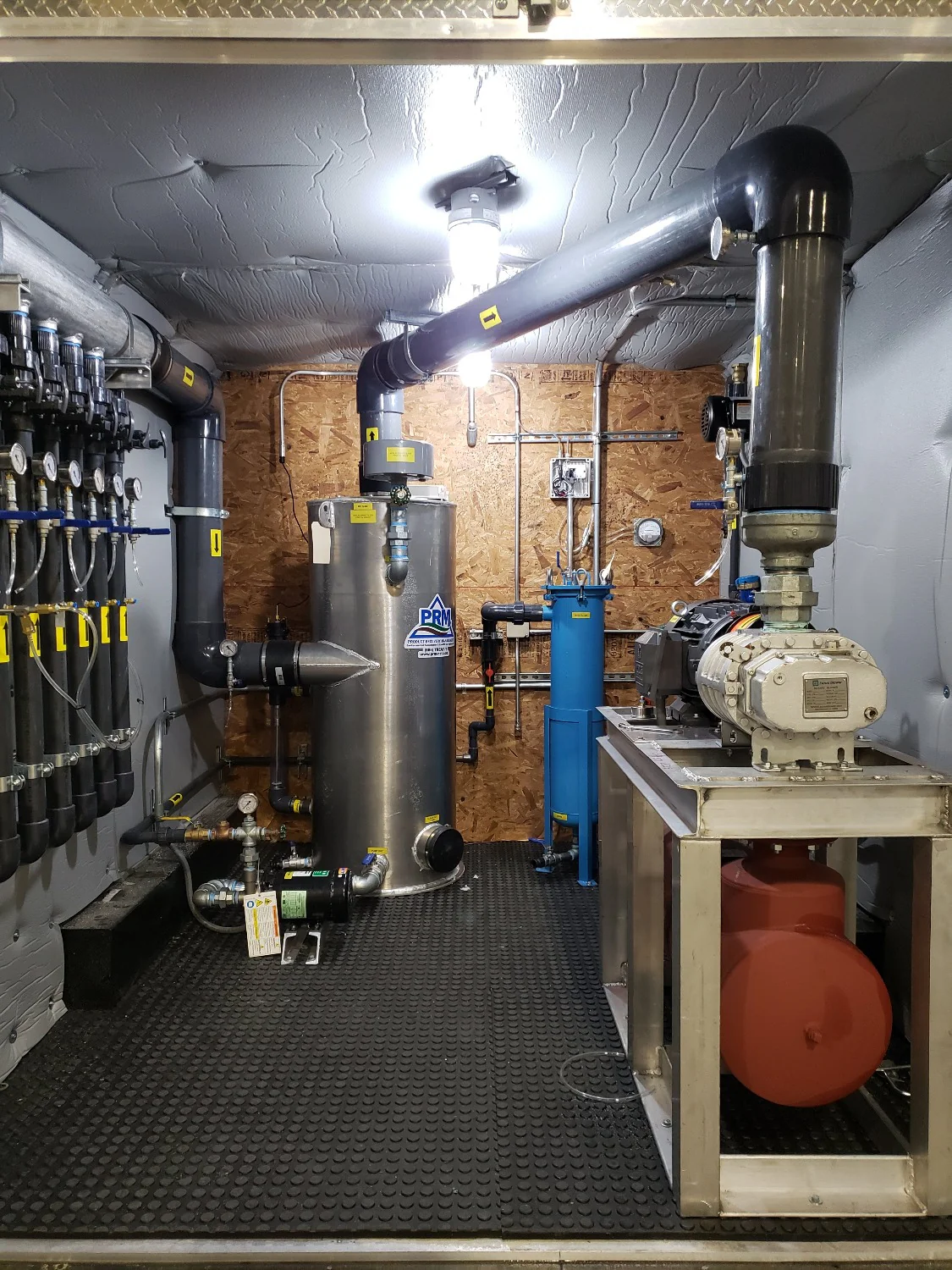

SVE and Air Sparge Extraction System - 8' x 16' enclosed trailer

 RT-5846 Datasheet

SVE Capabilities:

• ZZ4L Rotary Lobe Vacuum Blower
• 425 CFM @ 6”Hg (90” WC)
• 10 HP 230V 3ph TEFC motor

Air Sparge Capabilities:

• CA7L Rotary Claw Compressor
• 129 SCFM @ 24 psig
• 25 HP 230V 3ph TEFC motor
• (16) 1” Sparge Legs with Rotameters



Controls:

• NEMA 4/12 UL Listed 3rd Party Certified Control Panel
• PLC Controller with wireless connectivity and remote login
• SCADA full remote system control with data and event logging



System Rating:

• 120/208-230V, 3 phase, 200 Amps



Interior of Process room rated for Class 1,
Division 2 Hazardous Locations
