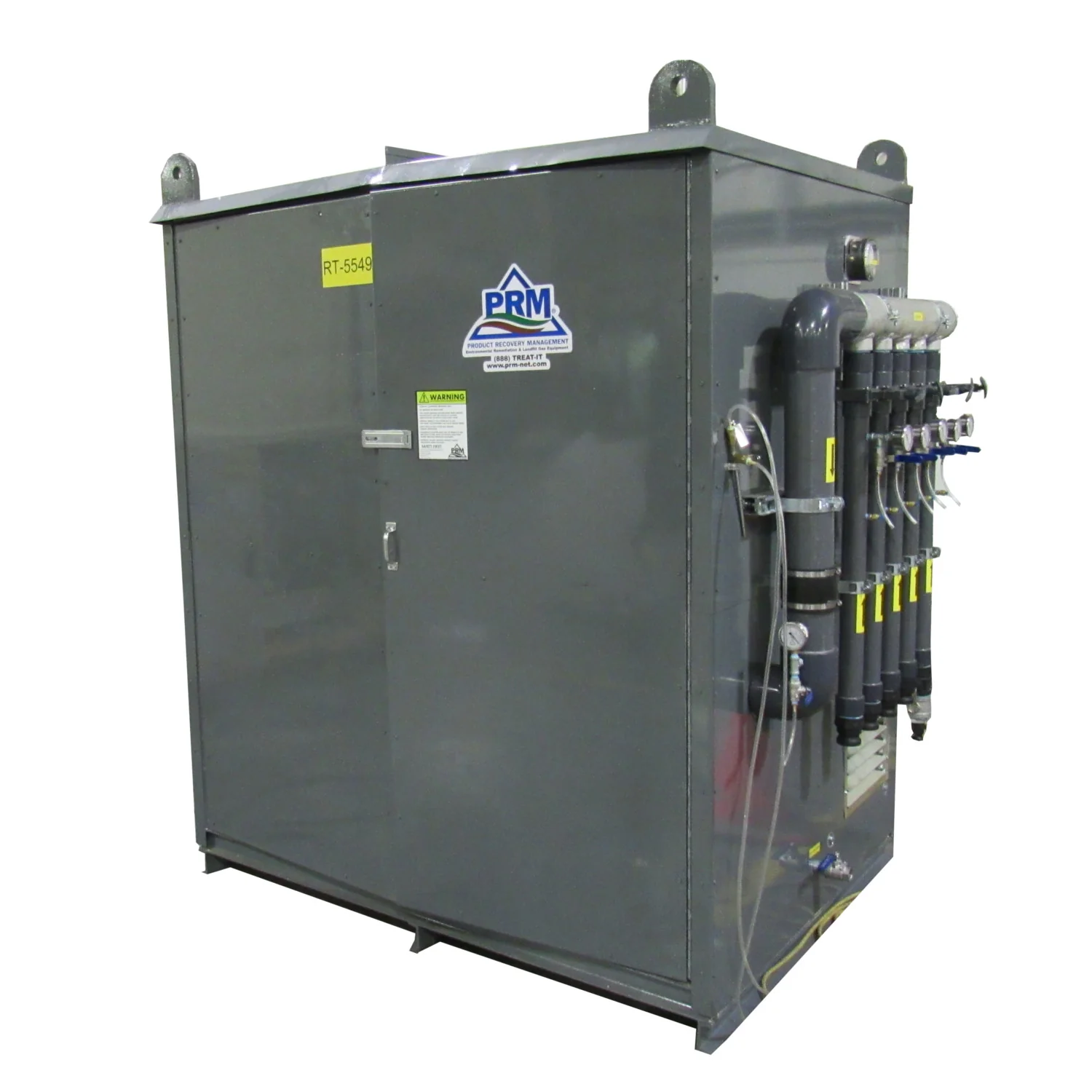

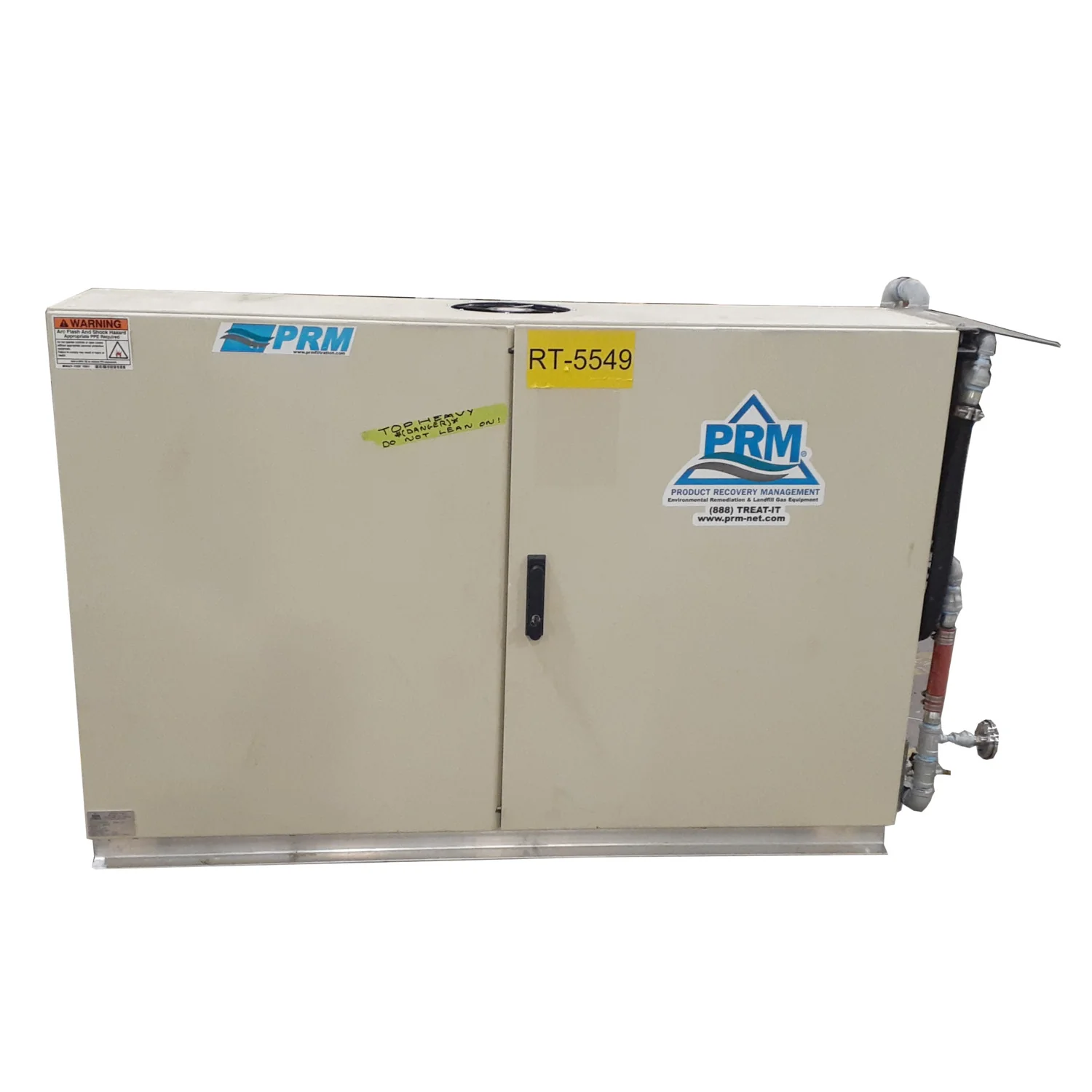

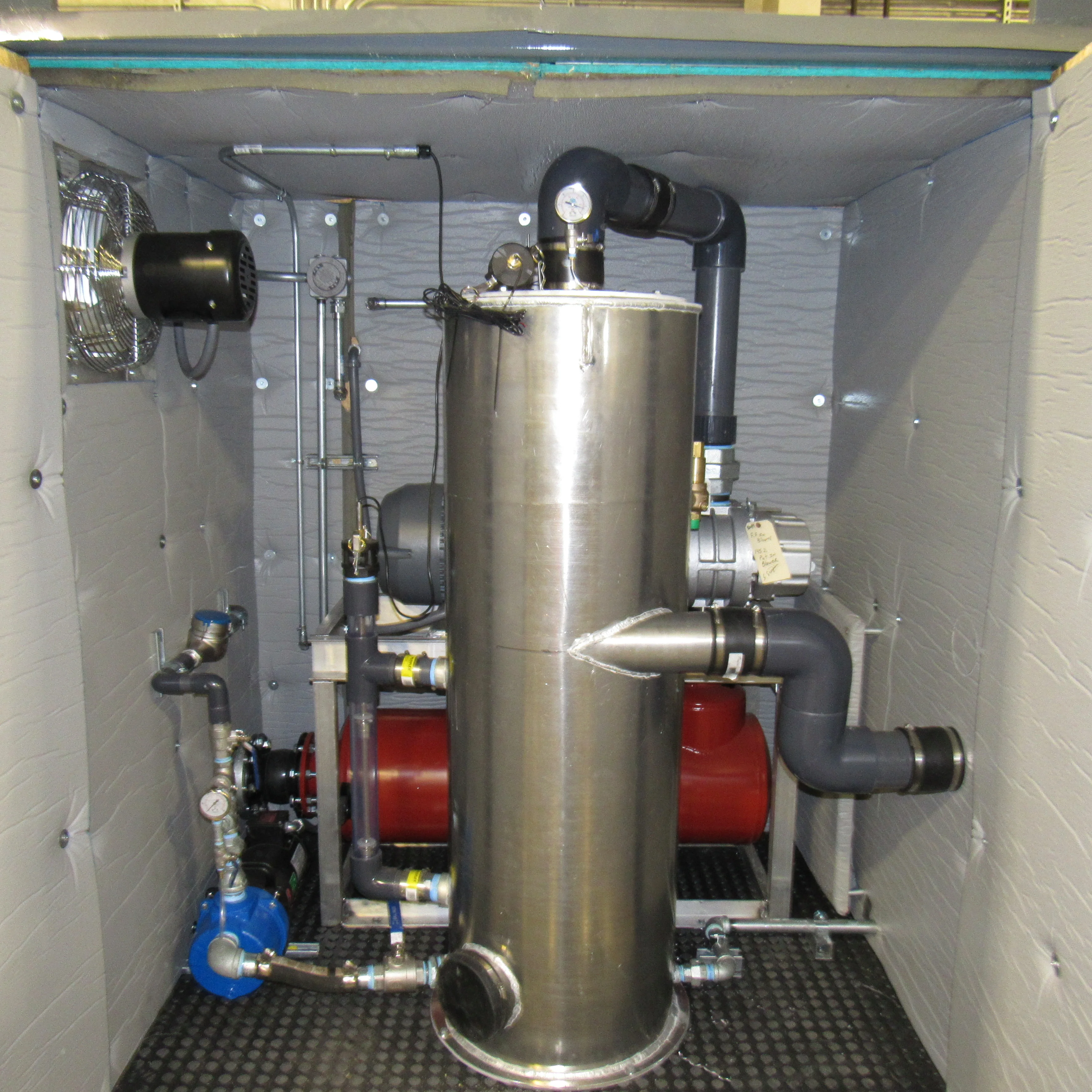

SVE and Air Sparge Extraction System -
Small Steel Enclosure

RT-5549 Datasheet

SVE Capabilities:

• ZZ5M Rotary Lobe Vacuum Blower
  165 CFM @ 12”Hg
• 15 HP motor
• MS-80 MS Tank
• VP-55 Carbon Vessels

Air Sparge Capabilities:

• (3) 2 HP 1600-MG Oil-Free Compressors
  13 CFM @ 78 psig
• HX 1240 Cooler



Controls:

• Siemens LOGO PLC with door mounted TDE display
• ABB ACS 355 Variable Frequency Drive
• Sensaphone Sentinel installed for telemetry
• Door mounted HOA Switches for starting
  SVE Blower and MS Pump
• System is 3rd Party Certified



System Rating:

• 120/230V, 3 phase, 200 Amps
