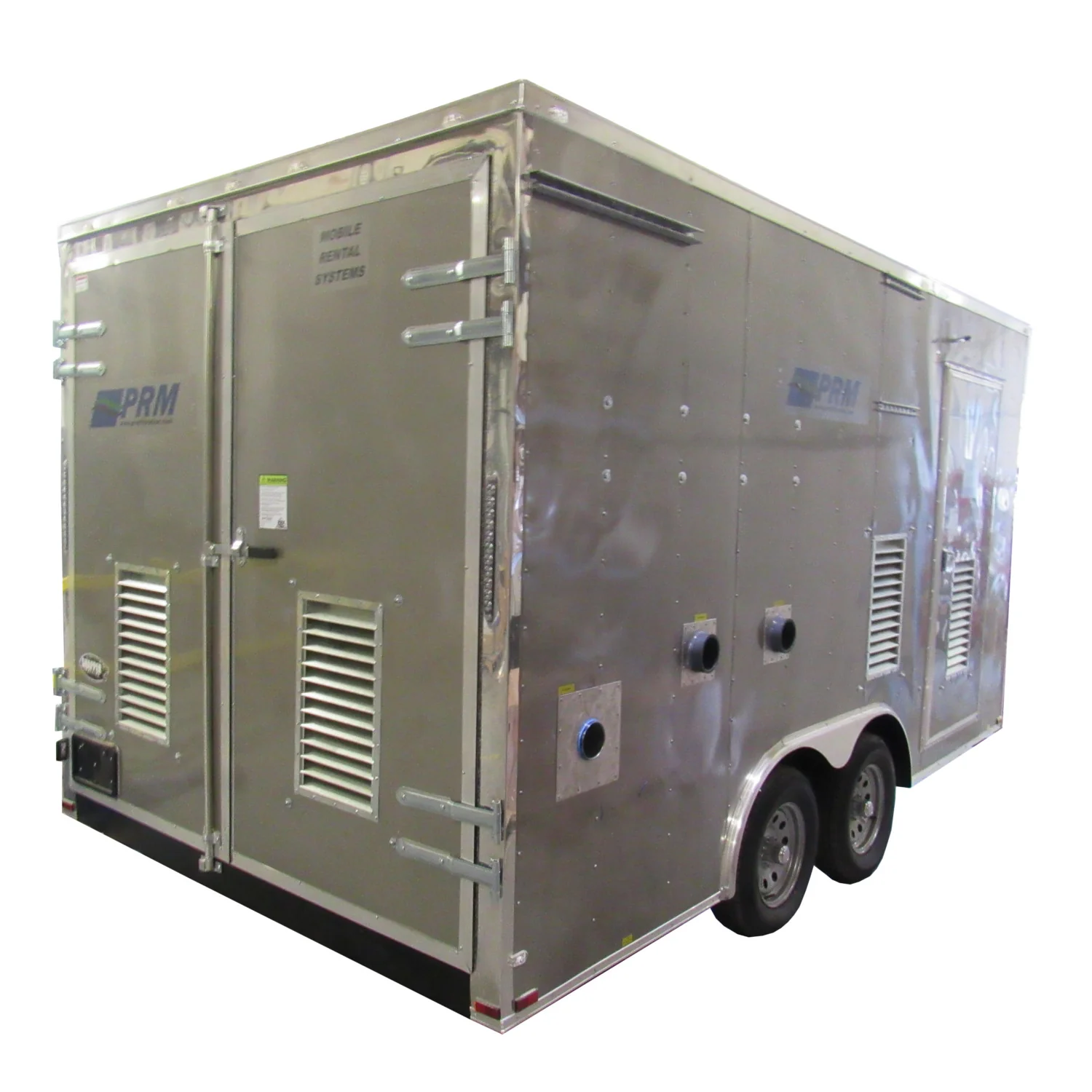

• SVE and Air Sparge Extraction System - 8' x 16' enclosed trailer

RT-5197 Datasheet

SVE Capabilities:

• 875 SCFM @ 61” WC Max

Air Sparge Capabilities:

• 70 SCFM @ 20 psig

SVE Package:

• 20 HP Ametek Rotron EN979 Blower
• (8) Leg SVE Manifold with PVC gate valves and sample ports
• >875 SCFM @ 61" WC
• MS-200 Aluminum Moisture Separator

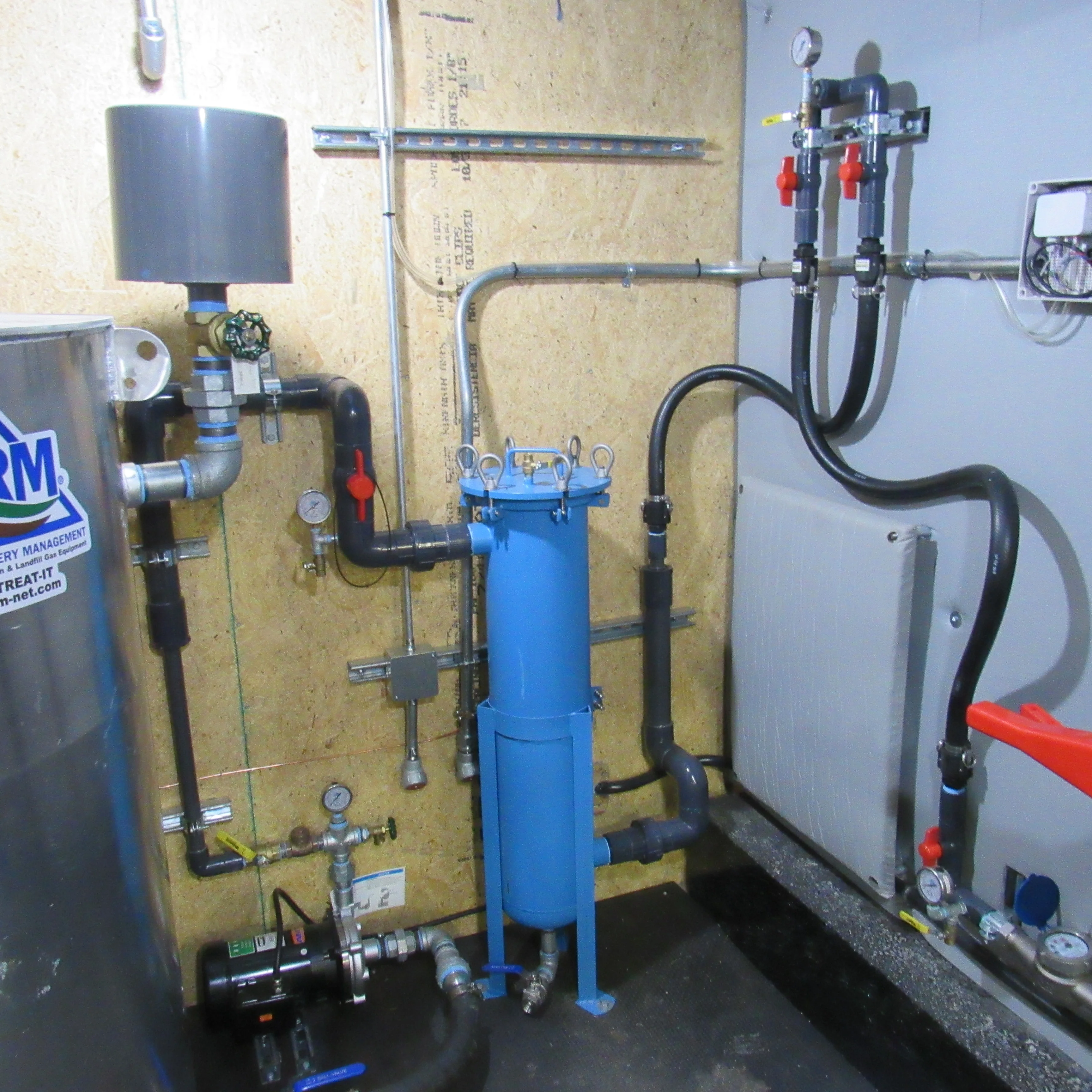

• #2 Bag Filter Housing and HP-90 Liquid Phase Carbon Vessel

Air Sparge System:

• Compressor bank of (12) Oilless Compressors, maximum pressure 30 psi
• PRM 0.5 HP AC-EX-XT-18 Aftercooler

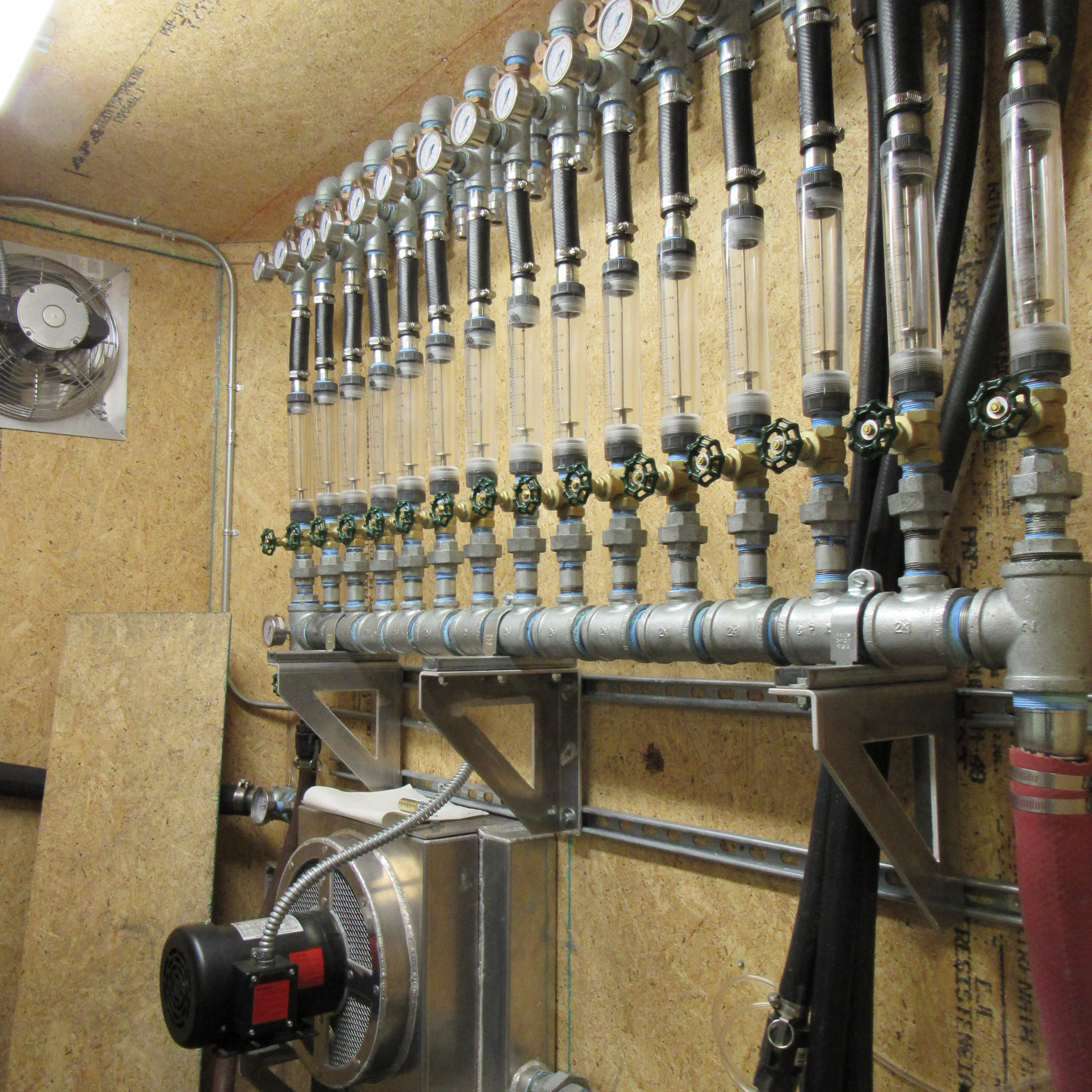

• (15)1” Leg Sparge Manifold with Rotameter
• Carbon Units
• Separate VP -2000 Vapor Phase Carbon Vessel

Controls:

• PLC Touchscreen with remote monitoring
  Interface with full SCADA remote system control and data and event logging

System Rating:

• UL Listed System
• 120/230V, 3 phase, 200 Amps
• NEMA 4 3rd Party Certified Control Panel with locking face panel
