We’ve done all the hard work for you!
PRM provides the highest quality Remediation systems in the industry, and this prepackaged AS/SVE System is functionally designed to perform for the life of your project.

Standard SVE Prepackaged System Datasheet

Features:

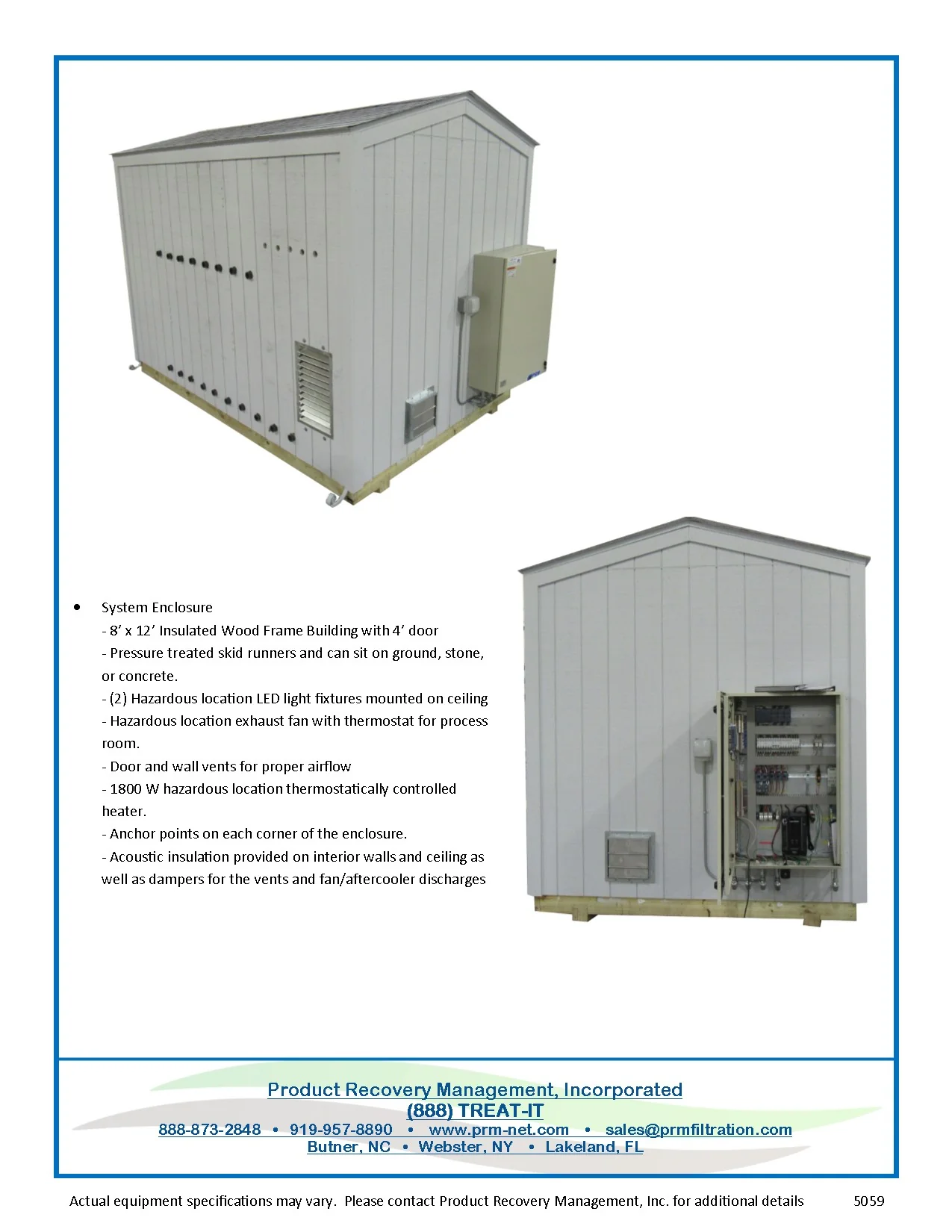

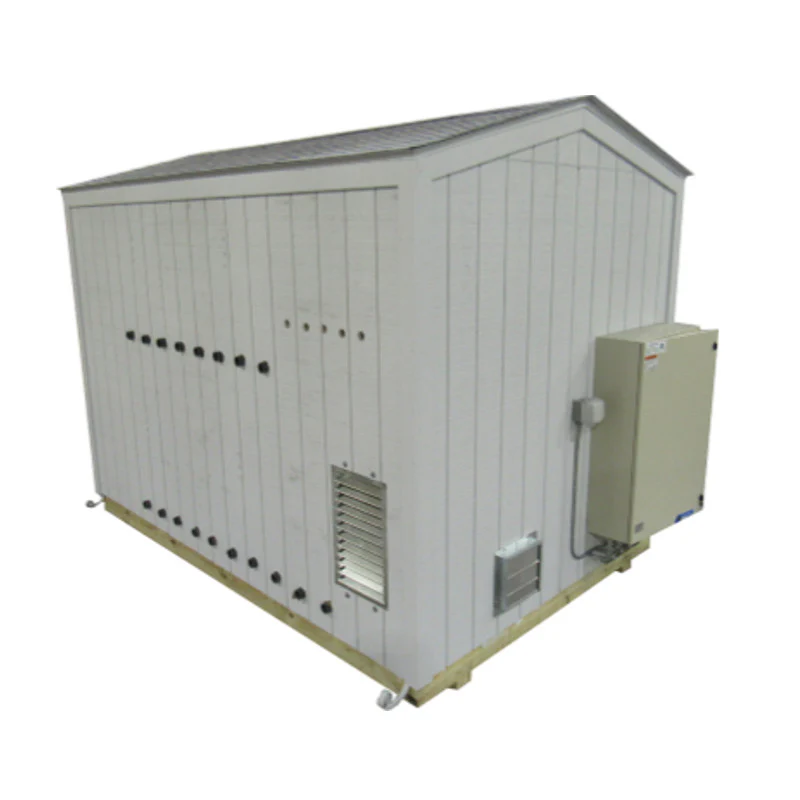

• 8’ x 12’ insulated building

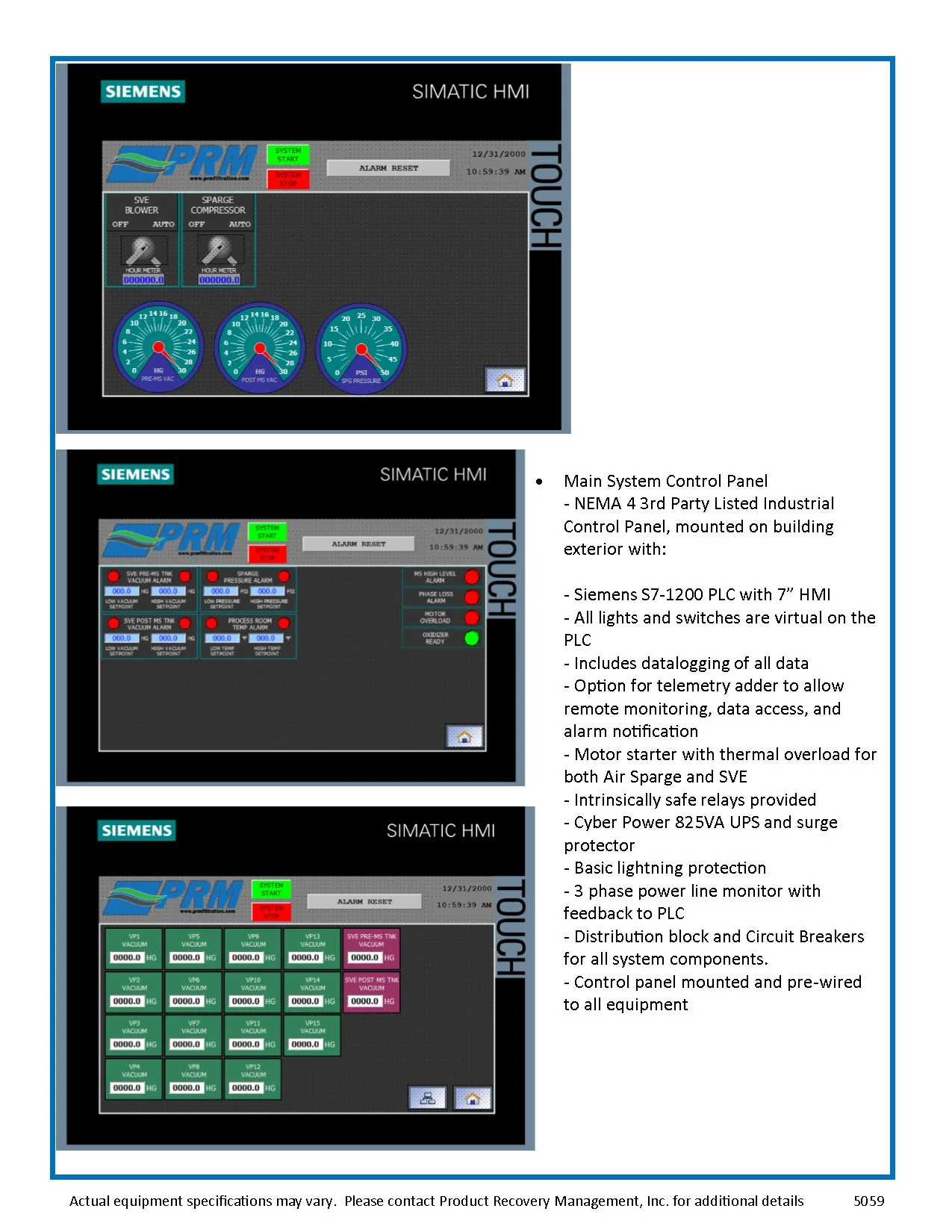

• NEMA 4 Control Panel; UL 508A and 698A Certifications

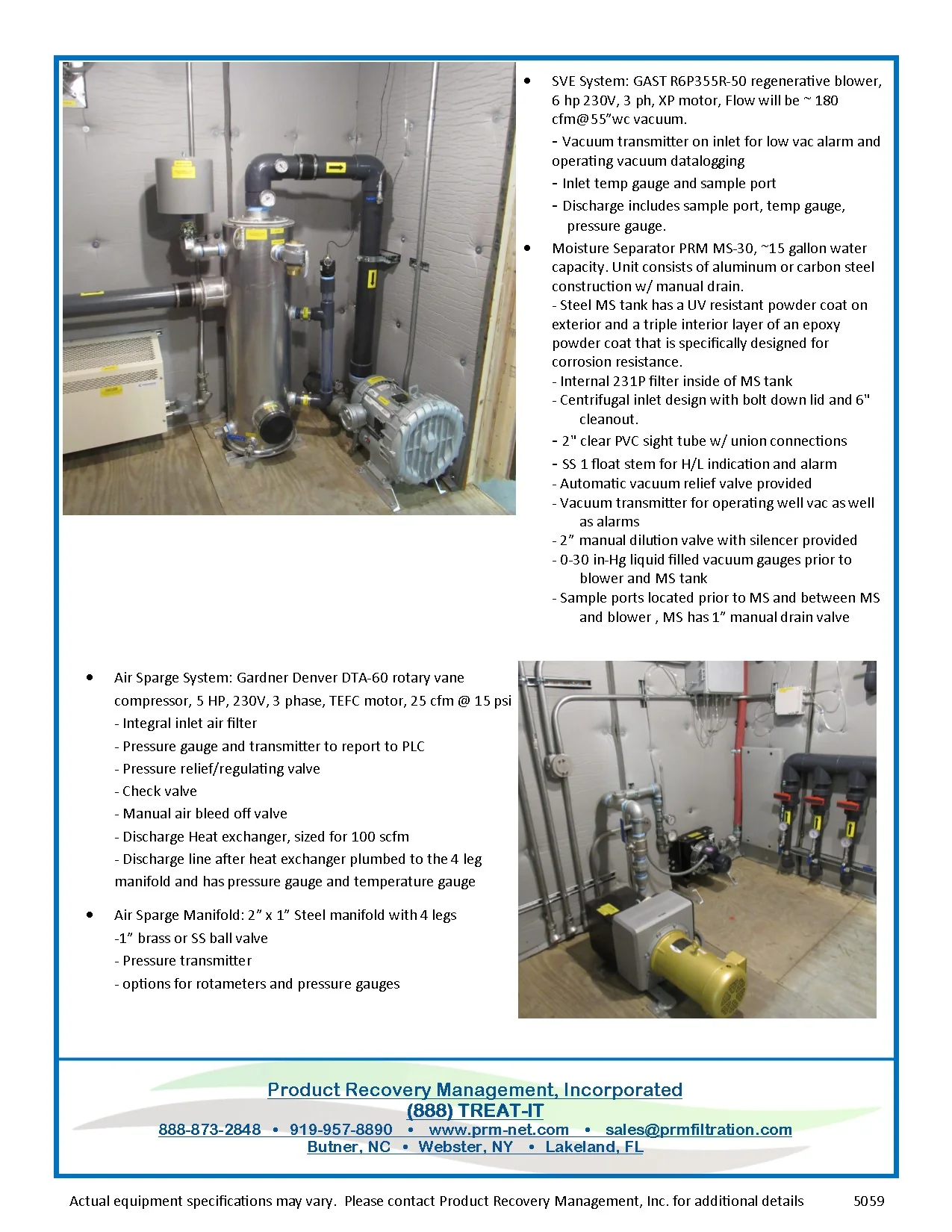

SVE System:

• Gast 6 hp Regenerative Blower, 230V, 3 ph, XP motor
  (Flow ~180 cfm @ 55”WC vacuum)

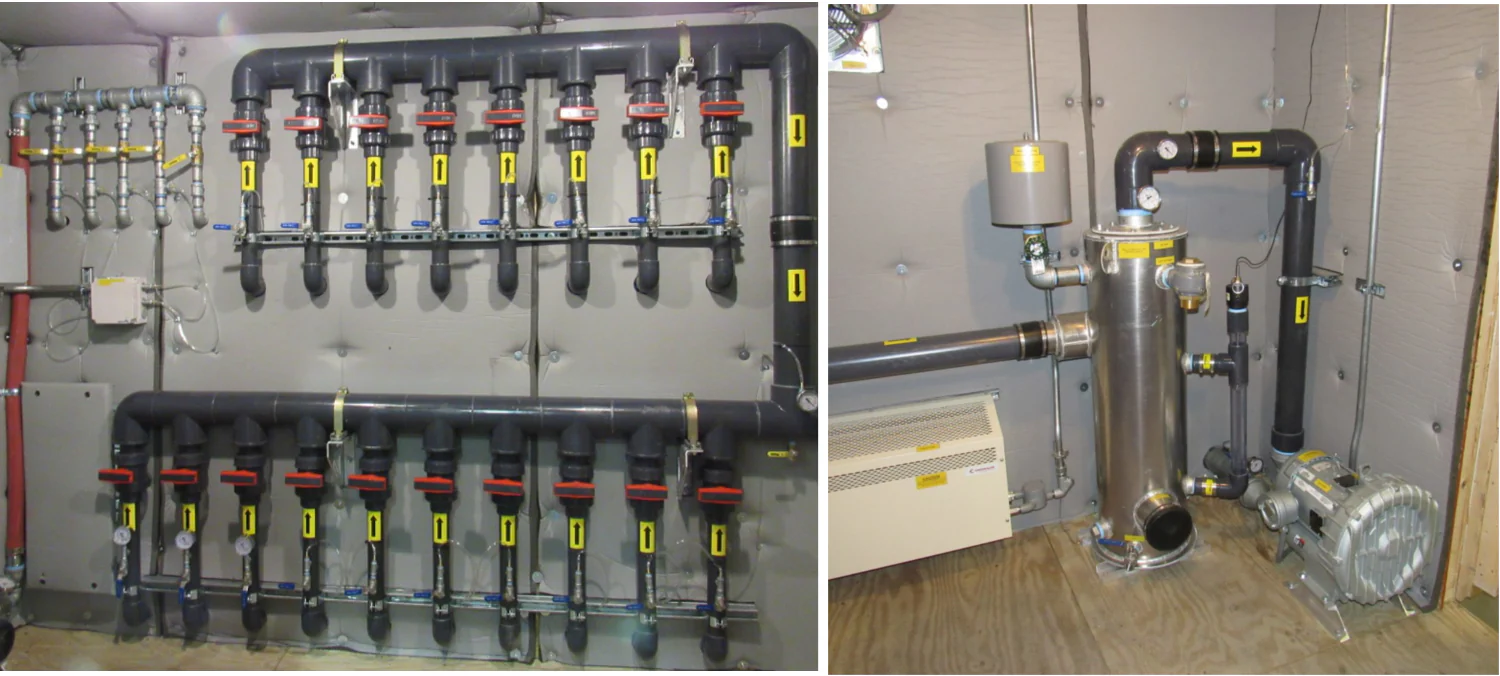

• Sch 80 PVC Inlet Manifold with 15 legs
• PRM MS-30 Moisture Separator, 15 gallon water capacity, Aluminum or Steel construction with clear site tube and float stem level controls

Air Sparge System:

• DTA-60 rotary vane compressor, 5 hp, 230V, 3 ph, TEFC motor,
  25 cfm @ 15 psi.
• Steel Sparge Manifold with 4 legs. Discharge Heat Exchanger



Rental Units may be in the field on long term lease and not readily available. Please contact us for more information about current system or equipment availability. 888-873-2848. Most Rental Systems ship by Freight or Custom Delivery. Pricing of rental units depends on the length of use and site requirements. Customized leases and terms allow you to meet specific project budgets or timelines. End of Lease purchase options are also available if you wish to retain the equipment.
