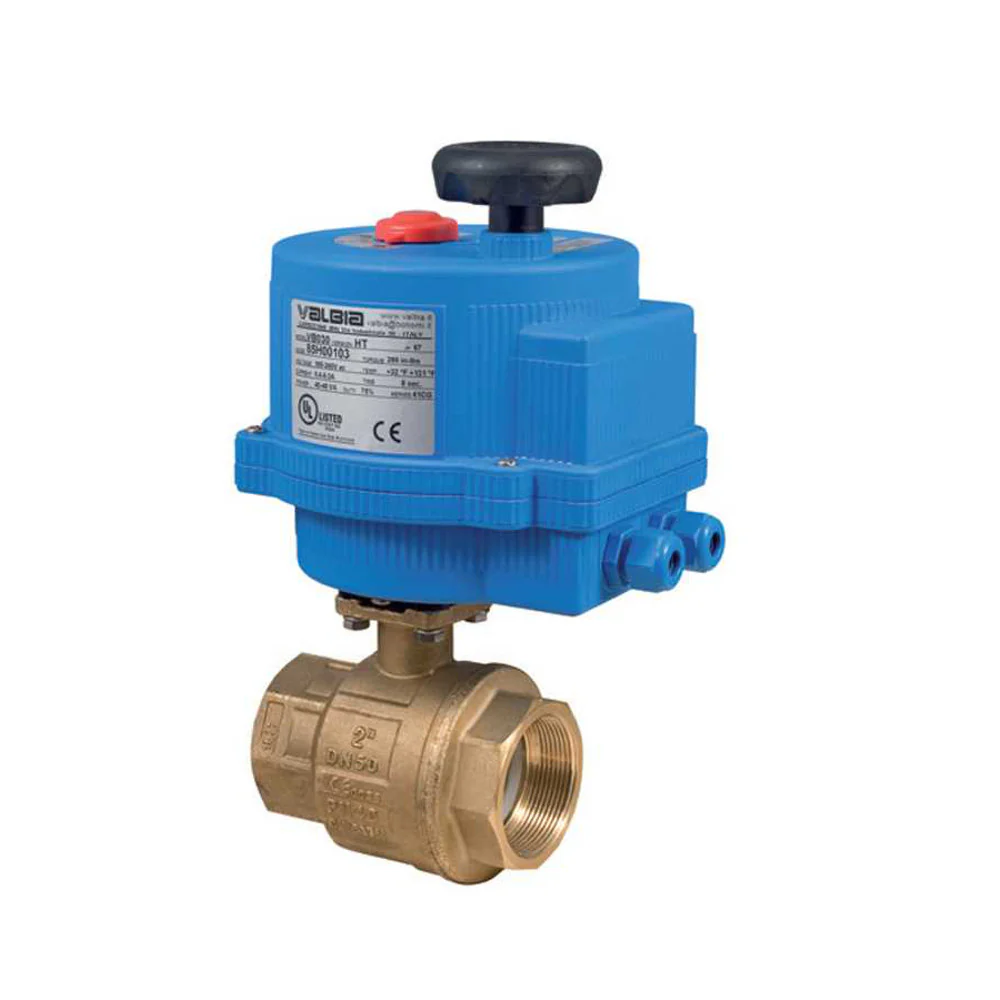

BONOMI 8E064-00 NPT BRASS BALL VALVE WITH PLASTIC ON/OFF ELECTRIC ACTUATOR, 100-240V - DIRECT MOUNT, 2-WAY, FULL PORT

The 8E064 series is a light industrial package featuring a NEMA 4,4X VB series actuator
directly coupled to a low torque, 600 psi, full port 250N or 253N ball valve. This series package can be installed either vertically, or horizontally due to the lightweight of the actuator and direct mounting to the ball valve.
The ball valve with its double O-ring, self temperature adjustment stem sealing allows high cycle life and zero stem packing adjustment required. The VB actuator also features a 75% duty cycle, U.L. certified motor, with two additional limit switches, a heater and a thermostat, all contained in a Technopolymer housing.

Bonomi 8E064 Datasheet

ACTUATOR FEATURES
• NEMA 4, 4X Housing
• 12V/24V AC/DC and 100-240V AC  Models Available
• ISO 5211, F03/F05 base with 11mm  female drive
• VB015 -12/24V AC - 50% Duty Cycle
• VB030-VB110 - 12/24V DC and 100-240VAC - 75% Duty Cycle
• High-Strength, Impact Resistant IP67  Technopolymer Housing
• Temperature Range -4°F to 131°F
• PG11 Electrical Connection/Optional
• 1/2” Conduit

VALVE FEATURES
• Brass
• Full Port, Sizes 1/4” to 1-1/4”
• ISO 5211 pad and square stem
• Pressure rating to 600 WOG
• Low torque design with back up O-ring seats
• Double O-ring stem seal design for extended cycle life
• 100% electronically tested in the open  and closed position@80 Psi

NOT for potable water use.
