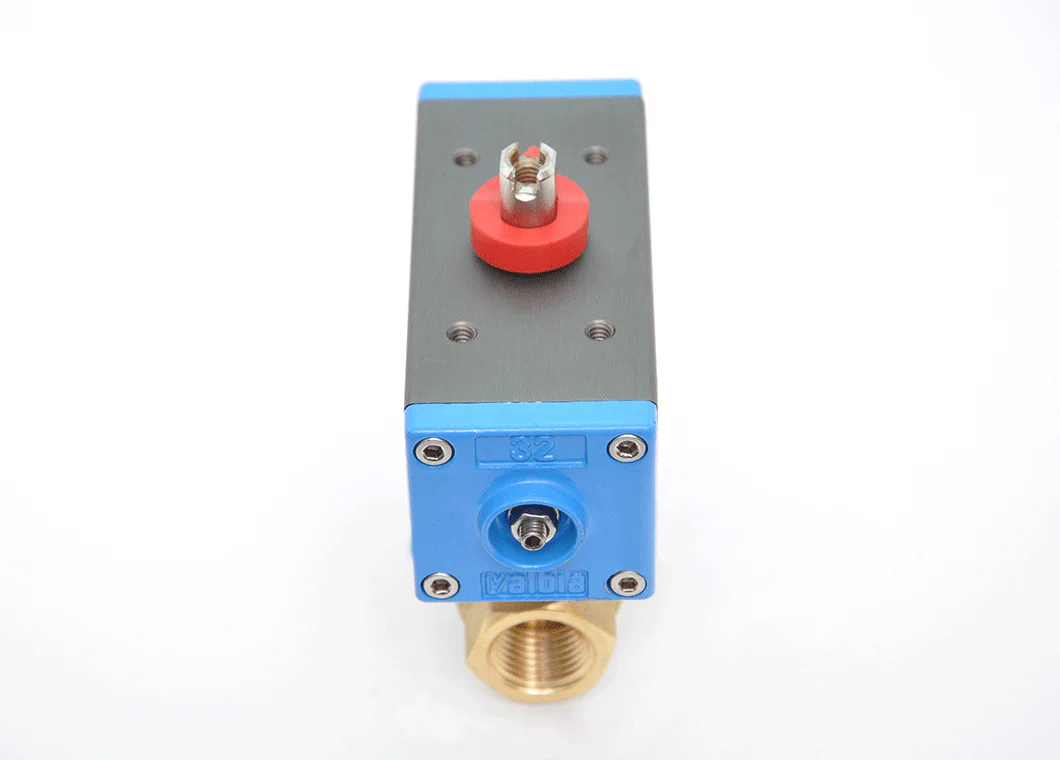

BONOMI 8P0080LF NPT BRASS BALL VALVE WITH DOUBLE ACTING PNEUMATIC ACTUATOR - DIRECT MOUNT, 2-WAY, FULL PORT

The Bonomi 8P0080LF Lead Free ball valve is available in sizes ranging from 1/4 inch to 4 inches. The valve is built with a lead free brass body along with a chrome-plated brass ball. PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with a double acting actuator.

Features:

• Pressure Rating: 600PSI WOG - 150 WSP - 1/4” to 4”
• Connection Size: 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
• Sized For: 80 PSI of available air pressure
• Fail Position: None (Fail in Place)
• Connection Type: Threaded (FNPT x FNPT)
• Actuator: Double Acting
• Body: Brass
• Seat: PTFE
• Ball: Chrome-Plated Brass
• Max Process Temperature: 366° F
• Stem: Brass, Blowout Proof

 NOTE: These are not a stock item, they go into production when ordered, so usually there is a 1-2 week lead time.
