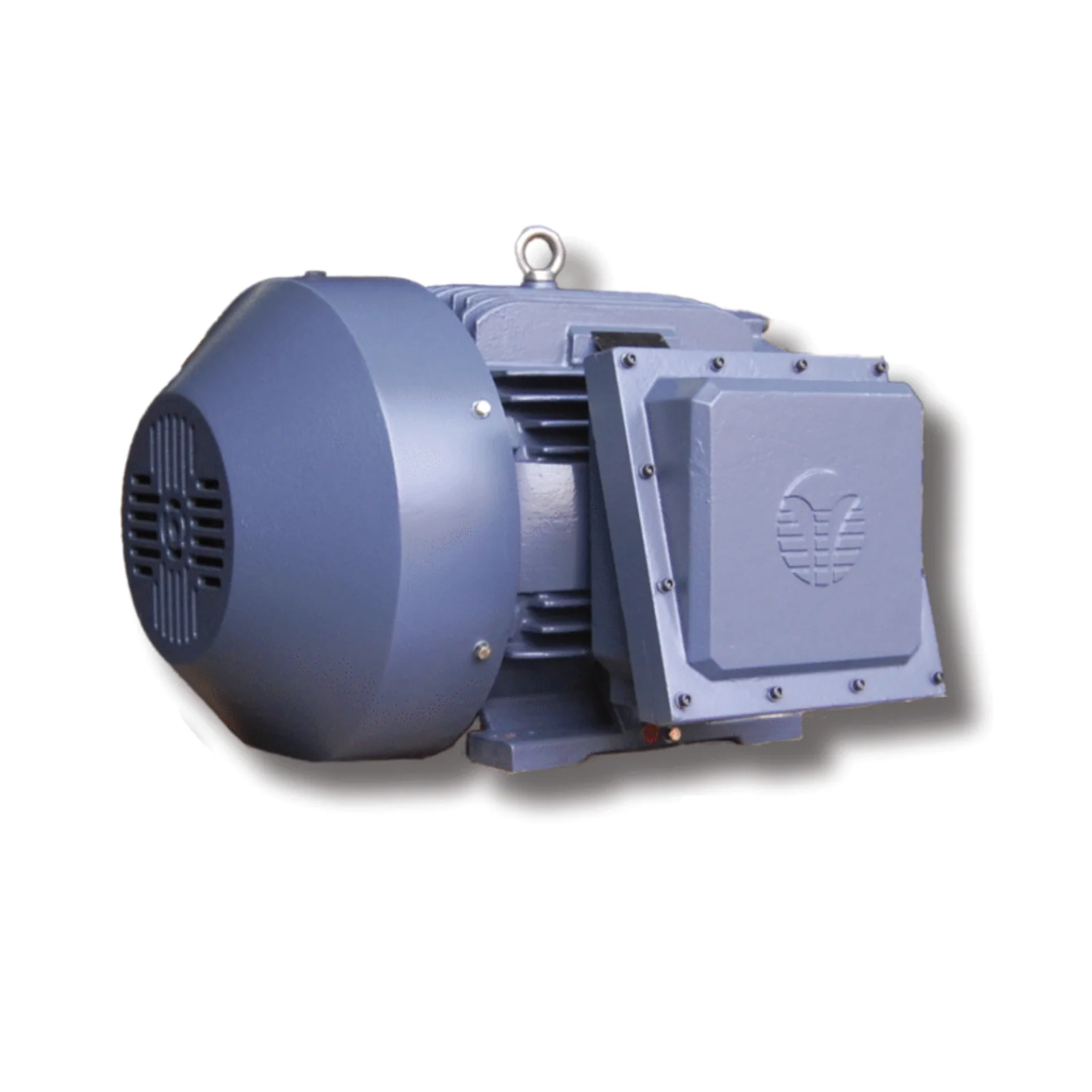

TechTop 250 HP NEMA Premium Motors, Explosion Proof
TechTop 250 HP NEMA Premium Motors, Explosion Proof
| TECHTOP PART NUMBER | MOTOR GROUP | FRAME | HP | POLES | RPM | VOLTAGE |
|
XP3-449TS-2-250 |
XP | 449TS | 250 | 2 | 3600 | 230/460V |
|
XP3-449T-4-250 |
XP | 449T | 250 | 4 | 1800 | 230/460V |
|
XP3-449TSC-2-250 |
XP | 449TSC | 250 | 2 | 3600 | 230/460V |
|
XP3-449TC-4-250 |
XP | 449TC | 250 | 4 | 1800 | 230/460V |
Standard Features:
- NEMA Premium
- 50°C Ambient Temperature Rated
- Certified for Hazardous Location
- IP 55 Ingress Protection
- Inverter Rated- 4:1 Constant Torque (MG1 Part 31)
- 1.15 Service Factor
- Dual Oversized Bearings with Labyrinth Seal
- Full Cast Iron Construction
- Vacuum Impregnated Stator
- Color Coded Lead wires
- Regreaseble Bearings 254T and larger
- Hazard Location Cert. Condensate Drains
- Conduit Box is 90° Rotatable
- IEEE 45 Above/Below Deck and Boiler Room Cert.
- Zerk Regreasable Bearings
- Temp Code T4 ≤ 326T Frame/ Temp Code T3C ≥ 364T
- Class 1, Division 1 Groups C, D
- Class 2, Division 1 Groups F, G
- Class 1-Zone 1/20/21-Group IIA/IIB Compliant
- 575 Volt Available
- C-Flanges Available ( "TC" in Part # )
Select HP
Select Type
Select RPM
From $12,021.00
Original: $40,069.99
-70%TechTop 250 HP NEMA Premium Motors, Explosion Proof—
$40,069.99
$12,021.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TechTop 250 HP NEMA Premium Motors, Explosion Proof
| TECHTOP PART NUMBER | MOTOR GROUP | FRAME | HP | POLES | RPM | VOLTAGE |
|
XP3-449TS-2-250 |
XP | 449TS | 250 | 2 | 3600 | 230/460V |
|
XP3-449T-4-250 |
XP | 449T | 250 | 4 | 1800 | 230/460V |
|
XP3-449TSC-2-250 |
XP | 449TSC | 250 | 2 | 3600 | 230/460V |
|
XP3-449TC-4-250 |
XP | 449TC | 250 | 4 | 1800 | 230/460V |
Standard Features:
- NEMA Premium
- 50°C Ambient Temperature Rated
- Certified for Hazardous Location
- IP 55 Ingress Protection
- Inverter Rated- 4:1 Constant Torque (MG1 Part 31)
- 1.15 Service Factor
- Dual Oversized Bearings with Labyrinth Seal
- Full Cast Iron Construction
- Vacuum Impregnated Stator
- Color Coded Lead wires
- Regreaseble Bearings 254T and larger
- Hazard Location Cert. Condensate Drains
- Conduit Box is 90° Rotatable
- IEEE 45 Above/Below Deck and Boiler Room Cert.
- Zerk Regreasable Bearings
- Temp Code T4 ≤ 326T Frame/ Temp Code T3C ≥ 364T
- Class 1, Division 1 Groups C, D
- Class 2, Division 1 Groups F, G
- Class 1-Zone 1/20/21-Group IIA/IIB Compliant
- 575 Volt Available
- C-Flanges Available ( "TC" in Part # )
