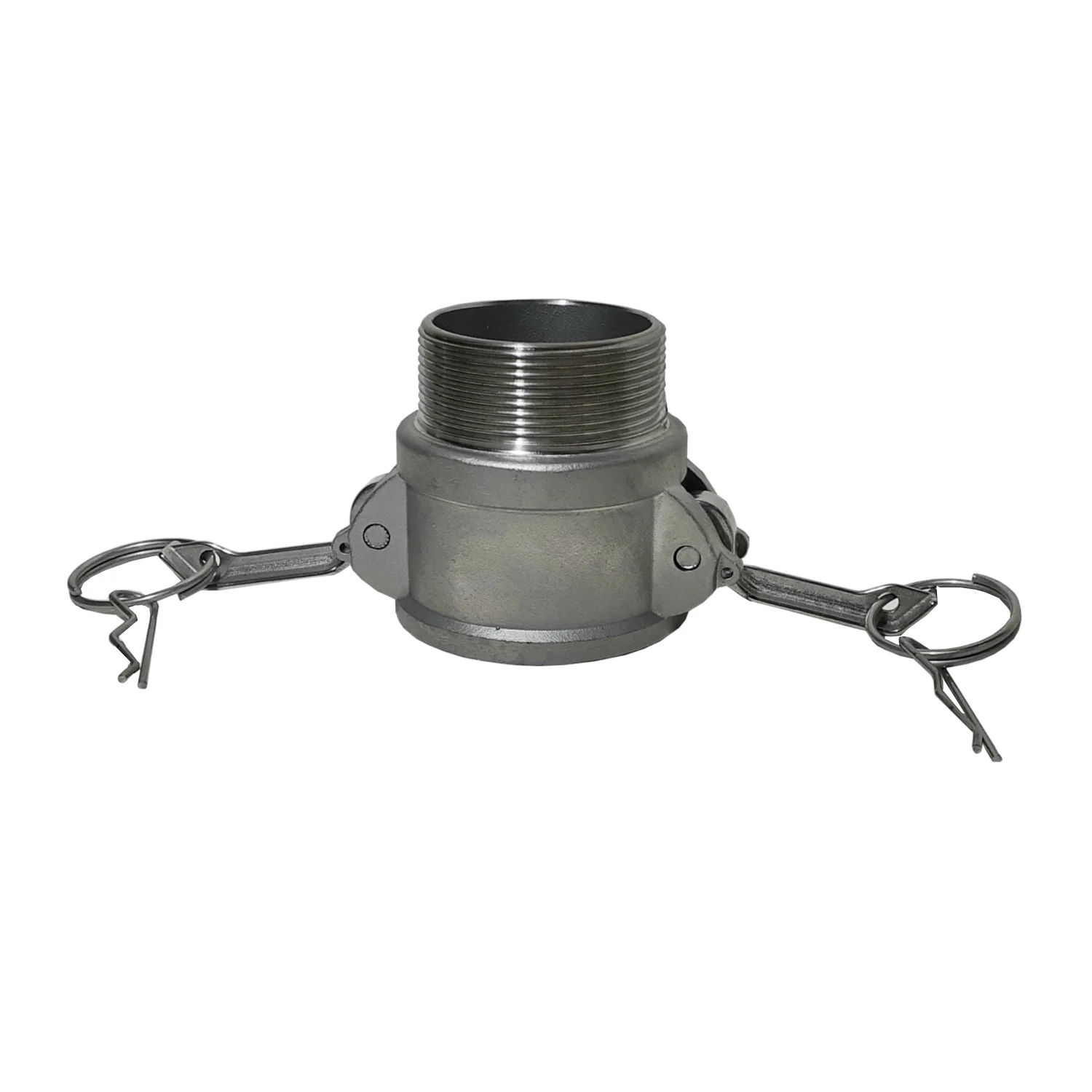

CAM LOCK COUPLER - 304 STAINLESS STEEL TYPE B FEMALE COUPLER / MALE NPT

Stainless Steel Camlock Coupling Type B is used to pair with male coupler such as Type A, Type E and Type F couplers. Camlock fittings work well in dry bulk and low pressure liquid applications. The adapter and coupler are joined together after the contact is made with the Nitrile gasket. Then close the cam arms simultaneously to produce a uniform seal against the gasket.

• Female cam coupler on one end for connecting to a male adapter and male NPT threads on the other for connecting to a female NPT connection
• 304 Stainless Steel for resistance to most chemicals, dimensional stability, and sterilization.
• Maximum operating pressure (@70° F): 3/4 inch - 2 inch : 250 psi
• Maximum Temperature: 250° F

• Gasket Material: NBR
• Available in 3/4', 1', 1-1/4', 1-1/2", 2'

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
