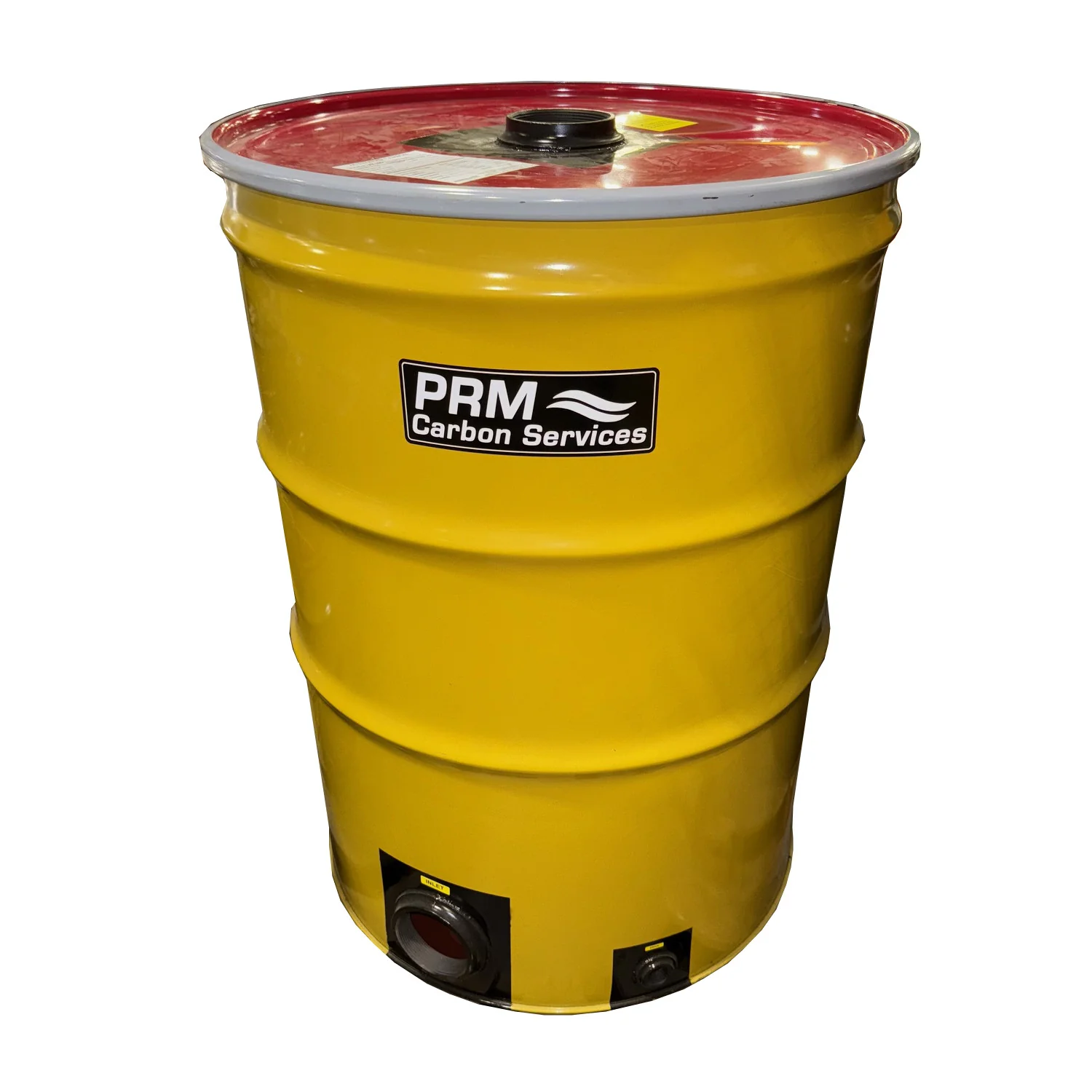

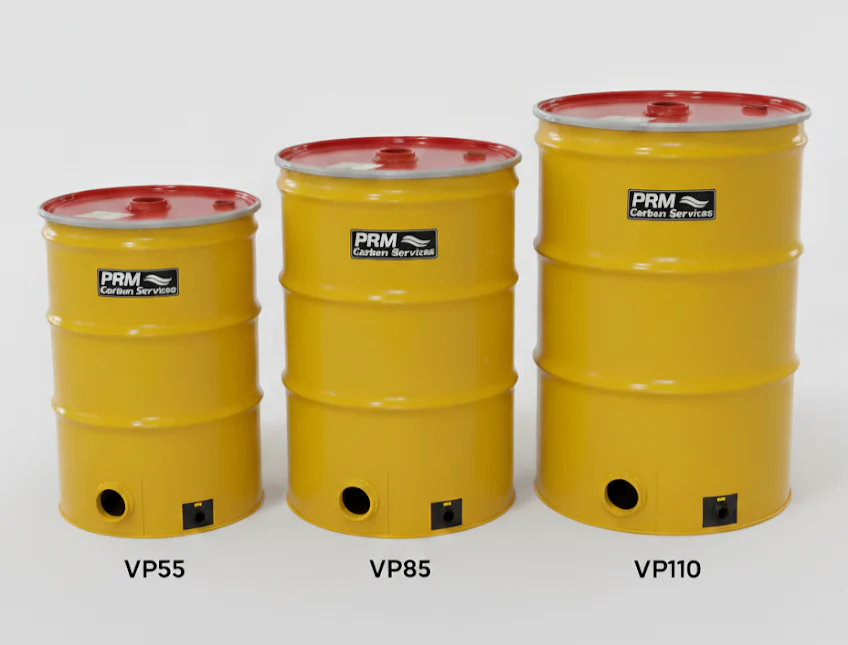

CARBON UNIT - VP55 VAPOR PHASE CARBON UNIT

APPLICATIONS:

SVE and AST vapor effluent remediation for VOC’s.

STANDARD SPECIFICATIONS:

VP-55: 24” Diameter x 35” Tall
up to 190 lbs Carbon
200 scfm Max. Flow
4 Inch Inlet/Outlet Standard
Dry Weight: 240 lbs

• False bottom allows for even distribution, lower pressure drop, and no channeling
• Open top drum allows for easy carbon access and change-out
• Custom inlet and outlet available in sizes between 2” and 6” FNPT
• Maximum pressure is 2 psi.

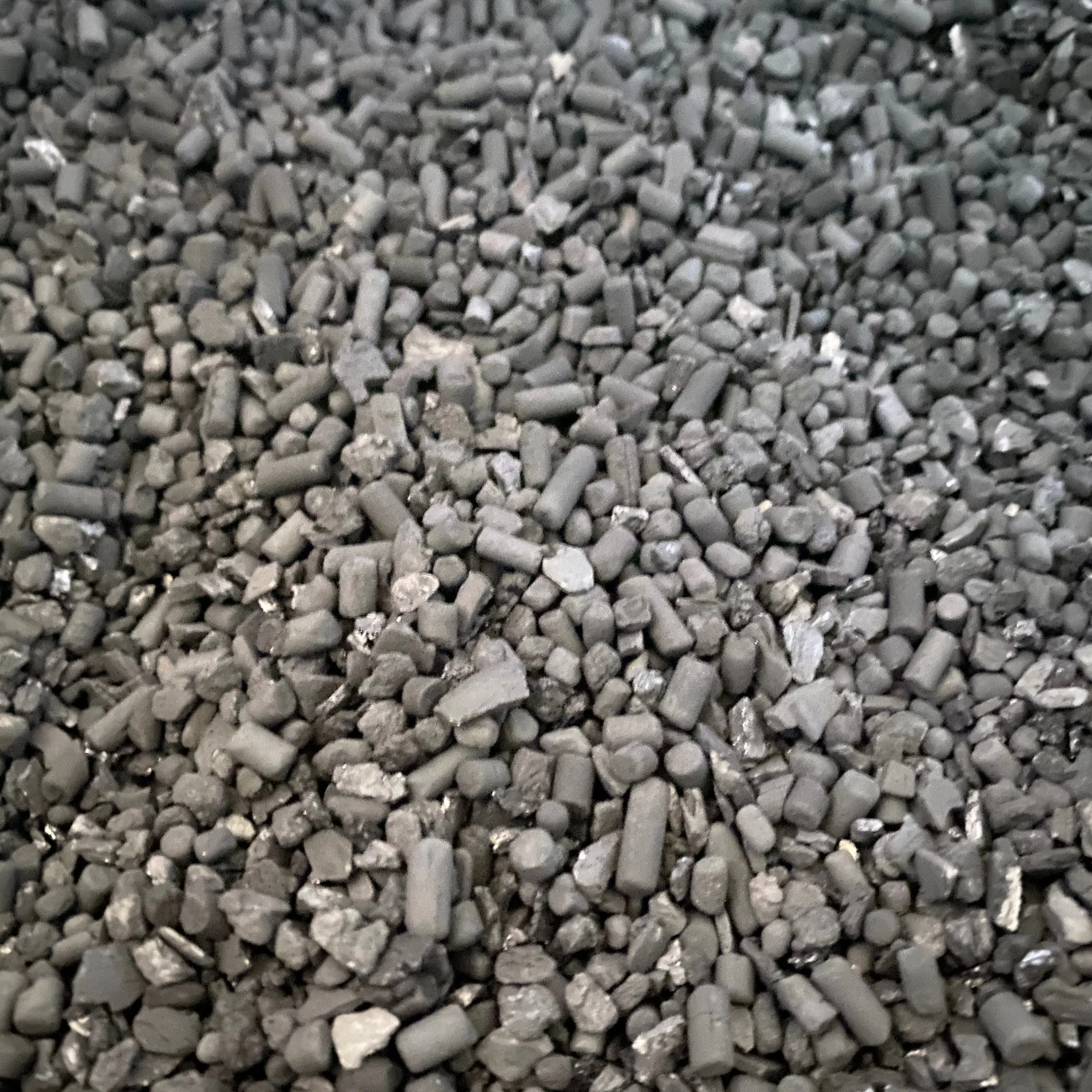

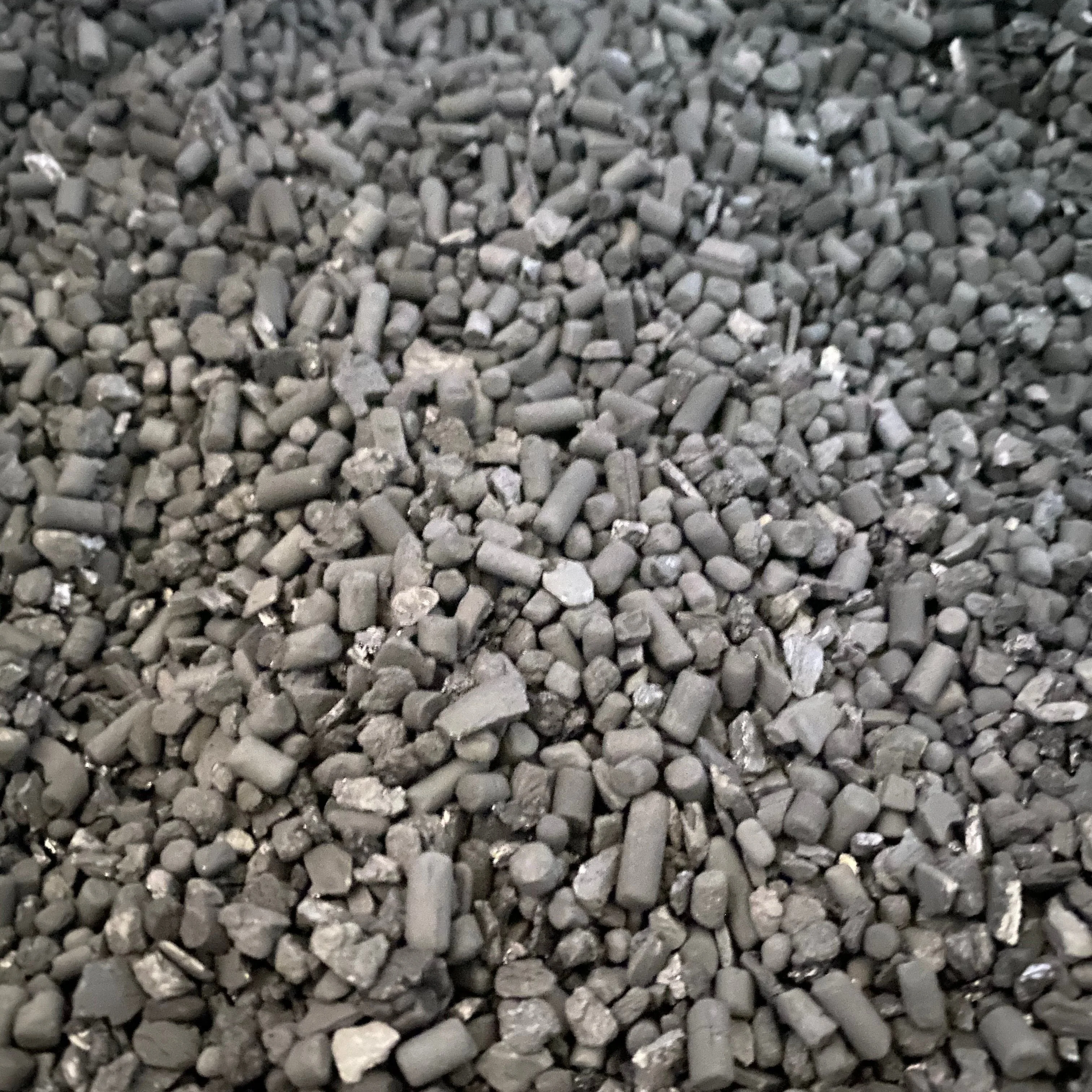

• Virgin or Reactivated Carbon for High Efficiency and Cost Effectiveness



AVAILABILITY:

Manufactured item, please allow up to 2-4 weeks if purchase exceeds inventory.

Shipping: Due to the nature of the product, all carbon vessels must ship via motor freight.

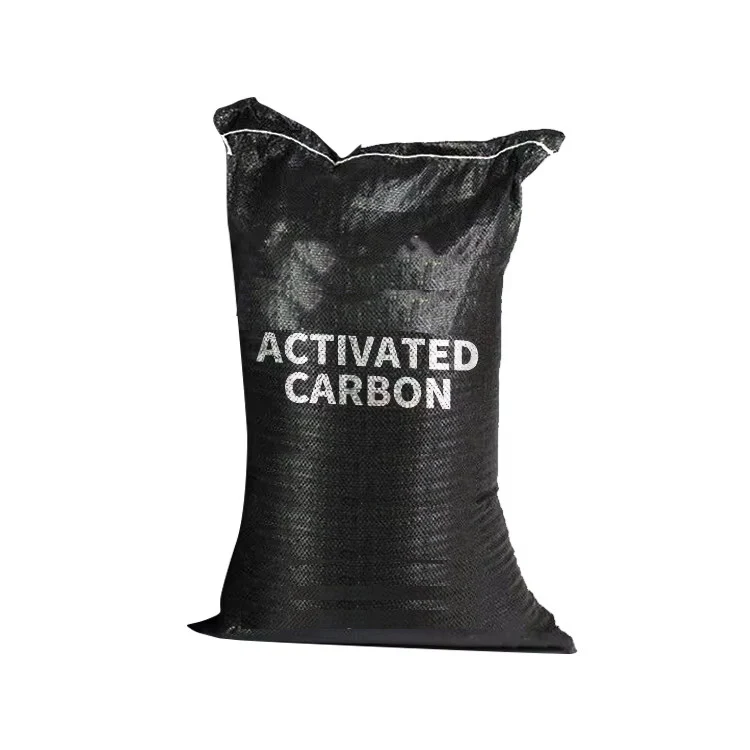

PRM offers standardized, pre-engineered systems, or can customize a carbon system to specific project site requirements. PRM can also supply virgin and/or reactivated liquid phase or vapor phase Granular Activated Carbon for all of your environmental remediation projects. Ask about carbon change out service for existing systems.
