PRM 304 Stainless Steel 4 Cartridge Filter Housing, Uses 20 Inch Cartridges, 2 Inch NPT In/Out

Product image 1

1 / 4

PRM 304 Stainless Steel 4 Cartridge Filter Housing, Uses 20 Inch Cartridges, 2 Inch NPT In/Out

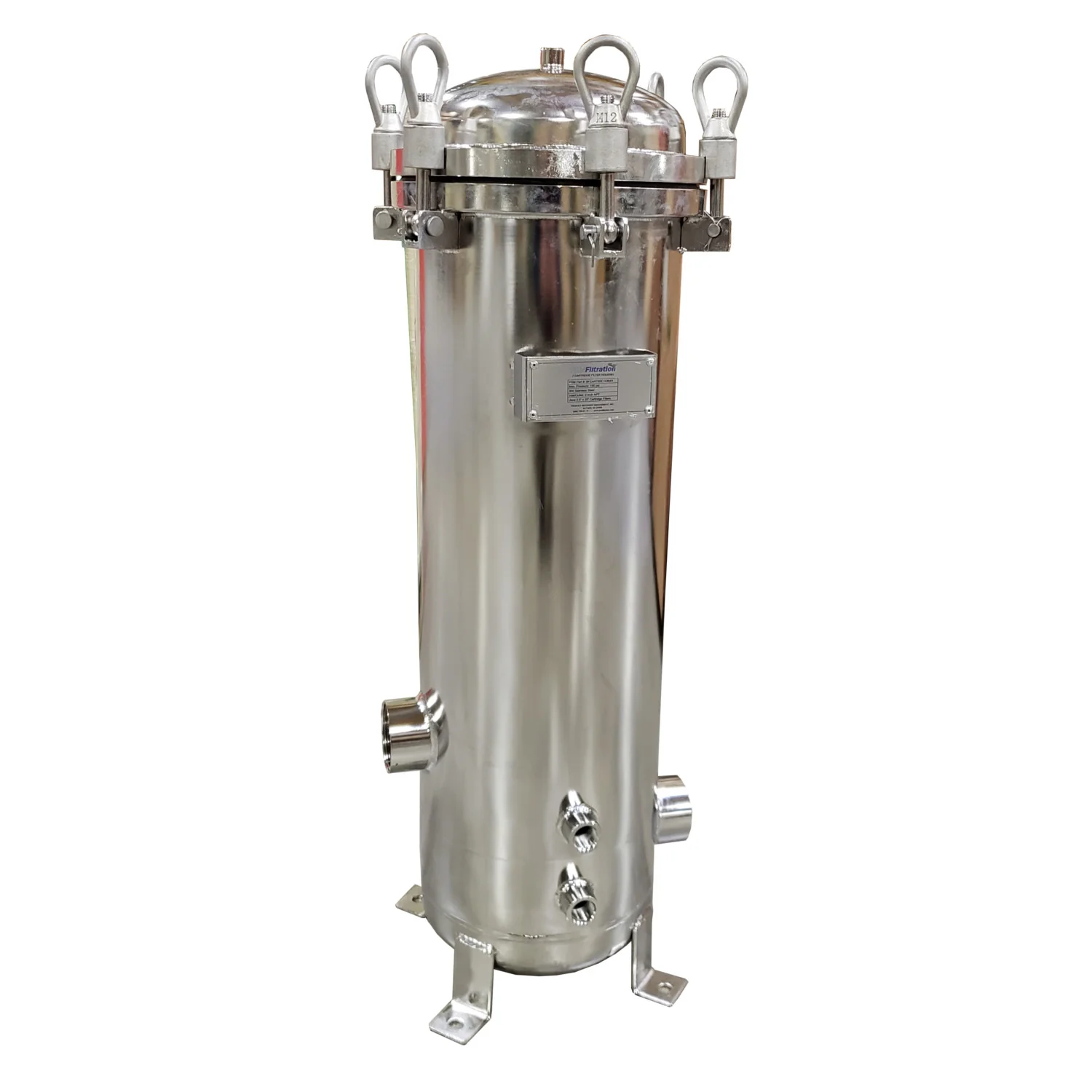

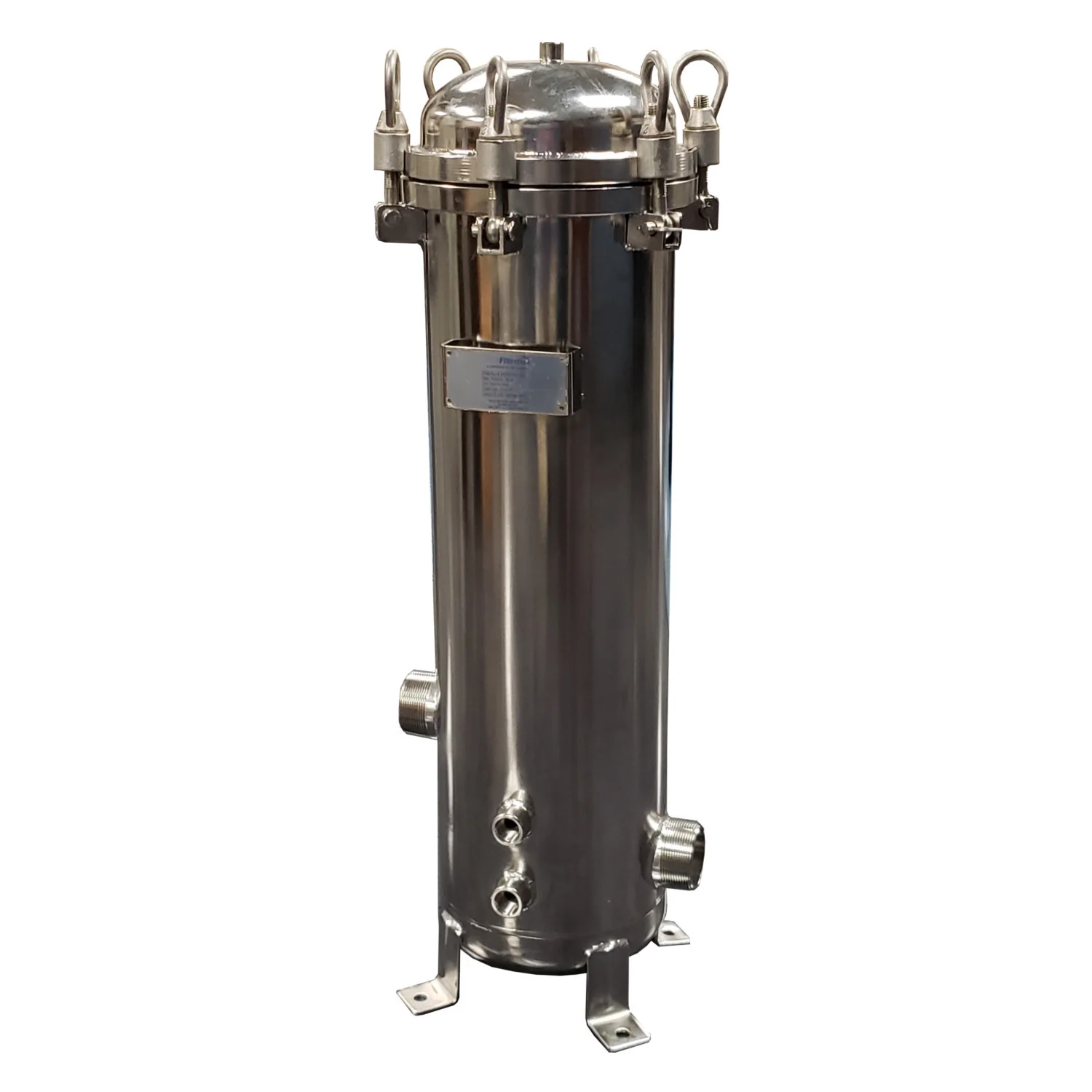

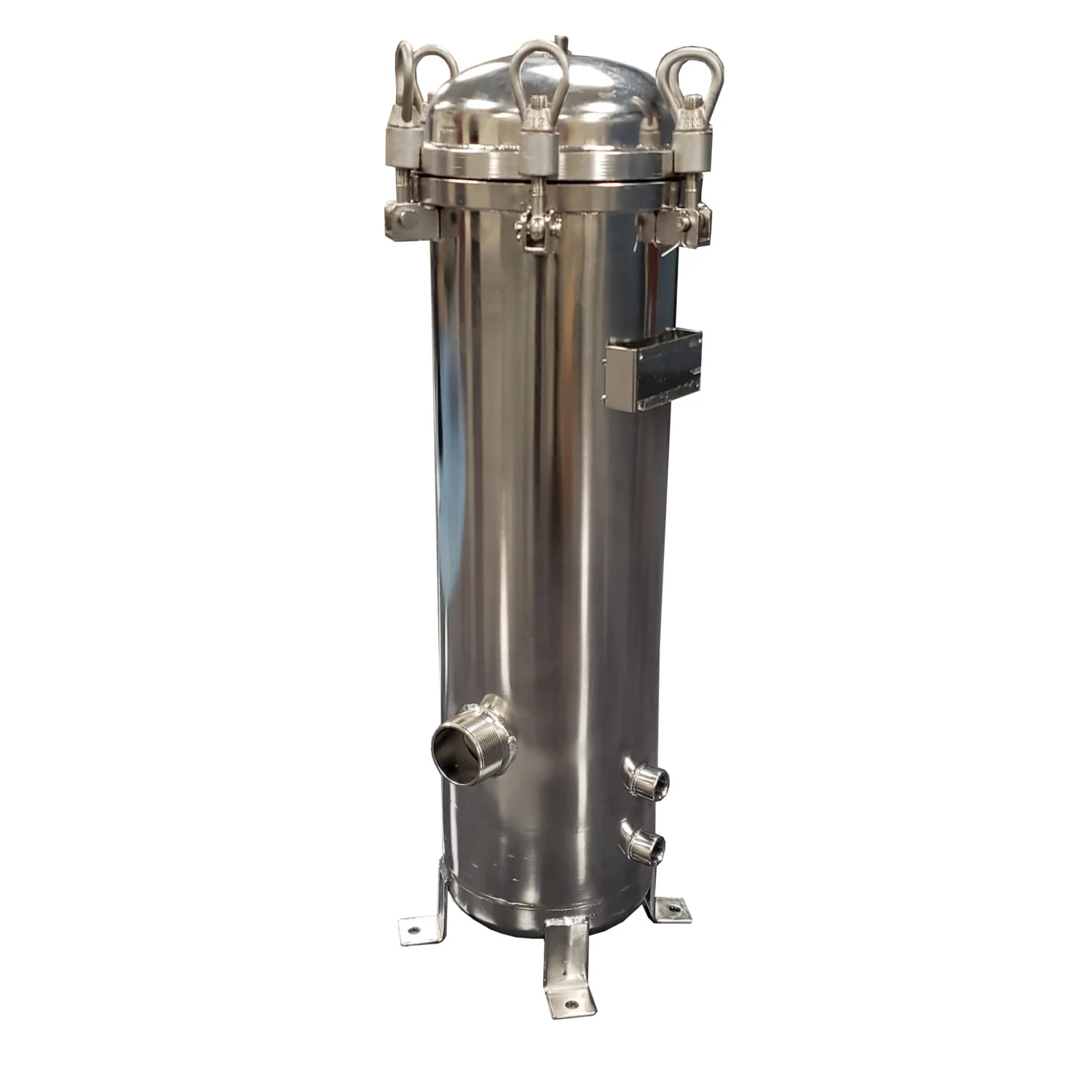

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 2 INCH NPT INLET/OUTLET

PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x 20 Inch cartridge filters.

Features:

304 SS construction for corrosion resistance
Uses (4) 20 Inch Cartridge Filters
Flow Capacity 48 gpm
2 Inch FNPT Inlet/Outlet
Silicone O-Ring
1/2” NPT drains
Top vent port for pressure gauge or relief valve
Max. Operating pressure: 108 psig
Operating temperature: 40°-140°F

BFCARTSSC8304X Datasheet

BFCARTSSC8304X Drawing

**3D models are for visualization. Details and dimensions may vary.

Replacement Parts for BFCARTSSC8304X

Replacement Silicone O-Rings (BFSSCHPTORSIL800X)
Replacement Threaded Rod (BFSSCHPT20RODX)

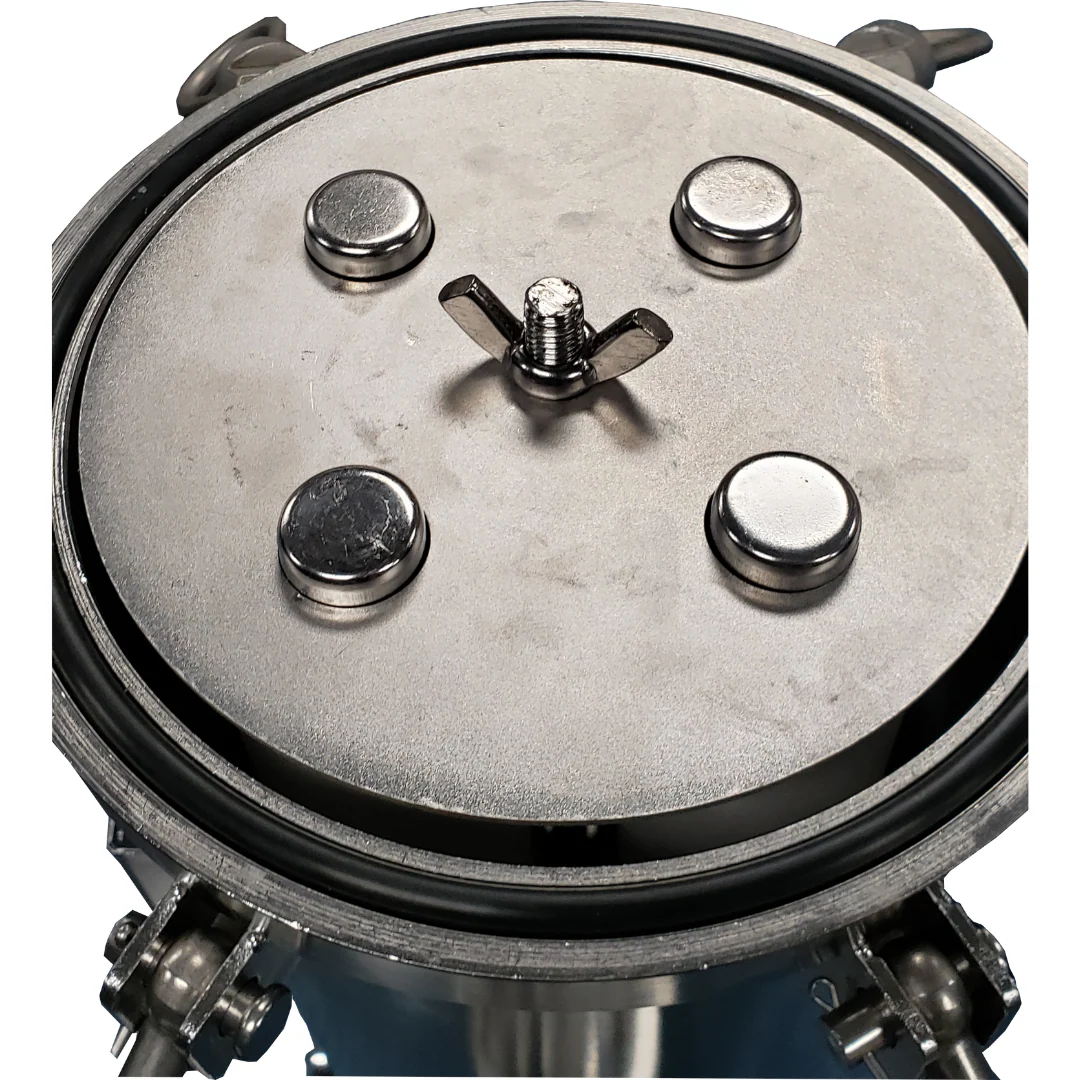

Replacement Hold Down Plate (BFSSCHPTHDP8004X)
Replacement Cartridge Retainer and Spring Assembly (MGBFCUPANDSPRINGSET)
Replacement Lid (BFSSCHPTLID800X)
Replacement Clamp Bolt Assembly (BFSSCHPTCBAX)

$324.00

Original: $1,079.99

-70%

PRM 304 Stainless Steel 4 Cartridge Filter Housing, Uses 20 Inch Cartridges, 2 Inch NPT In/Out—

$1,079.99

$324.00

Product Information

Shipping & Returns

Description

PRM STAINLESS STEEL MULTI-CARTRIDGE FILTER HOUSING, 2 INCH NPT INLET/OUTLET

PRM stocks Stainless Steel Multi-Cartridge Filter Housings ideal for most industrial or commercial applications. Stainless Steel Cartridge housings use standard 2.5 Inch x 20 Inch cartridge filters.

Features:

304 SS construction for corrosion resistance
Uses (4) 20 Inch Cartridge Filters
Flow Capacity 48 gpm
2 Inch FNPT Inlet/Outlet
Silicone O-Ring
1/2” NPT drains
Top vent port for pressure gauge or relief valve
Max. Operating pressure: 108 psig
Operating temperature: 40°-140°F

BFCARTSSC8304X Datasheet

BFCARTSSC8304X Drawing

**3D models are for visualization. Details and dimensions may vary.

Replacement Parts for BFCARTSSC8304X

Replacement Silicone O-Rings (BFSSCHPTORSIL800X)
Replacement Threaded Rod (BFSSCHPT20RODX)
Replacement Hold Down Plate (BFSSCHPTHDP8004X)
Replacement Cartridge Retainer and Spring Assembly (MGBFCUPANDSPRINGSET)
Replacement Lid (BFSSCHPTLID800X)
Replacement Clamp Bolt Assembly (BFSSCHPTCBAX)
