PRM MICRO DIFFERENTIAL PRESSURE TRANSMITTERS, 4-20 mA 24 VDC

PRM offers Micro Differential Pressure Transmitters for measuring the difference between two pressures, one connected to each side of the sensor. Differential pressure sensors are used to measure many properties, such as pressure drops across oil filters or air filters, fluid levels (by comparing the pressure above and below the liquid) or flow rates (by measuring the change in pressure across a restriction).

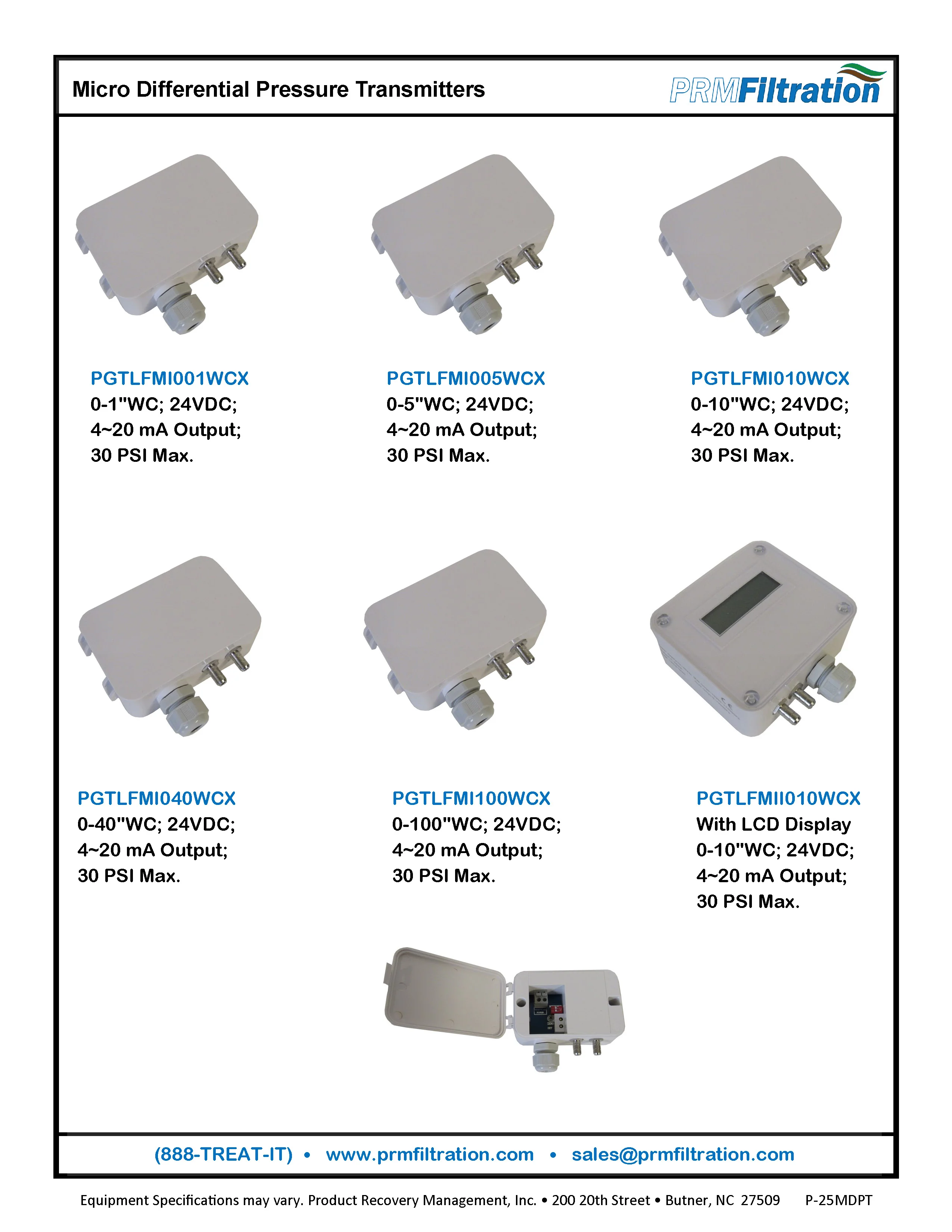

Available Ranges:

• 0-1" WC; 24 VDC; 4~20mA Output; 30 psi max.
• 0-5" WC; 24 VDC; 4~20mA Output; 30 psi max.
• 0-10" WC; 24 VDC; 4~20mA Output; 30 psi max.
• 0-40" WC; 24 VDC; 4~20mA Output; 30 psi max.
• 0-100" WC; 24 VDC; 4~20mA Output; 30 psi max.

• 0-10" WC Micro Differential PSI Transmitter with LCD Display; 24VDC; 4~20 mA Output; 30 PSI MAX.

Specifications:
MAXIMUM PSI: 30 PSI
OUTPUT SIGNAL: 4-20mA
POWER SUPPLY: 24 VDC
ACCURACY: +/- 1% FS
WORKING TEMPERATURE:14-140° F
BARBED CONNECTIONS USE 3/16 ID X 5/16 OD TUBING

Micro Differential Pressure Transmitter Datasheet

Operation Manual
