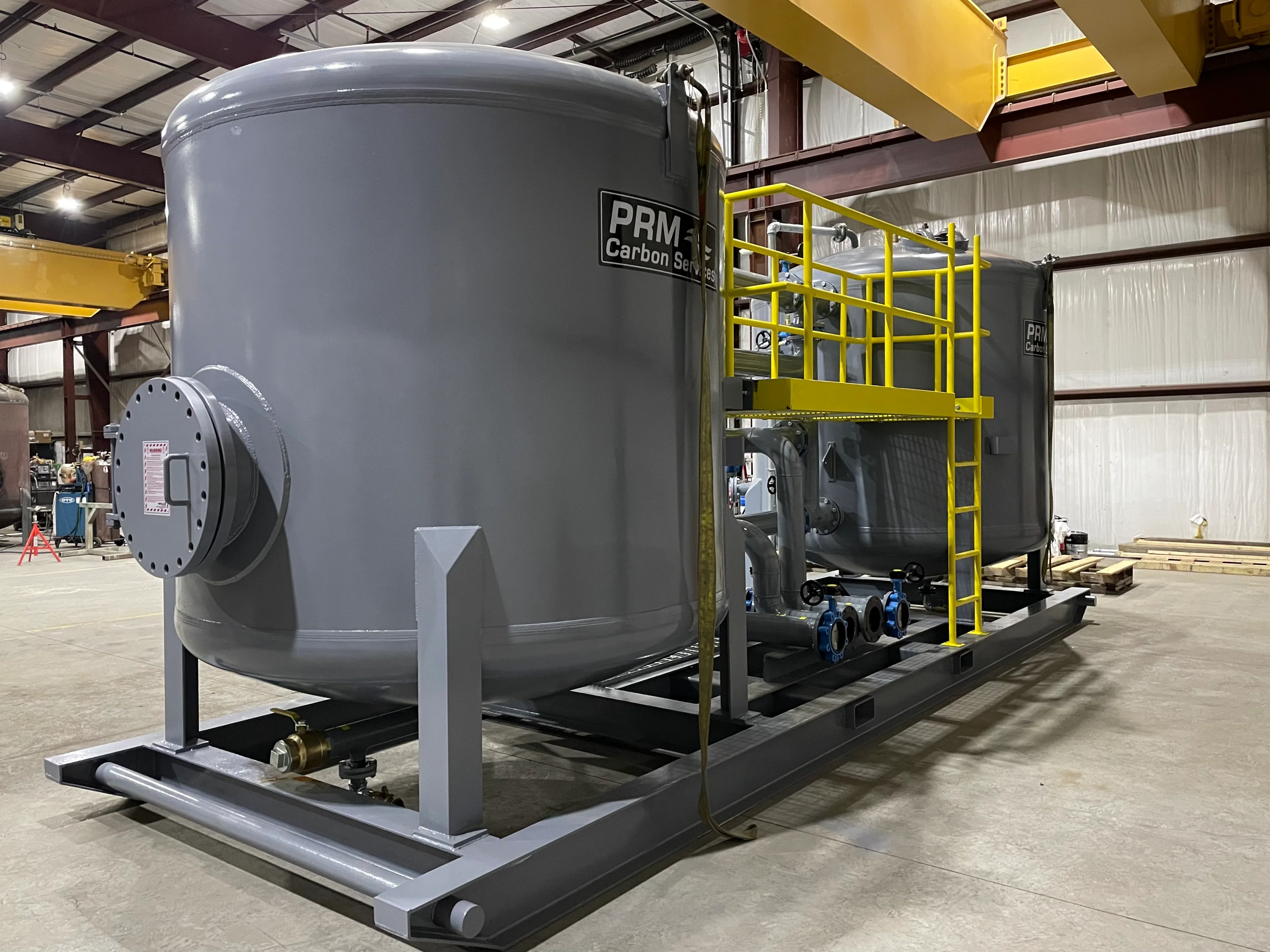

LIQUID PHASE MEDIA FILTRATION SYSTEMS - DUAL 10,000 lbs. CARBON OR MEDIA FILTRATION SKID

PRM Carbon Services offers customized media filtration systems for industrial and
municipal water applications. These HP Vessels can be provided individually or as a duplex system.

Duplex HP10000 Media Filtration System Datasheet

Drawings

STANDARD SPECIFICATIONS:

Liquid Phase Carbon/Media Vessel Skid

• (2) PRM HP 10,000 Liquid Phase Vessels:
  -Carbon Steel Fabrication
  -75 psig operating pressure
  -Tenmic N-140 Internal Coating
  -ASME Code stamp optional
• 6” Flanged Inlet/Outlet
• Access manways for easy maintenance:
  14” x 18” Manway in top dome, one 20” flanged in lower sidewall of each vessel.
• Units hold approx. 10,000 lbs. of 12x40 GAC
• Custom features are available to meet specific site conditions,
  please contact PRM Carbon Services with any questions.



WARNING!
Wet activated carbon removes oxygen from air causing a severe hazard to workers inside carbon vessels. Confined space/low oxygen procedures should be put in place before any entry is made. Such procedures should comply with all applicable Local, State and Federal
guidelines.

Availability: New Systems being manufactured now, contact PRM for Lead Time and Availability

Media Vessels must be shipped by LTL or Dedicated Freight, Shipping Cost is responsibility of purchaser, please contact PRM for a freight quote.
