Application

• Suitable for transferring liquids of low viscosity, non-inflammable and non-explosive, containing solid particles or fibers
• Water supply & drainage for high-rise buildings, filtration and transfer at waterworks, pressure boosting in main pipe
• Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment
• Ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools
• Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
• Food & beverage industry
• Fire-fighting system


Operating Conditions of LVS/R Stainless Steel Vertical Multistage Pump:

• Low viscosity, non-inflammable and non-explosive liquids not containing solid particles or fibers. And the liquid must not chemically attach the pump surface.
• Liquid temperature: -20 - +120℃
• Flow ranges: 0.7 - 240 m3/h
• Liquid pH value: 4 - 10
• Max. ambient temperature: +40℃
• Max. operation pressure: 33 bar
• Altitude: up to 1,000m

User Manual
Catalog

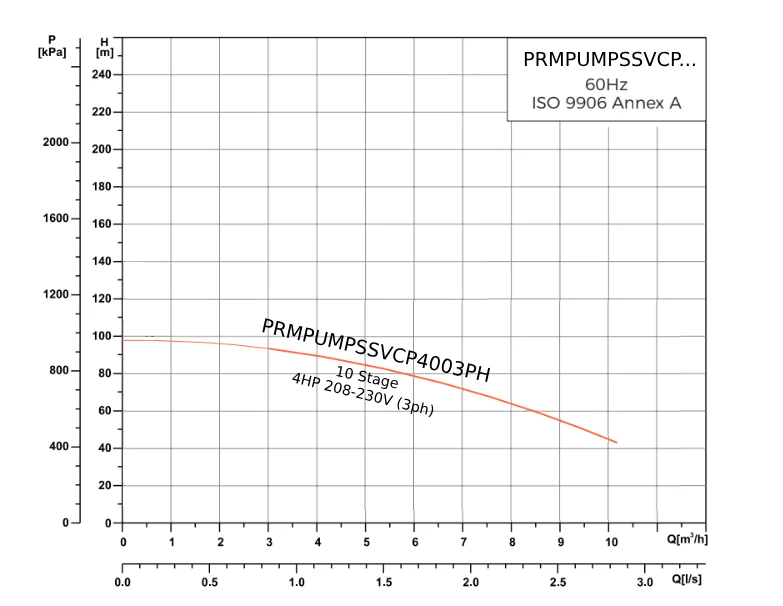

Flow Curves
