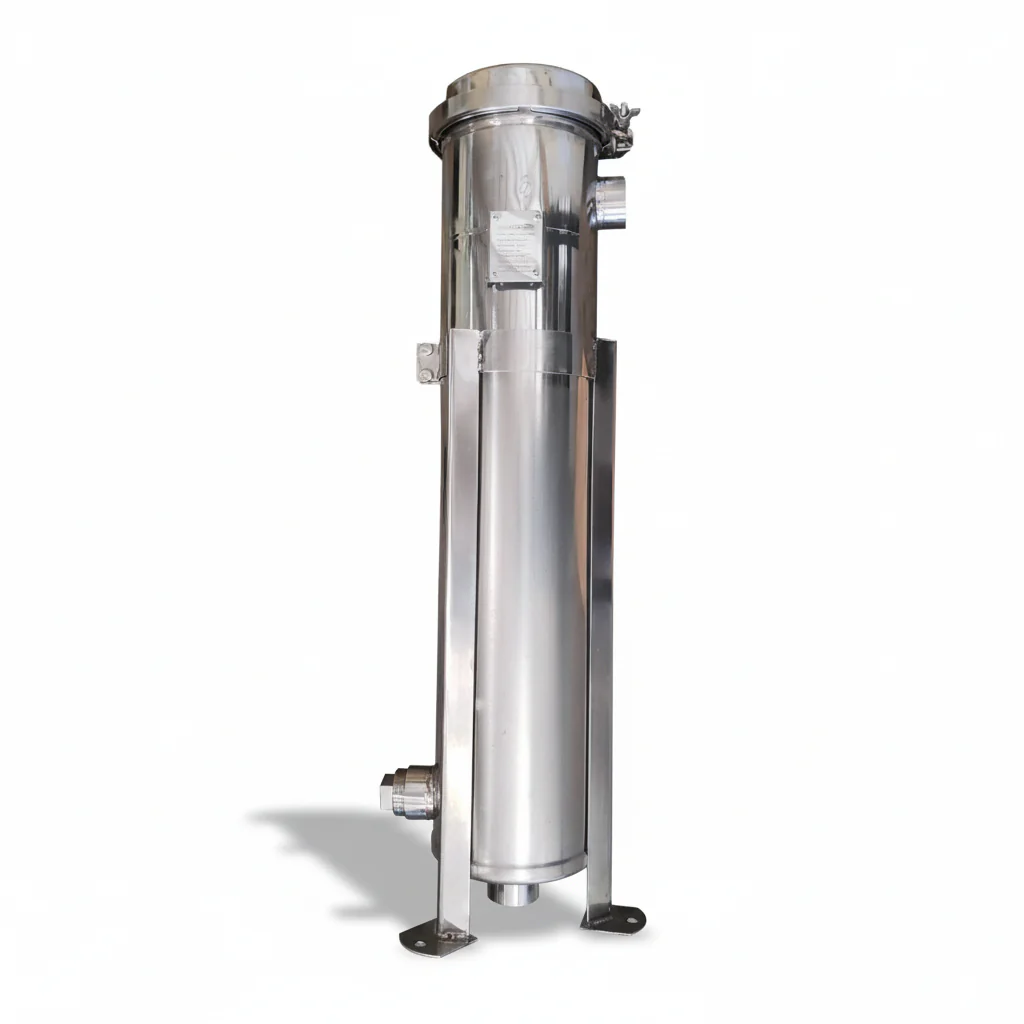

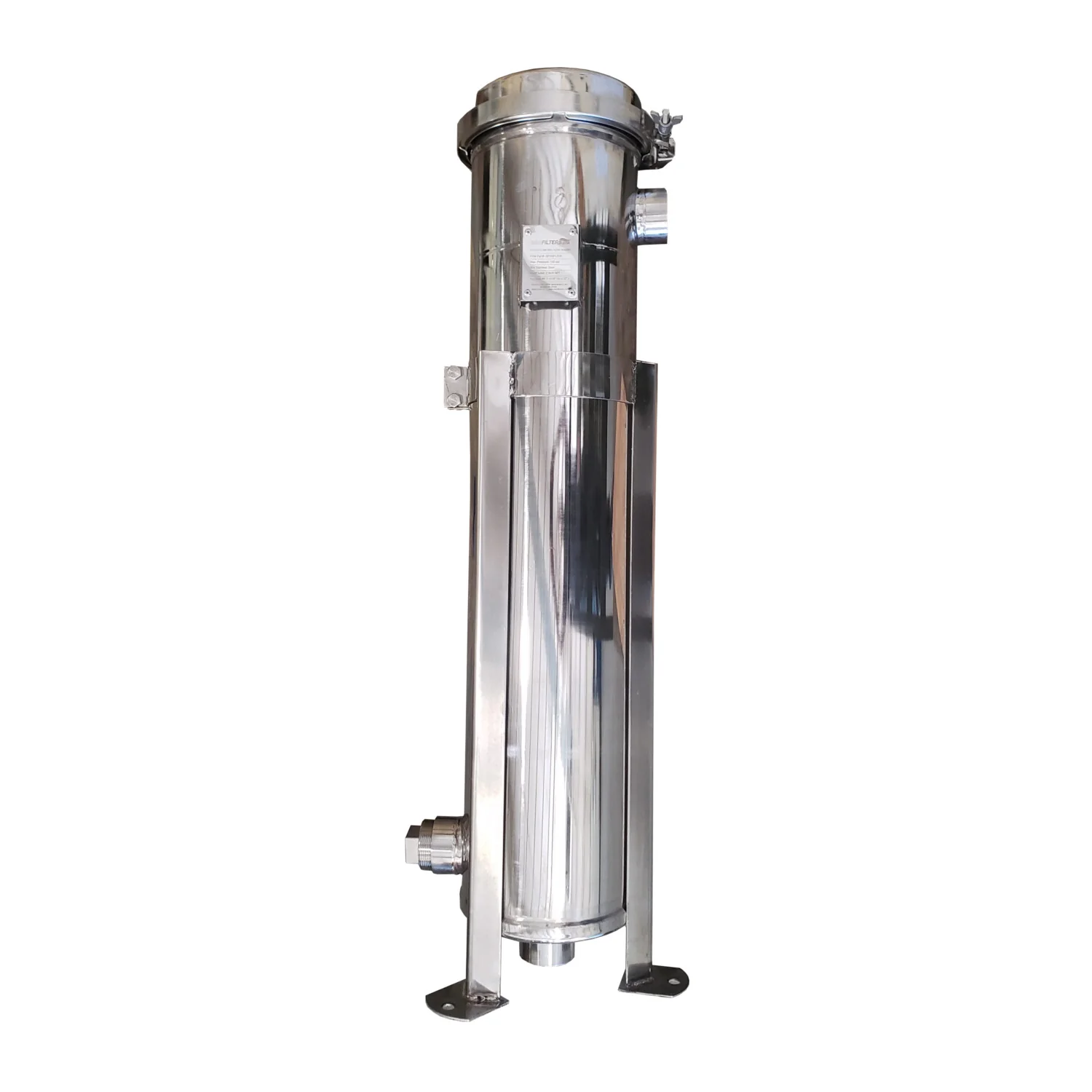

PRM #2 304 Stainless Steel Bag Filter Housing, 2 Inch NPT Inlet, Dual Side or Bottom 2 Inch NPT Outlet, 100 psi
1 / 9
PRM #2 304 Stainless Steel Bag Filter Housing, 2 Inch NPT Inlet, Dual Side or Bottom 2 Inch NPT Outlet, 100 psi
PRM LOW PRESSURE FILTER HOUSING
304 STAINLESS STEEL - 2 INCH NPT INLET/OUTLET
Banded Top Bag Filter Housings for remediation and industrial filtration needs. Units come standard in 304 stainless steel with Viton O-Rings. These units offer a 2 inch Side Outlet and 2 Inch Bottom Outlet for convenient configuration to your piping requirements.
Features Include:
- 304 Stainless Steel Construction
- 8āx 30ā Trade Size # 2 Housing
- Uses #2 Size Liquid Filter Bags (Sold Separately)

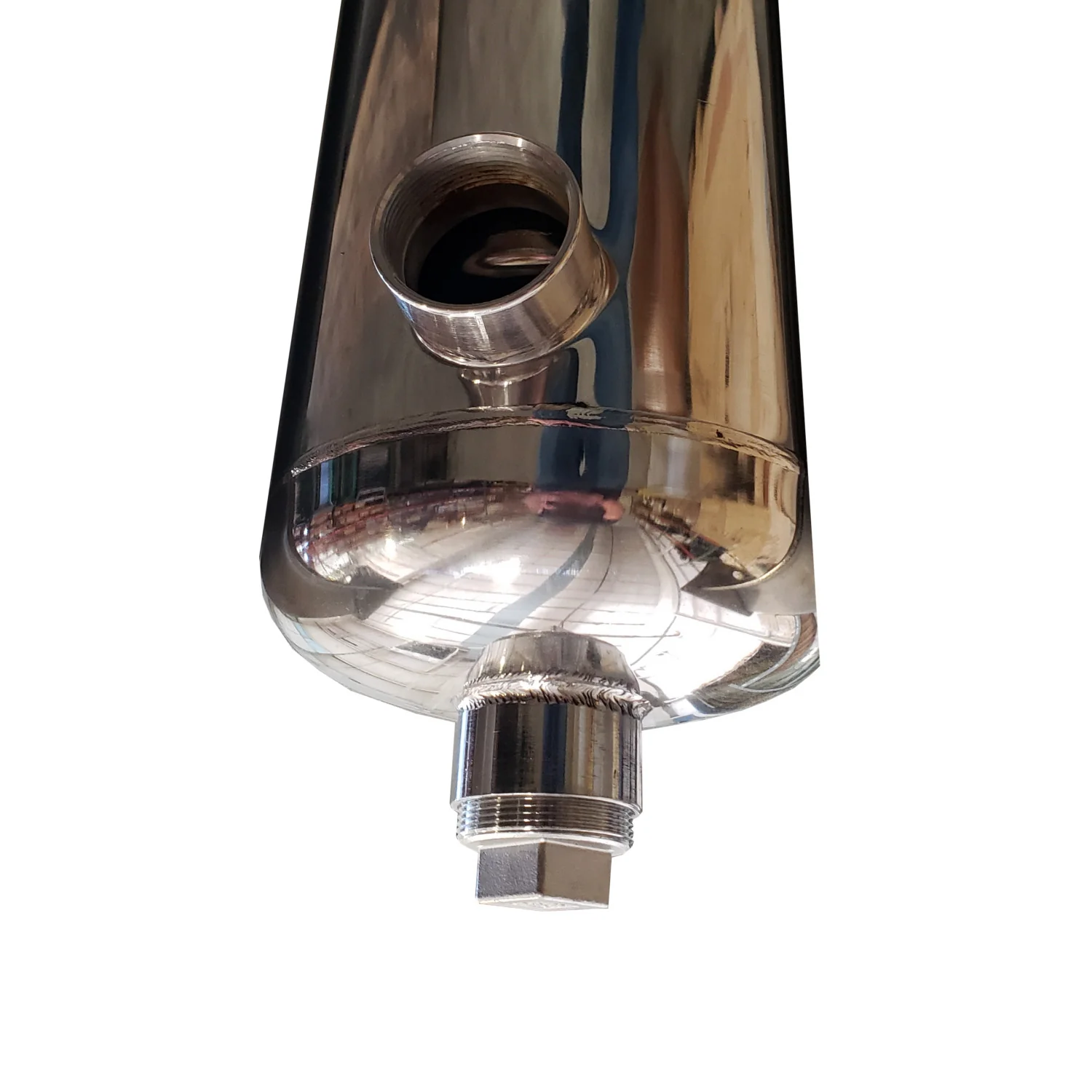

(Shop Liquid Filter Bags Here) - 2 Inch NPT Inlet and Outlet Connections (Side and Bottom)

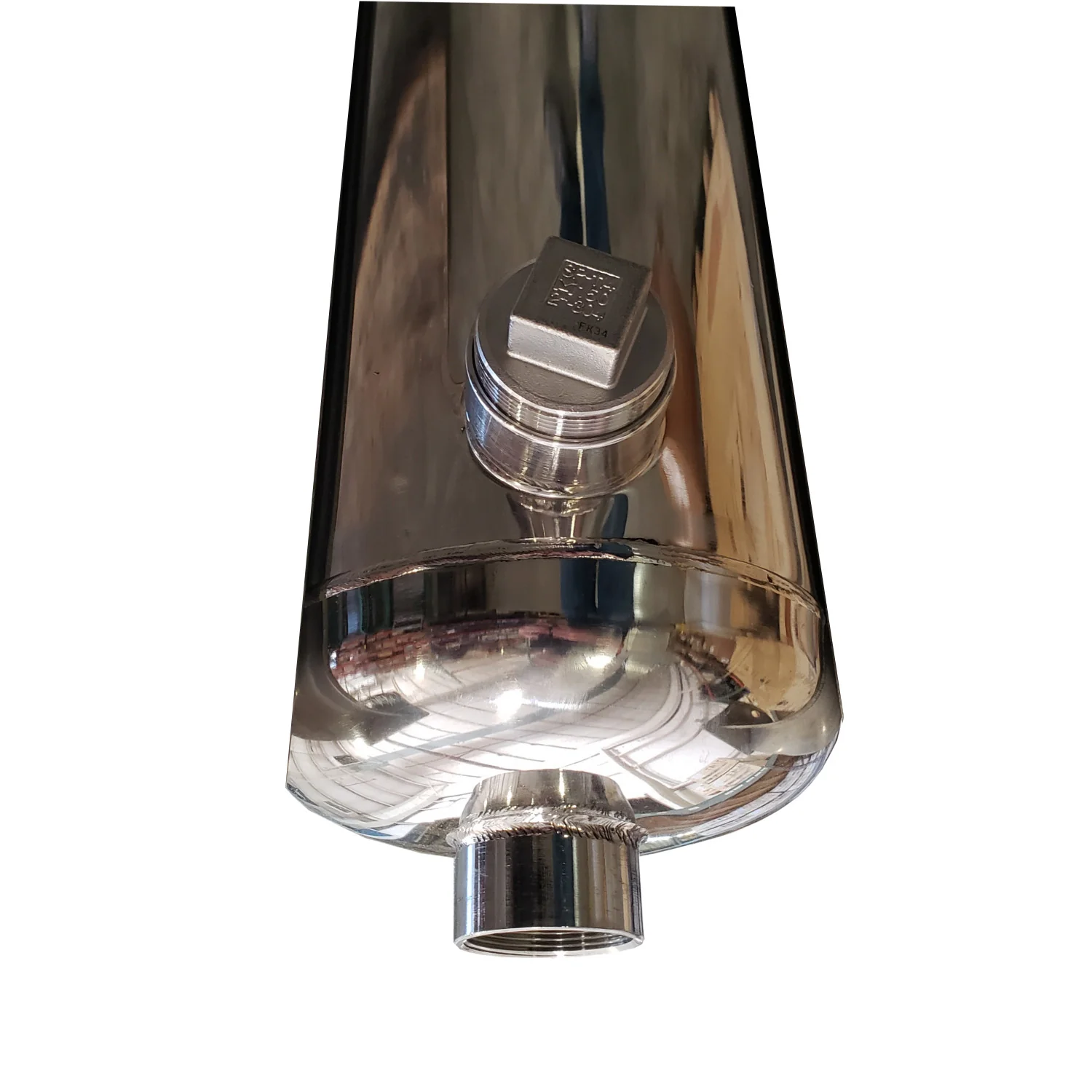

- 304 SS NPT End Plug Included to Close Off Outlet Not Being Used
- FKM (Viton) O-rings standard
- 100 psi Maximum Working Pressure
- 100 gpm max. flow rate
- Operating Temperature: normal range of 50Ā°F - 90Ā°F.Ā Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.Ā Ā

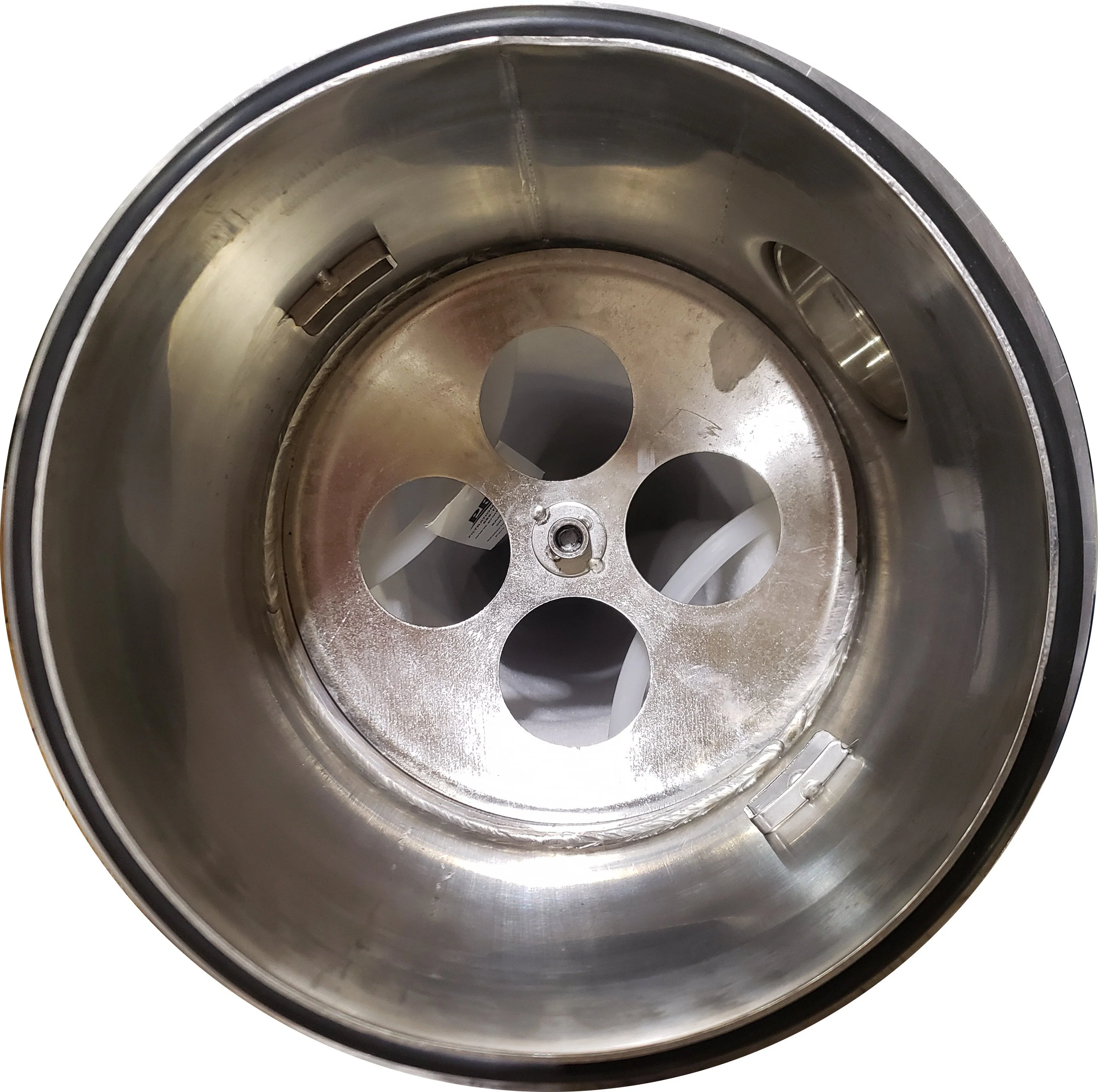

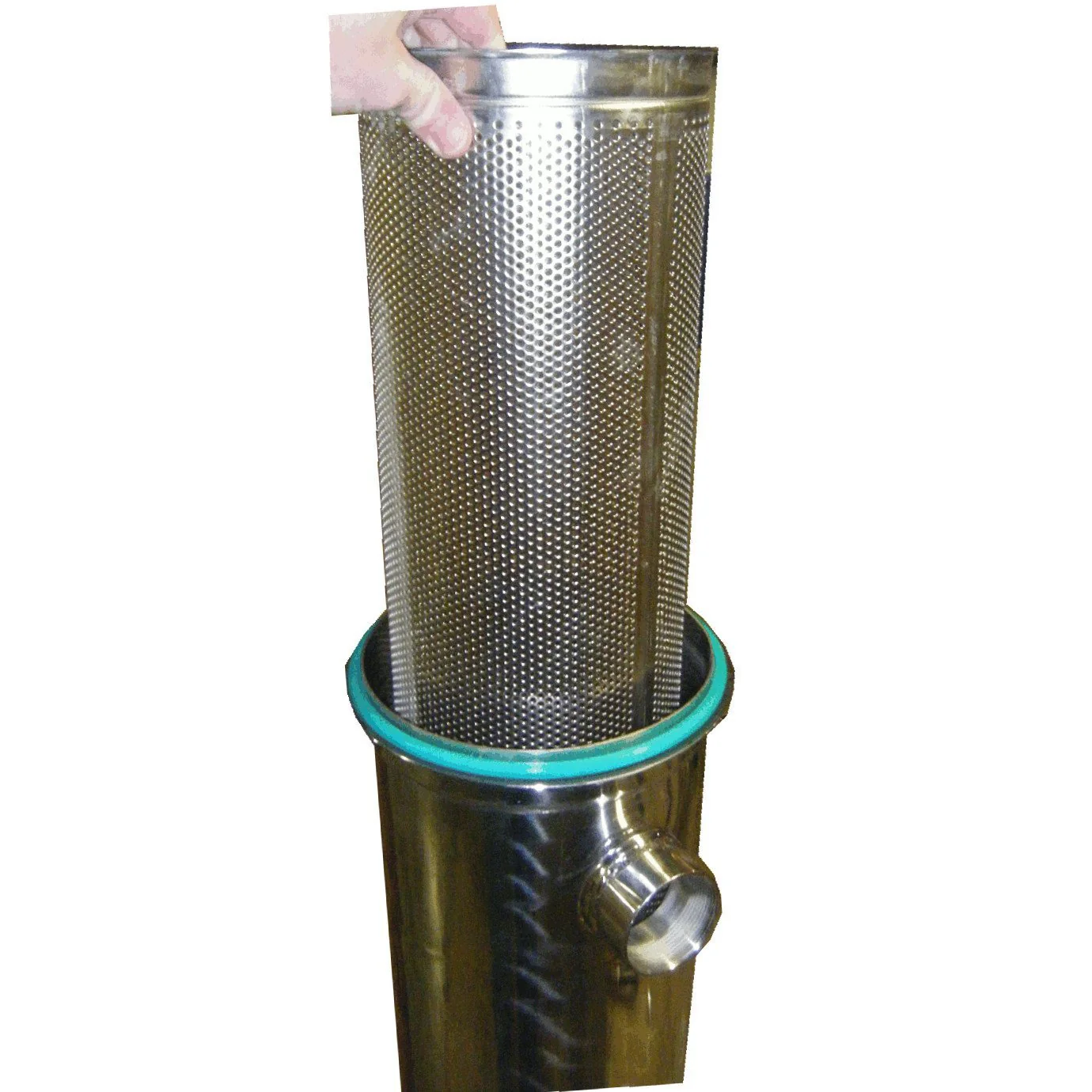

- Stainless Steel Strainer Basket and Internal Bag Support Rack

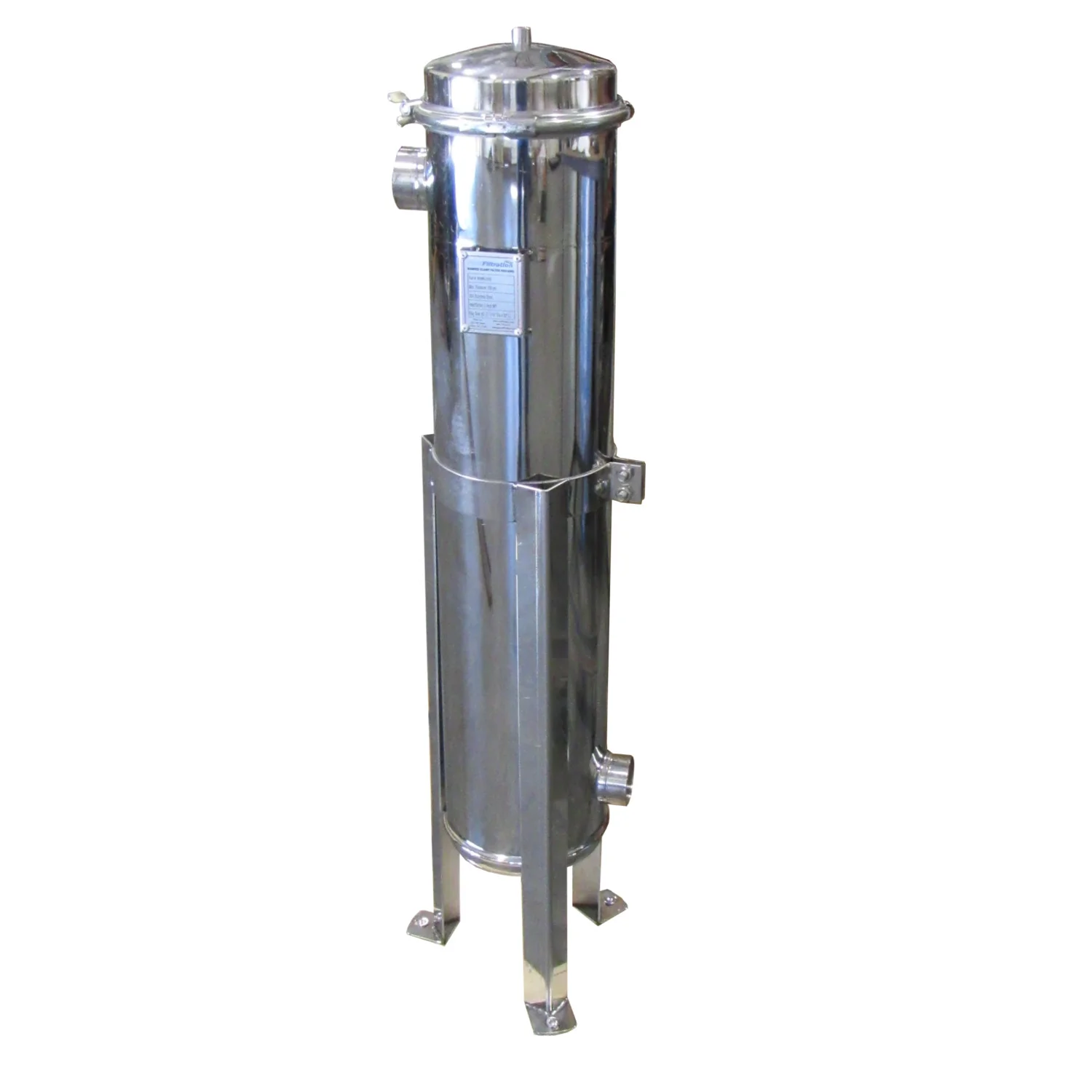

- 3 Leg Mounting Stand

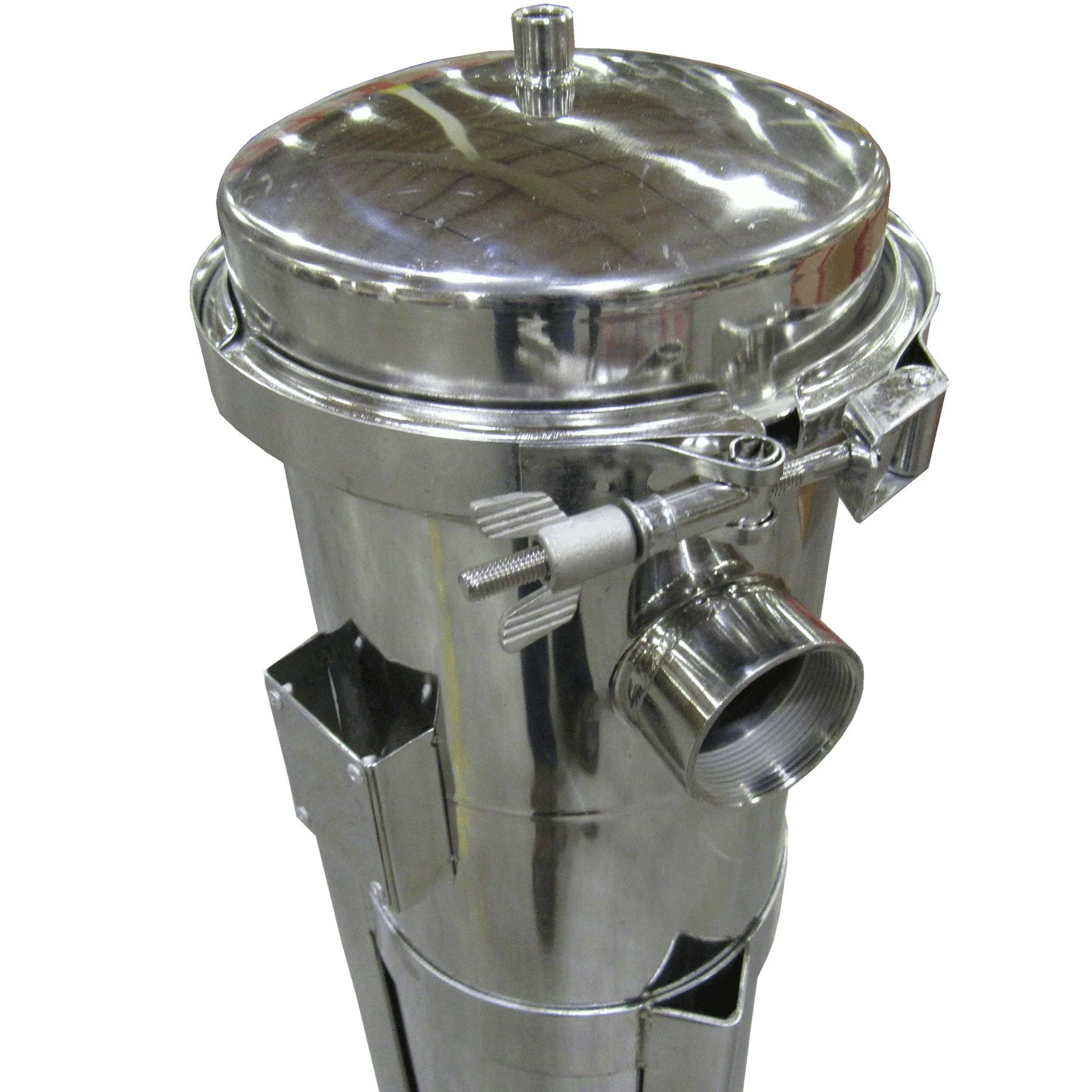

- Quick Opening Clamp Top
- Safety Release Vent for Maintenance
- Head loss is negligible with an empty housing and clean bag(s)

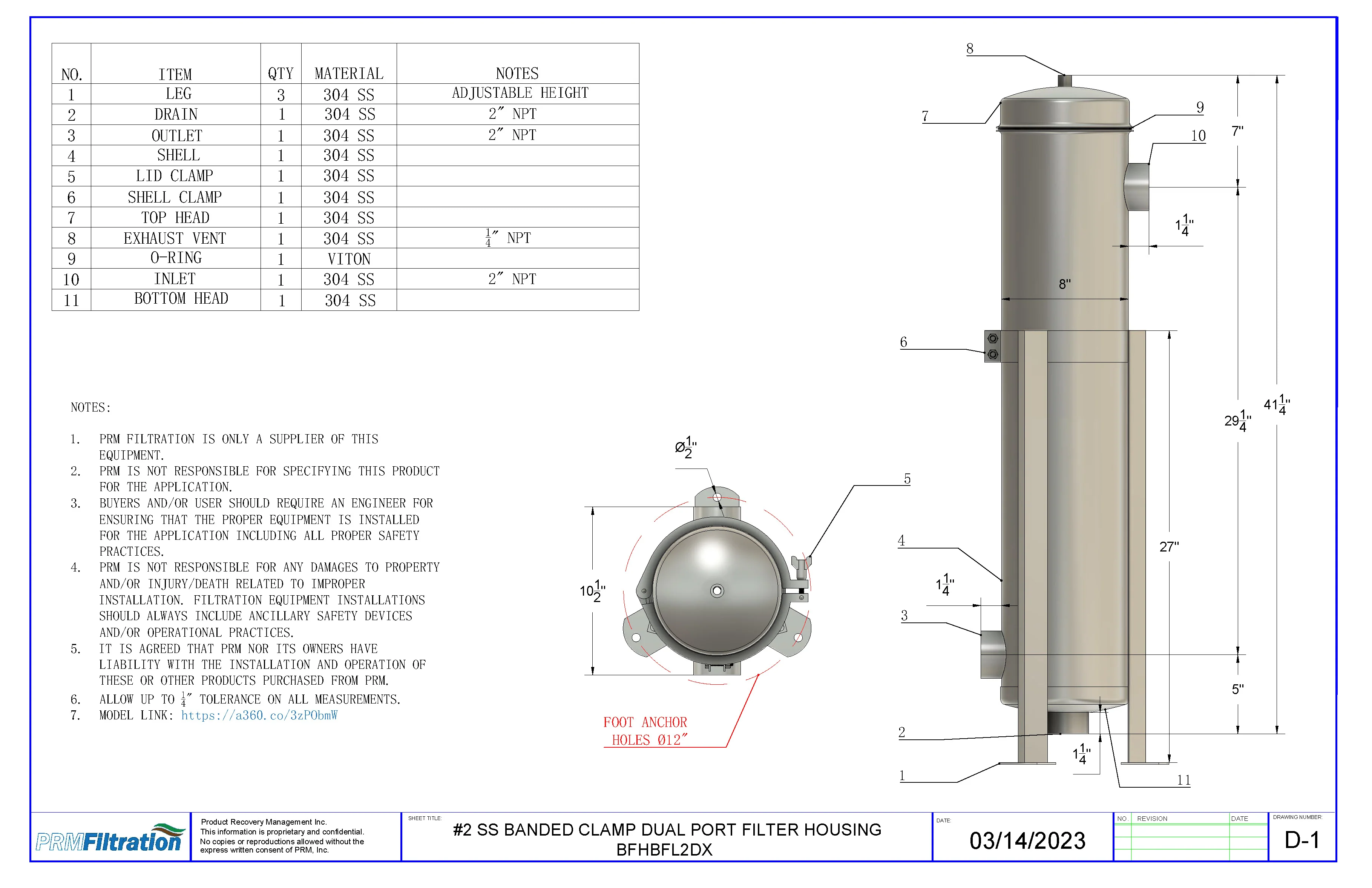

**3D models are for visualization. Details and dimensions may vary.
Ā
Spare Parts for this Housing (BFHBFL2DX)
- Viton O-Ring for Lid (BFHBFL2LORX)
- EPDM O-Ring for Lid (BFHBFL2EPDMLORX)Ā
- Viton Under Basket O-Ring (BFHBFSMALLVITONORING)
- EPDM Under Basket O-Ring (BFHBFSMALLEPDMORING)
- Replacement Lid (BFHBFHDOMEBFL2)
- Replacement Clamp (BFHBFHOUSINGCLAMP)
- Replacement Hold Down System (BFHBFL2FILTERCLAMPX)
- Replacement Basket Strainer (BFHBFHBASKET2X)
