PRM #2 304 Stainless Steel Bag Filter Housing, 2 Inch NPT Inlet, Dual Side or Bottom 2 Inch NPT Outlet, 150 psi

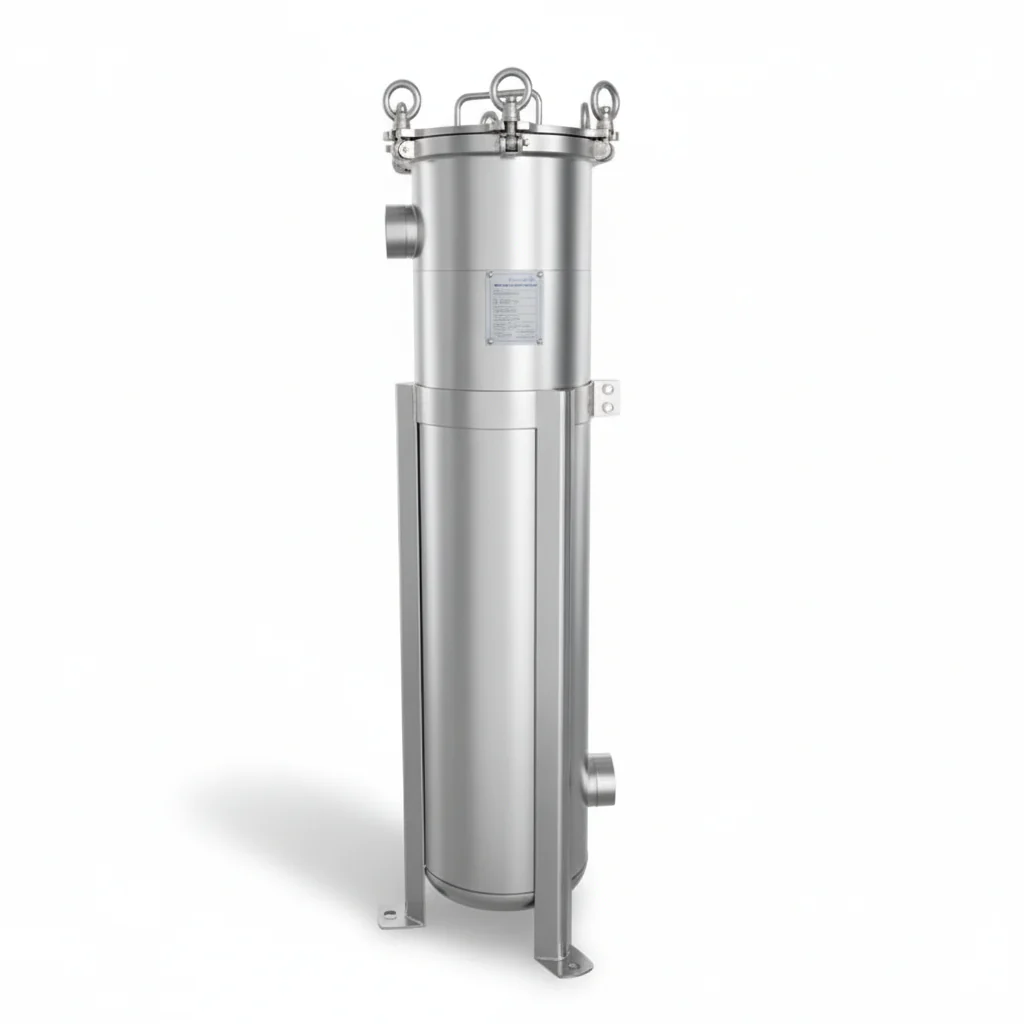

Product image 1
1 / 7

PRM #2 304 Stainless Steel Bag Filter Housing, 2 Inch NPT Inlet, Dual Side or Bottom 2 Inch NPT Outlet, 150 psi

PRM HIGH PRESSURE FILTER HOUSING
304 STAINLESS STEEL - 2 INCH NPT INLET/OUTLET


Banded Top Bag Filter Housings for remediation and industrial filtration needs. Units come standard in 304 stainless steel with Viton O-Rings. These units offer a 2 inch Side Outlet and 2 Inch Bottom Outlet for convenient configuration to your piping requirements.

Features Include:

  • 304 Stainless Steel Construction
  • 8”x 30” Trade Size # 2 Housing
  • 2 Inch NPT Inlet and Outlet Connections (Side and Bottom)
  • 304 SS NPT End Plug Included to Close Off Outlet Not Being Used
  • FKM (Viton) O-rings standard
  • 150 psi Maximum Working Pressure
  • 100 gpm max. flow rate
  • Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.
  • Stainless Steel Strainer Basket and Internal Bag Support Rack
  • 3 Leg Mounting Stand
  • Quick Opening Clamp Top
  • Safety Release Vent for Maintenance
  • Head loss is negligible with an empty housing and clean bag(s)






**3D models are for visualization. Details and dimensions may vary.



Spare Parts for this Housing (BFHBFH2DNPTX)
$356.40

Original: $1,187.99

-70%
PRM #2 304 Stainless Steel Bag Filter Housing, 2 Inch NPT Inlet, Dual Side or Bottom 2 Inch NPT Outlet, 150 psi—

$1,187.99

$356.40

Product Information

Shipping & Returns

Description

PRM HIGH PRESSURE FILTER HOUSING
304 STAINLESS STEEL - 2 INCH NPT INLET/OUTLET


Banded Top Bag Filter Housings for remediation and industrial filtration needs. Units come standard in 304 stainless steel with Viton O-Rings. These units offer a 2 inch Side Outlet and 2 Inch Bottom Outlet for convenient configuration to your piping requirements.

Features Include:

  • 304 Stainless Steel Construction
  • 8”x 30” Trade Size # 2 Housing
  • 2 Inch NPT Inlet and Outlet Connections (Side and Bottom)
  • 304 SS NPT End Plug Included to Close Off Outlet Not Being Used
  • FKM (Viton) O-rings standard
  • 150 psi Maximum Working Pressure
  • 100 gpm max. flow rate
  • Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.
  • Stainless Steel Strainer Basket and Internal Bag Support Rack
  • 3 Leg Mounting Stand
  • Quick Opening Clamp Top
  • Safety Release Vent for Maintenance
  • Head loss is negligible with an empty housing and clean bag(s)






**3D models are for visualization. Details and dimensions may vary.



Spare Parts for this Housing (BFHBFH2DNPTX)
