PRM MULTI-JET WATER METERS

Multi-Jet Mechanical Water Totalizing Meters display total water usage in gallons.
Available in a 1/2 Inch, 3/4 Inch, 2 Inch and include NPT couplings.

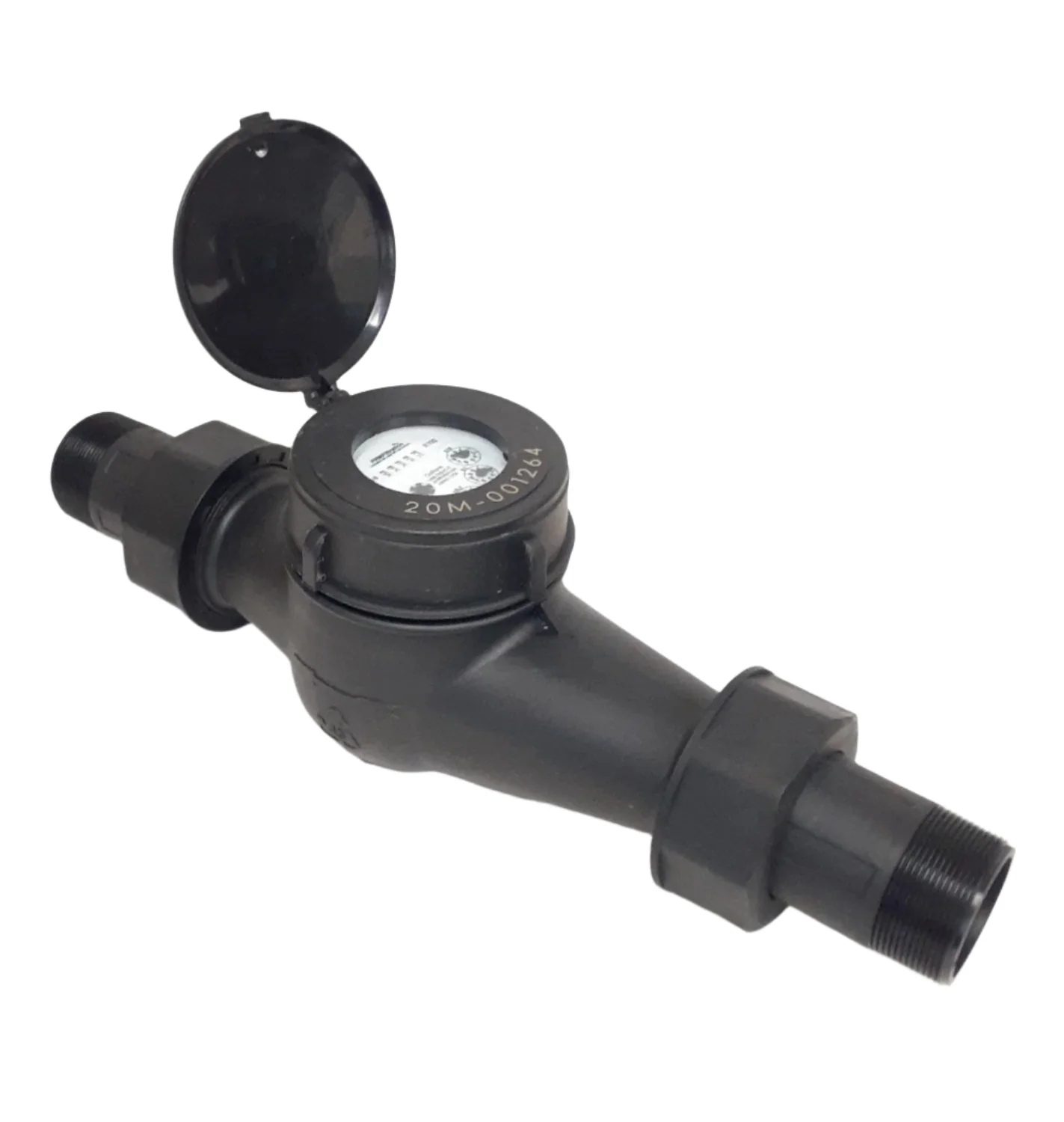

Type: Nylon Water Meter, 2" NPT Couplings at both ends, Multi-Jet.
Model: WM200NYSX
Mounting: Horizontal Inline mount with dial facing upward.
Unit: Totalizer Measuring in Gallon, GPM
Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard
Meter body: Nylon
Dimensions: 13" length(with couplings: 18.5 inches), 5.7" wide, 6.5" height.
Weight: 4.8 lbs.
Nylon Couplings Included
Max. working pressure: 150 psi
Max temperature: 104˚F
Maximum Flow Rate: 130 GPM
Normal Test Flow Limits: 5-130 GPM

Meters have been tested by QC inspectors in the production line to certify their quality, therefore the dial reading will not be zero.

Specifications:
Conforms to AWWA C708, for clean water only.
Class: B
Accuracy: Transitional Flow: ± 5%
Nominal Flow: ± 2%
Maximum Water Temperature: 104°F
Maximum Water Pressure: 150 psi
Mounting Orientation: Horizontal

Materials:
Body: Nylon
Couplings: Nylon
Measuring Chamber: Polyethylene
Seals & O-Ring: Silicone

Mounting Orientation: Horizontal
