PRM Pressure Transducer, 0-100 PSI, 304 SS Case, Diffused Silicon Core, 1/4 Inch MNPT Connection, 0-10VDC

Product image 1
1 / 3

PRM Pressure Transducer, 0-100 PSI, 304 SS Case, Diffused Silicon Core, 1/4 Inch MNPT Connection, 0-10VDC

PRM 0-100 PSI PRESSURE TRANSDUCER; 304 SS CASE: DIFFUSED SILICON CORE; 0-10VDC;1/4" MNPT

PRM Pressure Transmitters are built to withstand the harsh environments of the remediation industry.

Features:

  • Range: 0-100 psi
  • Output: 0-10 VDC
  • Working Voltage: 12-32 VDC
  • Accuracy of ± 0.25% full-scale
  • Temperature Range: -40-185°F
  • Body Materials 304 Stainless Steel
  • Connection: 1/4” Male NPT

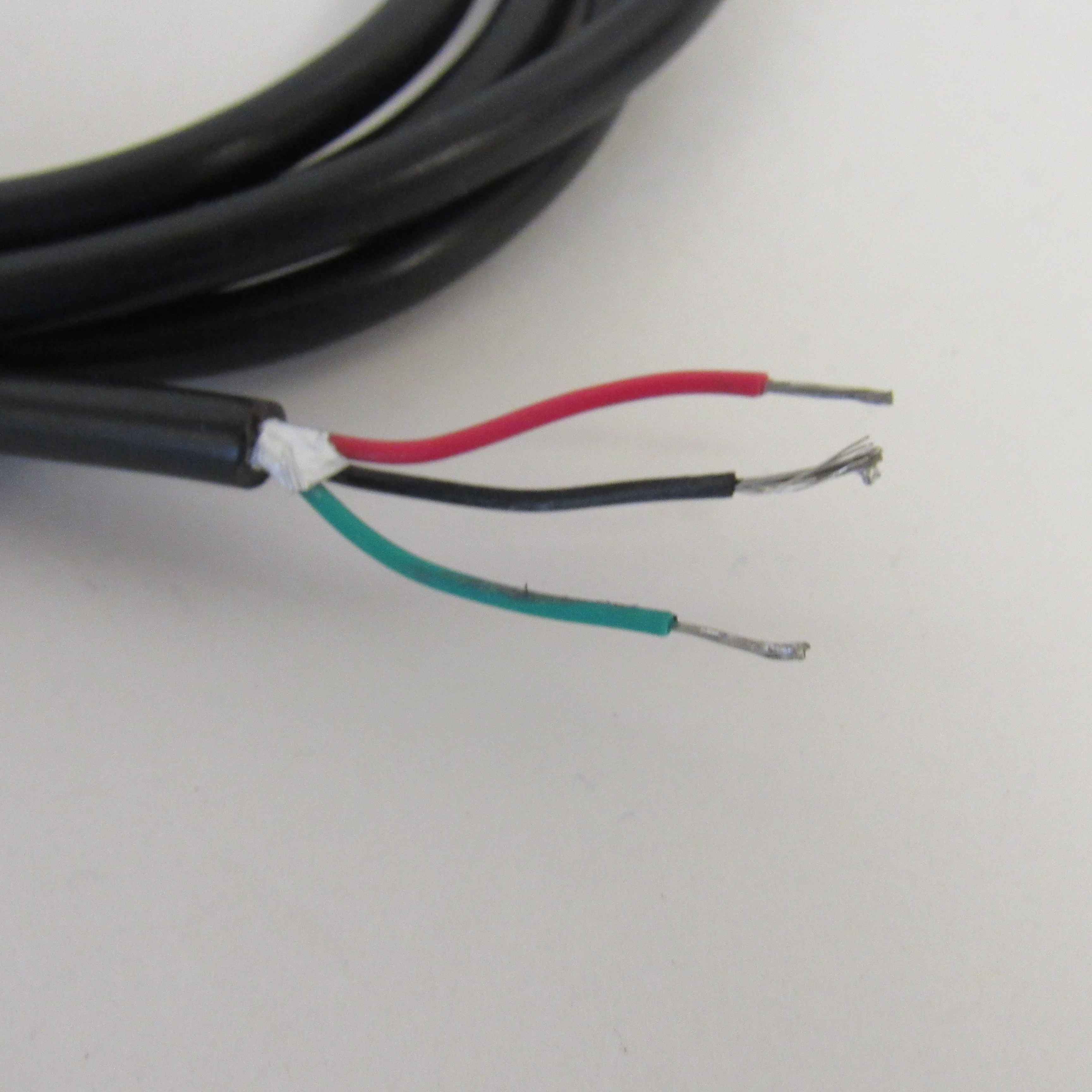

  • 3 foot Cable

Pressure Transmitter Datasheet



$66.00

Original: $219.99

-70%
PRM Pressure Transducer, 0-100 PSI, 304 SS Case, Diffused Silicon Core, 1/4 Inch MNPT Connection, 0-10VDC—

$219.99

$66.00

Product Information

Shipping & Returns

Description

PRM 0-100 PSI PRESSURE TRANSDUCER; 304 SS CASE: DIFFUSED SILICON CORE; 0-10VDC;1/4" MNPT

PRM Pressure Transmitters are built to withstand the harsh environments of the remediation industry.

Features:

  • Range: 0-100 psi
  • Output: 0-10 VDC
  • Working Voltage: 12-32 VDC
  • Accuracy of ± 0.25% full-scale
  • Temperature Range: -40-185°F
  • Body Materials 304 Stainless Steel
  • Connection: 1/4” Male NPT
  • 3 foot Cable

Pressure Transmitter Datasheet
