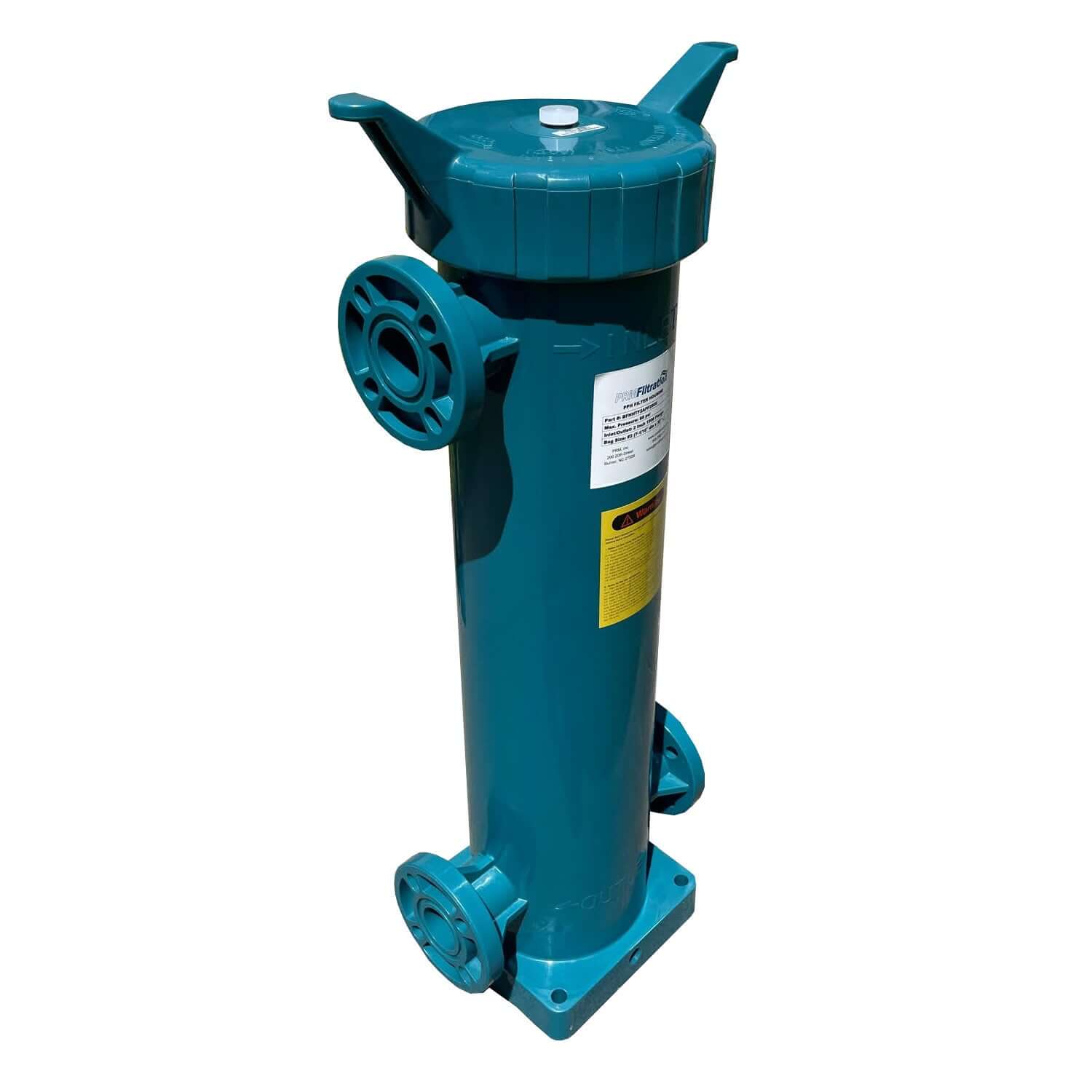

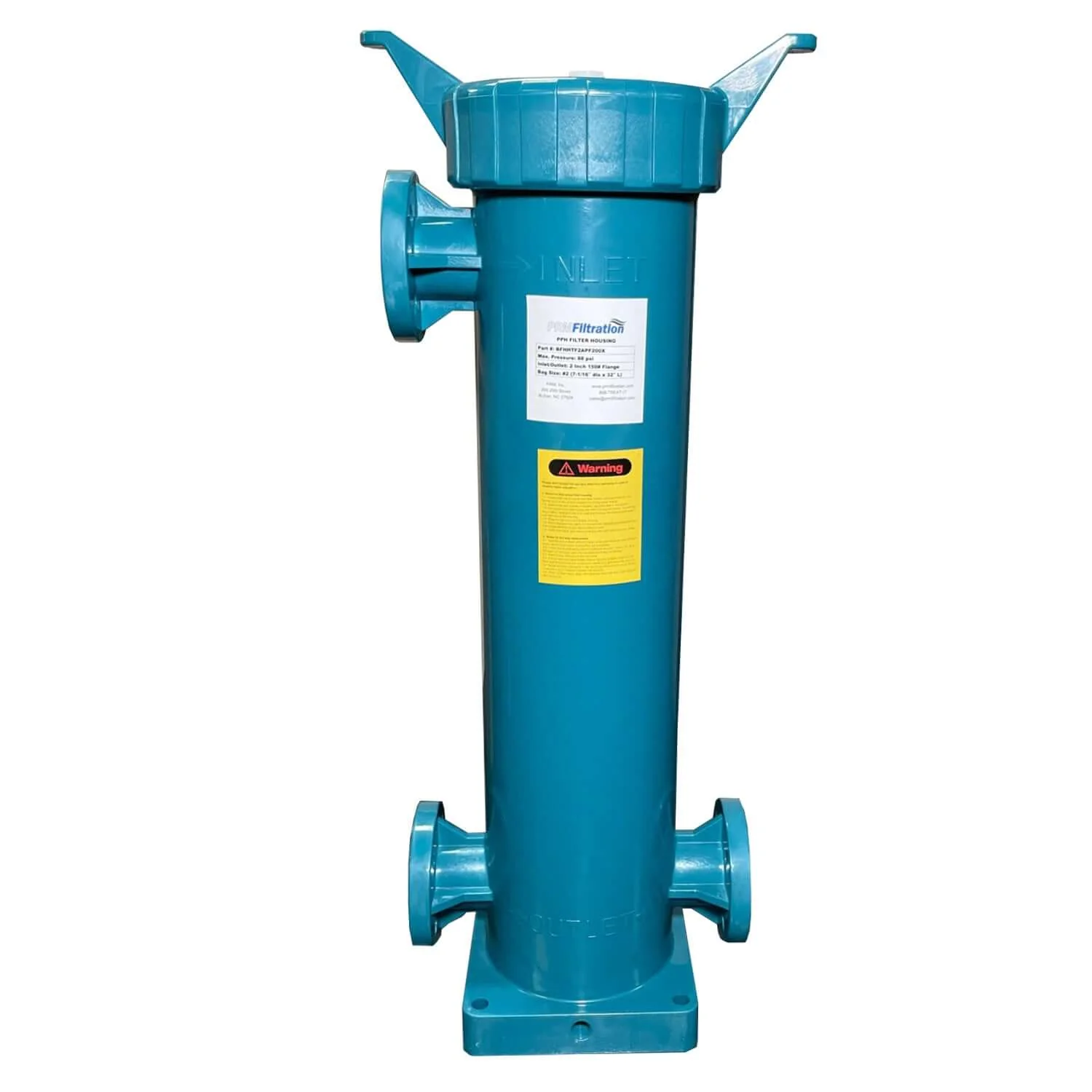

Polypropylene Industrial Filter Housings offer excellent chemical resistance for corrosive environments ideal for industrial and chemical applications and bulk particulate removal.

• Full PPH Construction (Polypropylene Homopolymer)
• Lightweight, Durable, and UV Resistant
• Trade Size # 2 Housing (uses 7-1/16" dia x 32" L Bag Filters)

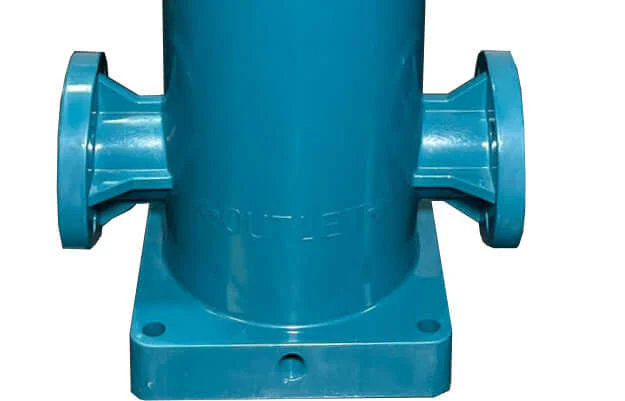

• Base is Molded Part of the Housing, Includes pre-drilled Bolt Holes for Stability and Durability, no broken legs or warping.

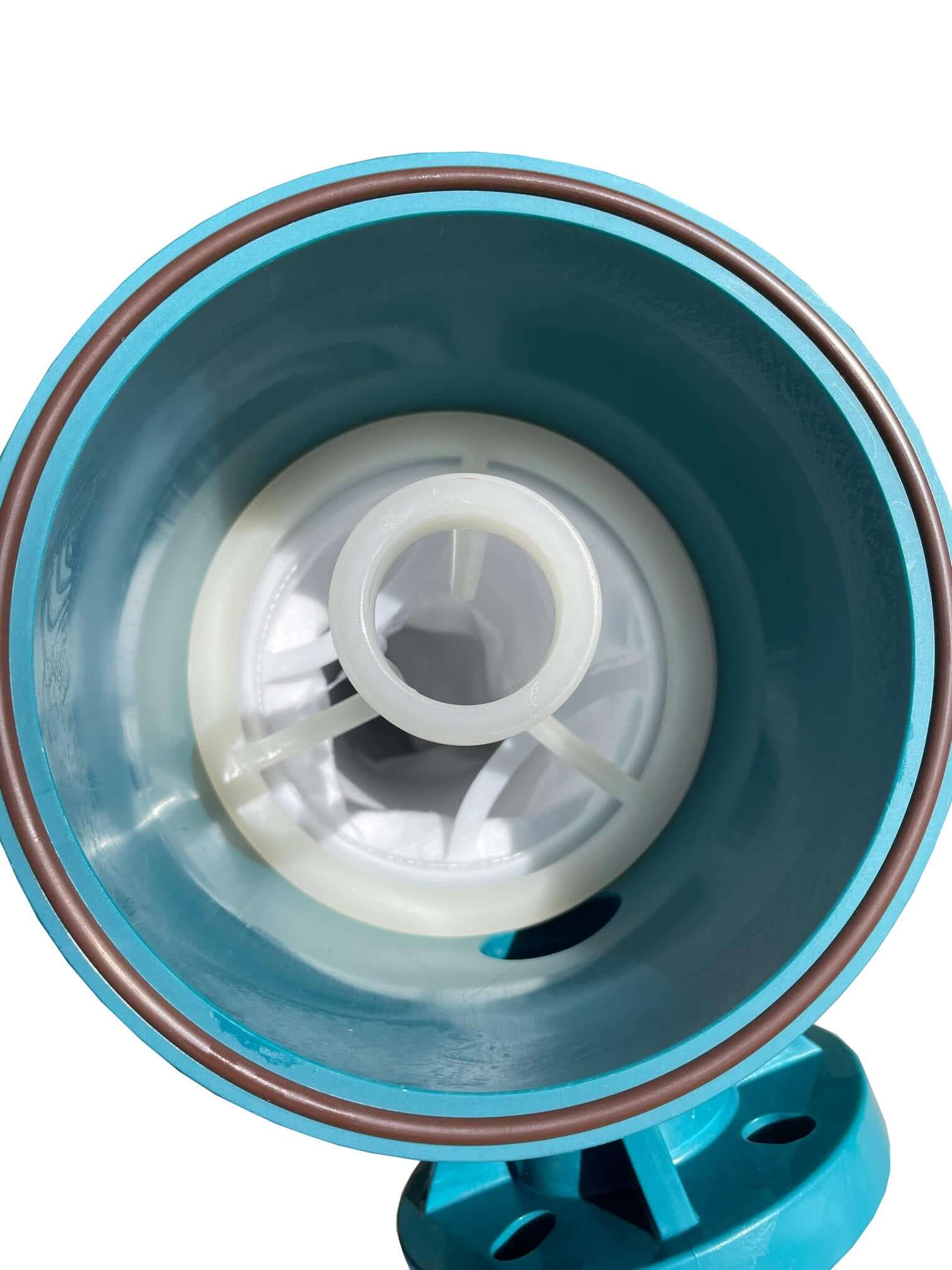

• Twist off Lid for Easy Filter Changes, No Tools Necessary.
• Works well in Confined Spaces.
• 2 Inch Flanged Inlet and Outlet Connections

• Comes with flange to block off outlet not being used
• Maximum Flow Rate: 125 GPM
• Viton® O-rings Standard
• 88 psi Working Pressure
• 176°F Maximum Temperature. Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.


PPH Filter Housing Datasheet

#2 PPH Filter Housing Drawing

NOTE: Filter Bags for the PPH Housings:

PPH Housings do not use the standard #2 or #1 size filter bags, they need a specially molded ring to secure the filter inside the housing.  When purchasing filter bags for use with the #2 or #1 PPH housings, please select the filters specifically for use with the PPH housings. Filter Bags can be found here: Filter Bags for PPH #2 Housings

Spare Parts for this housing (BFHHTF2APF200X)

Viton O-Ring for Top of PPH Housing (BFHHTF12APF200VORTOPX)
Viton O-Ring for Basket of PPH Housing (BFHHTF12APF200VORBASKX)
Viton O-Ring for Inlet/Outlet of PPH Housing (BFHHTF12APF200VORIOX)
