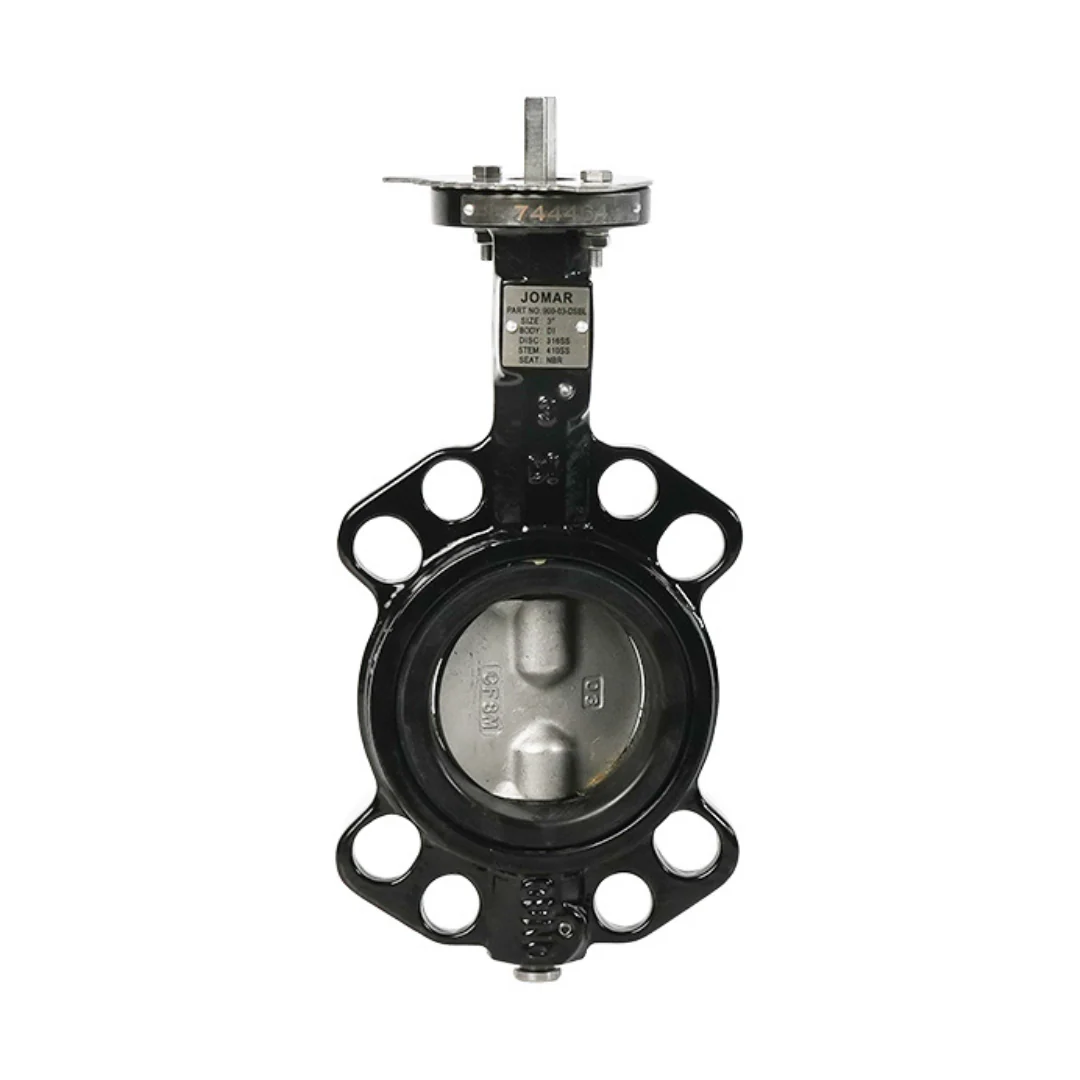

Jomar 8 Inch Wafer Style Butterfly Valve, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, Viton Seat, Bare Stem

Features:

• Epoxy-Coated Finish
• EPDM, PTFE, Buna-N, or Viton® Seats Available
• Square Stem for Direct Mount
• Ideal for Mounting Pneumatic and Electrical Actuators
• Easily Accepts Actuator with ISO 5211 Mounting Flange
• Seat-to-Flange Seal Eliminates Need for Flange Gaskets
• Designed for Commercial, Industrial and Potable Water Applications up to 225 PSI
• NSF 61 / NSF 372 Certified: 2″-24″ (EPDM Seat Only)
• Meets API 609 & MSS SP-67
• Wetted Surfaces Contain Less than .25% Lead Content

Jomar Valve Datasheet

Certifications:

• NSF
  • NSF 61 & NSF 372 (2″ – 24″; EPDM Seat Only)
• Meets API 609
• Meets MSS SP-67
