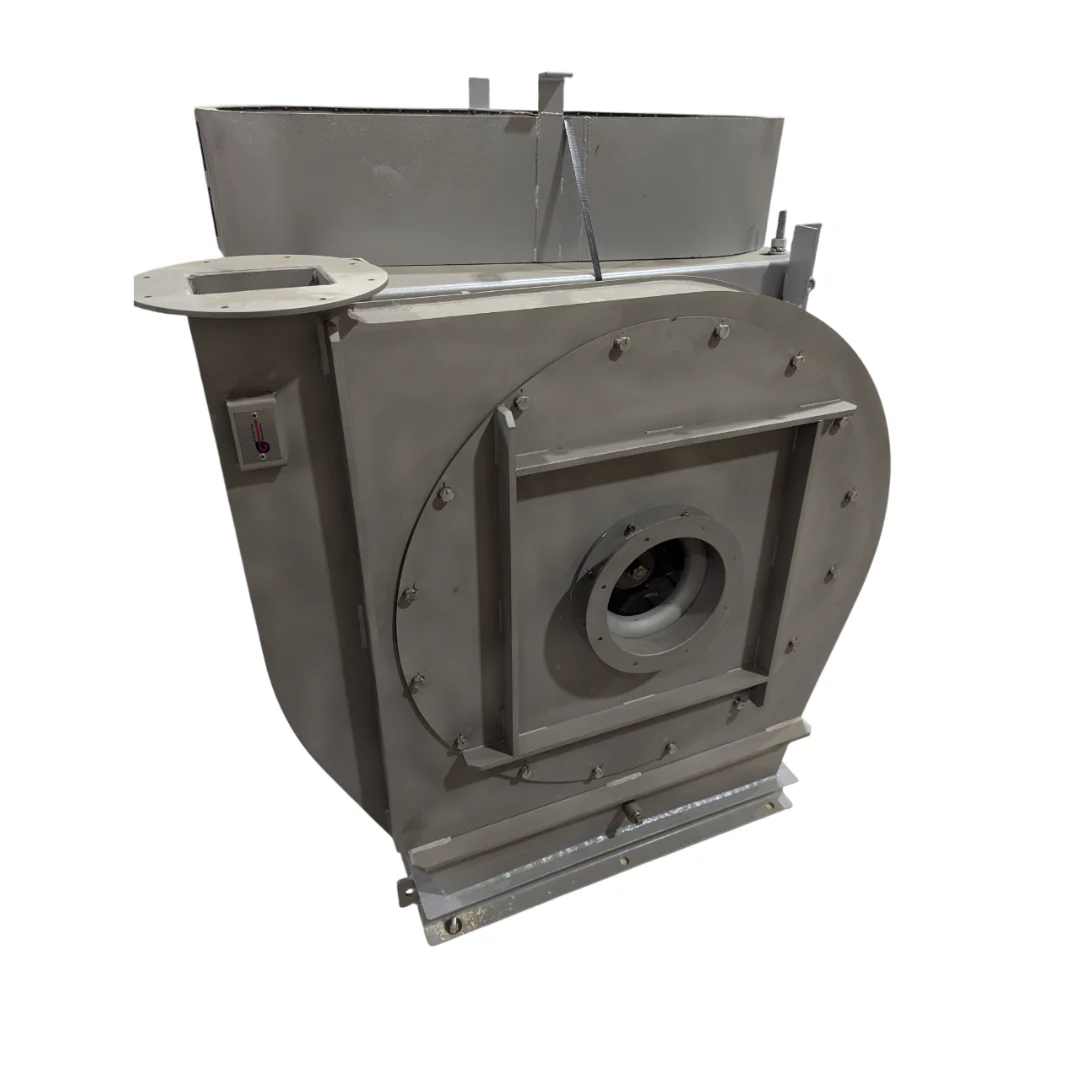

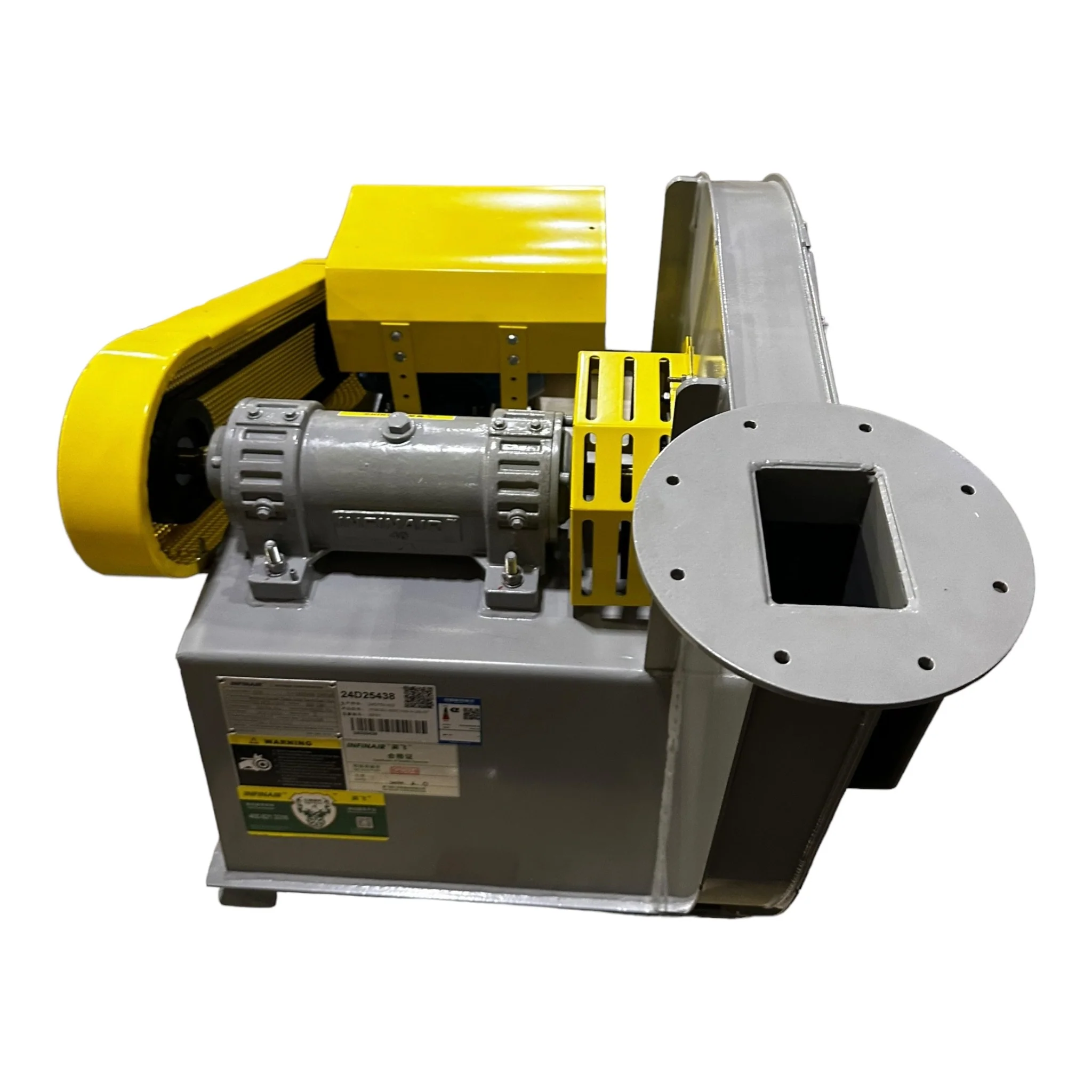

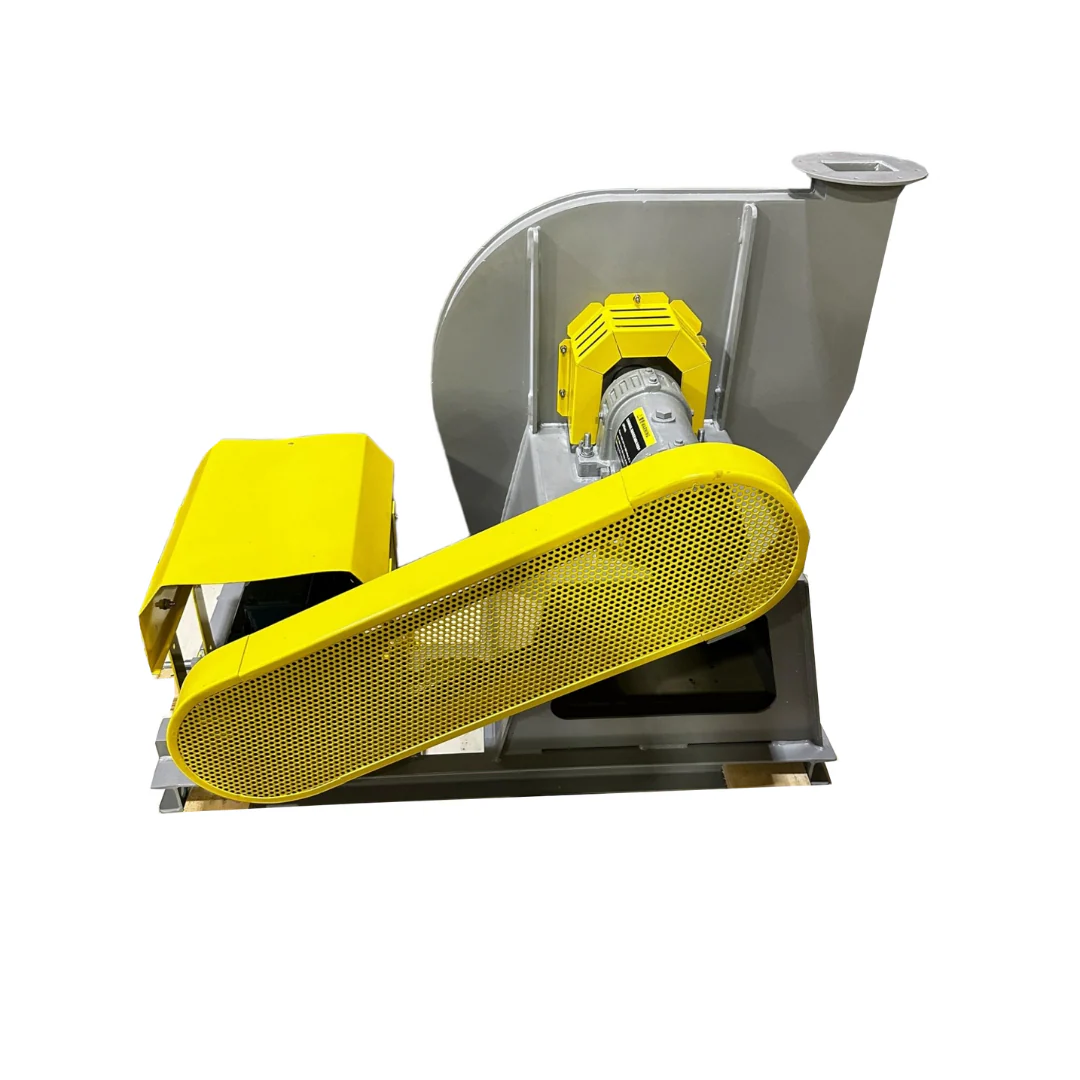

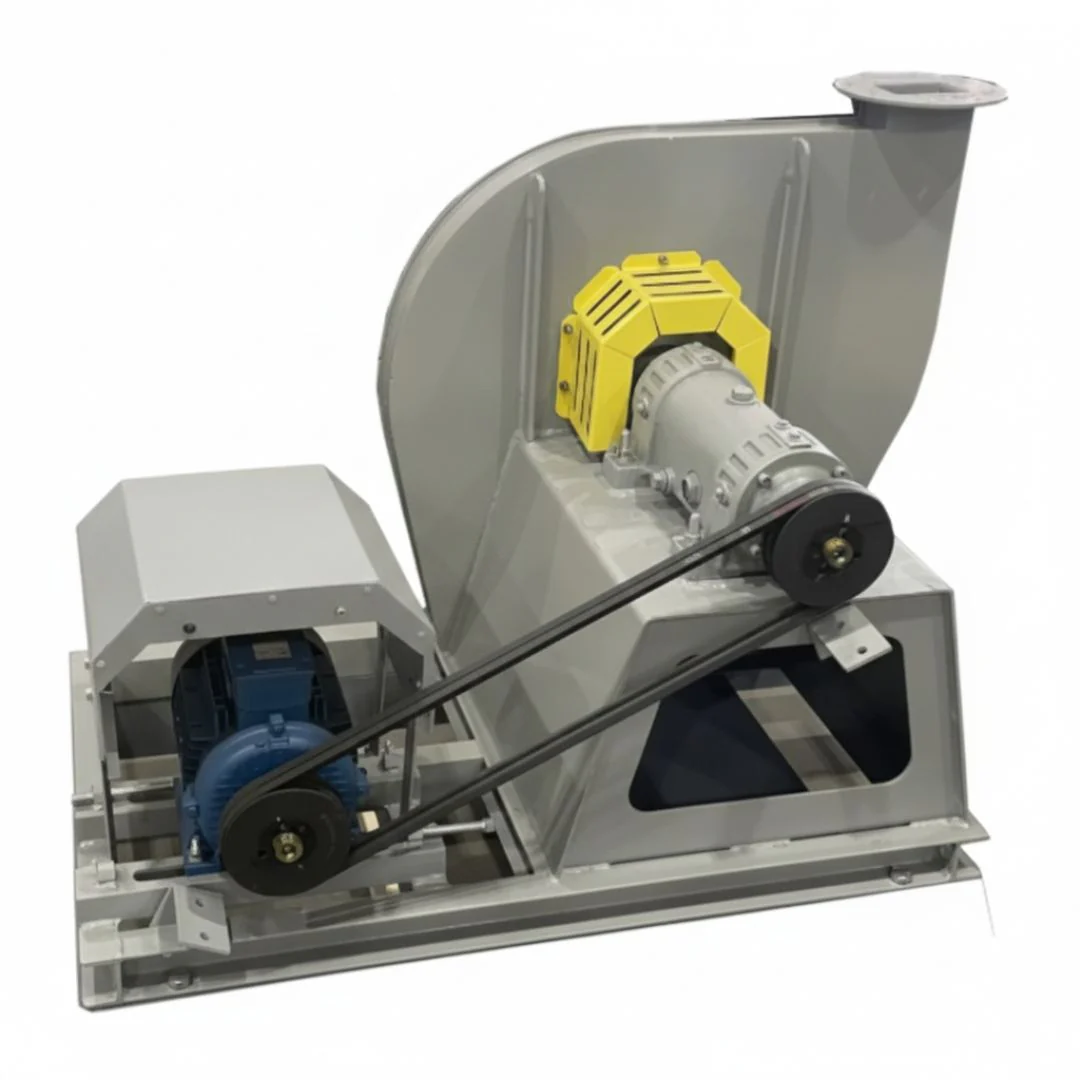

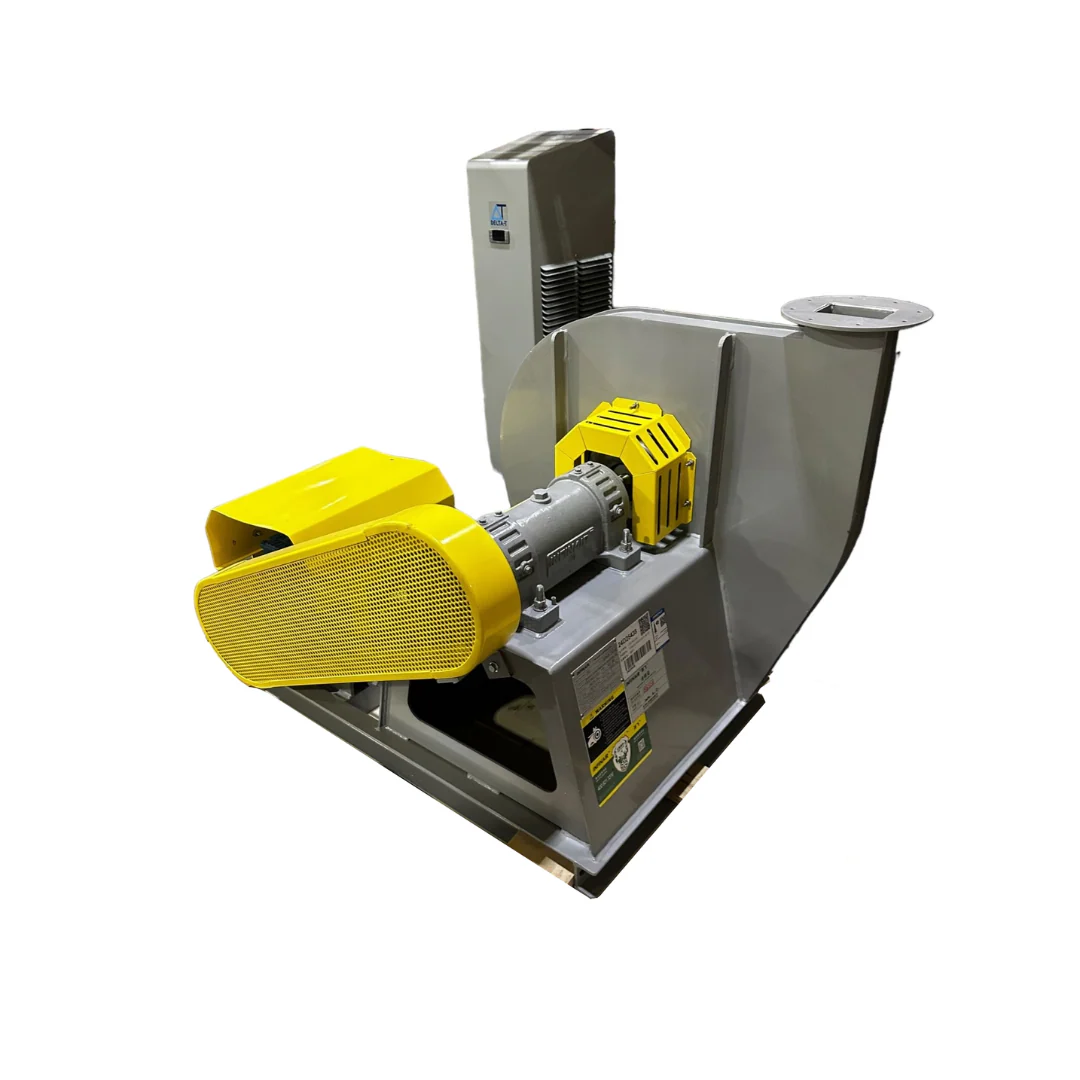

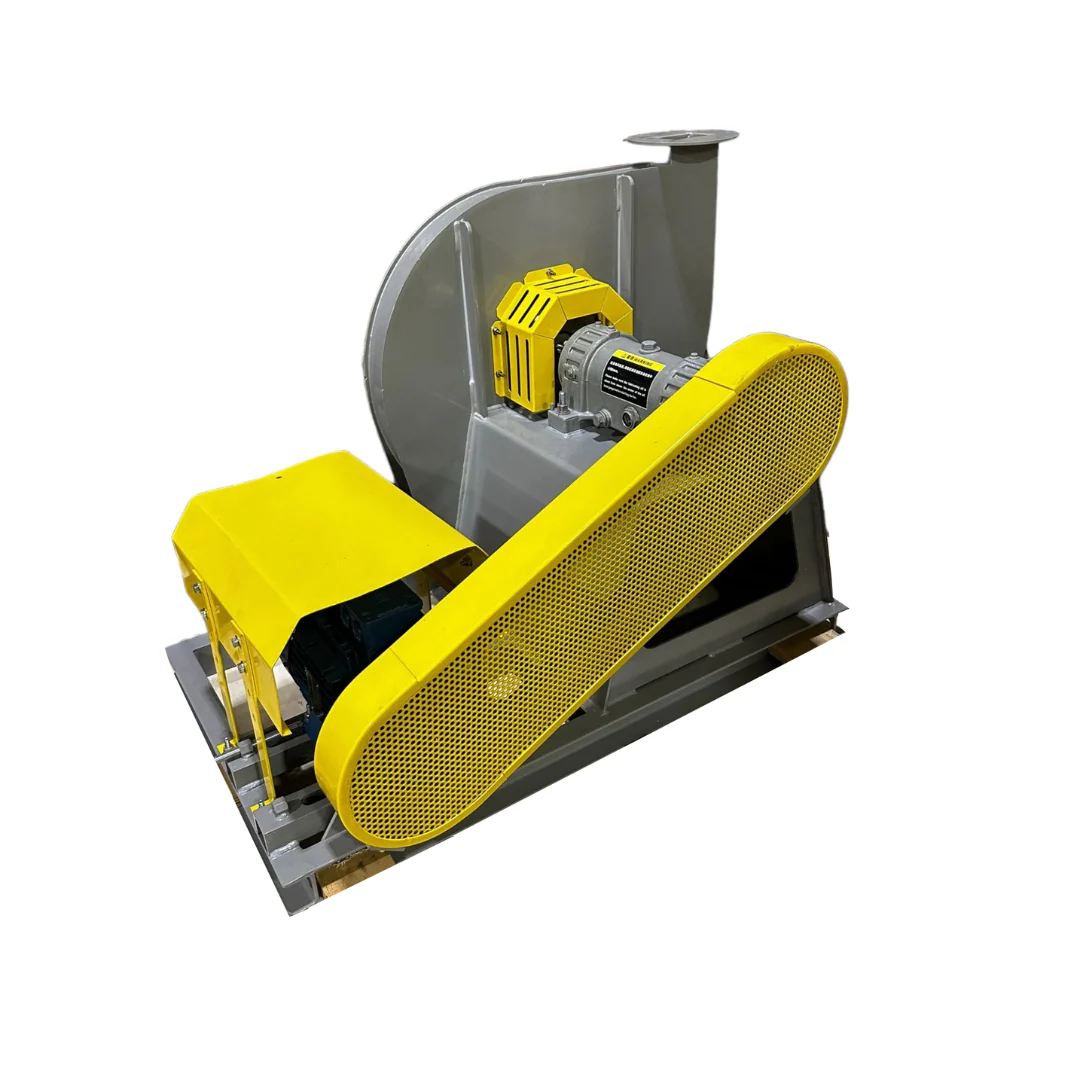

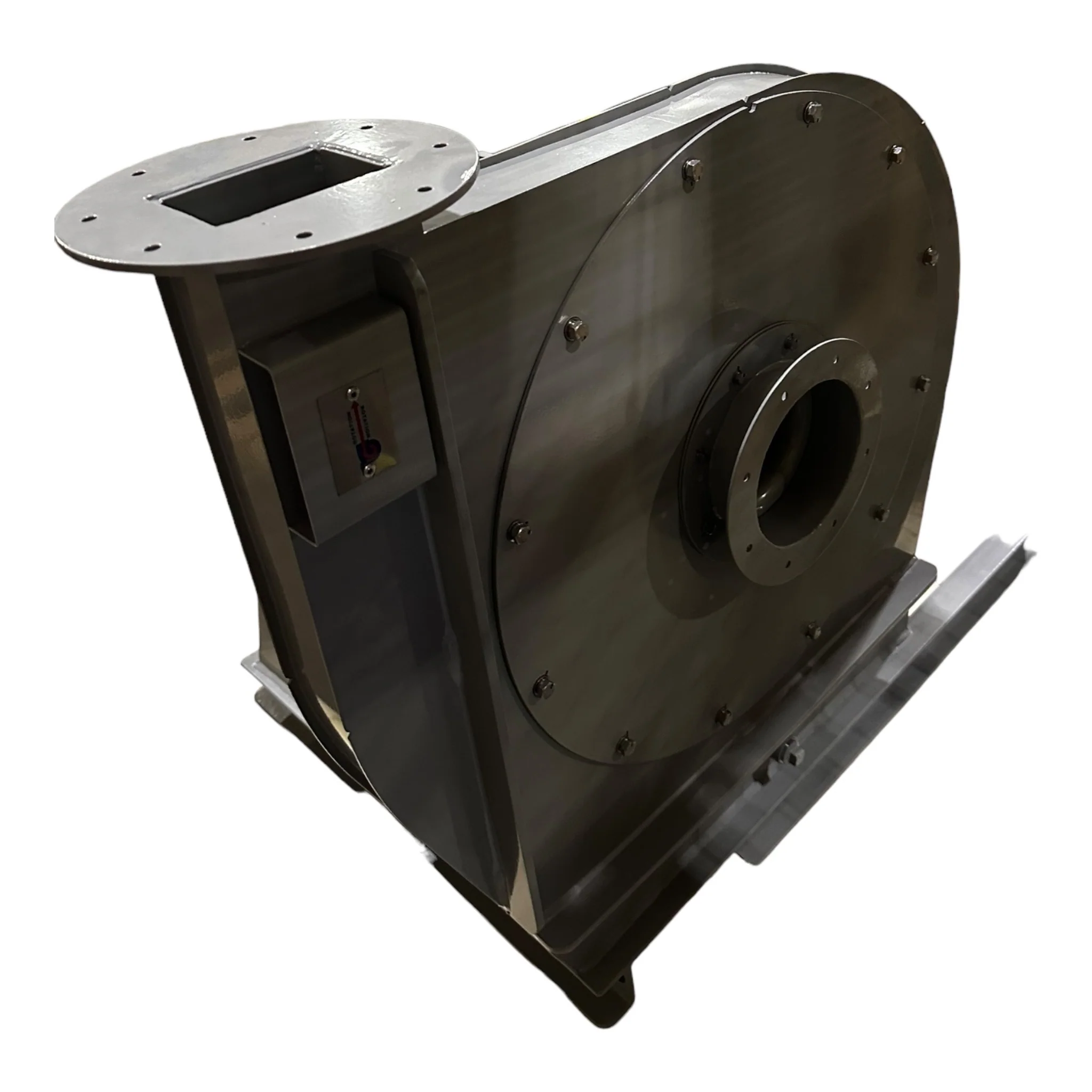

Infinair Backward Curved Centrifugal Fan, 4 HP Motor

Product image 1
1 / 6

Infinair Backward Curved Centrifugal Fan, 4 HP Motor

Infinair Backward Curved Centrifugal Fan, 4 HP Motor

  • Centrifugal Fan; Backward Single Outlet
  • UL Listed (4HP) 3KW-2P WEG Motor; 460V/60HZ/3PH
  • 316l Stainless Steel Casing & Impeller
  • Belt Driven; Mechanical Shaft Seal With Gland Packing
  • Baked Epoxy Powder Coating
  • Counter Clockwise Rotation; Upblast Discharge
  • Airflow Range: 200 ~ 9,000 m³/h (118 ~5,294 CFM)
  • Total Pressure Range: 1,500 ~ 21,000 Pa (6.02 ~84.31 in.WG.)
  • Operating Temperature: -20 ~ 450 ℃
  • Drive Type: Direct/ Belt
  • Installation Methods: Base Mount
  • Applications: Air Stripper Fans, Bio-Sparging, Low Vacuum Soil Vapor Extraction,  BioGas Removal, Vapor Mitigation.

Infinair Datasheet

$3,000.00

Original: $9,999.99

-70%
Infinair Backward Curved Centrifugal Fan, 4 HP Motor—

$9,999.99

$3,000.00

Product Information

Shipping & Returns

Description

Infinair Backward Curved Centrifugal Fan, 4 HP Motor

  • Centrifugal Fan; Backward Single Outlet
  • UL Listed (4HP) 3KW-2P WEG Motor; 460V/60HZ/3PH
  • 316l Stainless Steel Casing & Impeller
  • Belt Driven; Mechanical Shaft Seal With Gland Packing
  • Baked Epoxy Powder Coating
  • Counter Clockwise Rotation; Upblast Discharge
  • Airflow Range: 200 ~ 9,000 m³/h (118 ~5,294 CFM)
  • Total Pressure Range: 1,500 ~ 21,000 Pa (6.02 ~84.31 in.WG.)
  • Operating Temperature: -20 ~ 450 ℃
  • Drive Type: Direct/ Belt
  • Installation Methods: Base Mount
  • Applications: Air Stripper Fans, Bio-Sparging, Low Vacuum Soil Vapor Extraction,  BioGas Removal, Vapor Mitigation.

Infinair Datasheet
