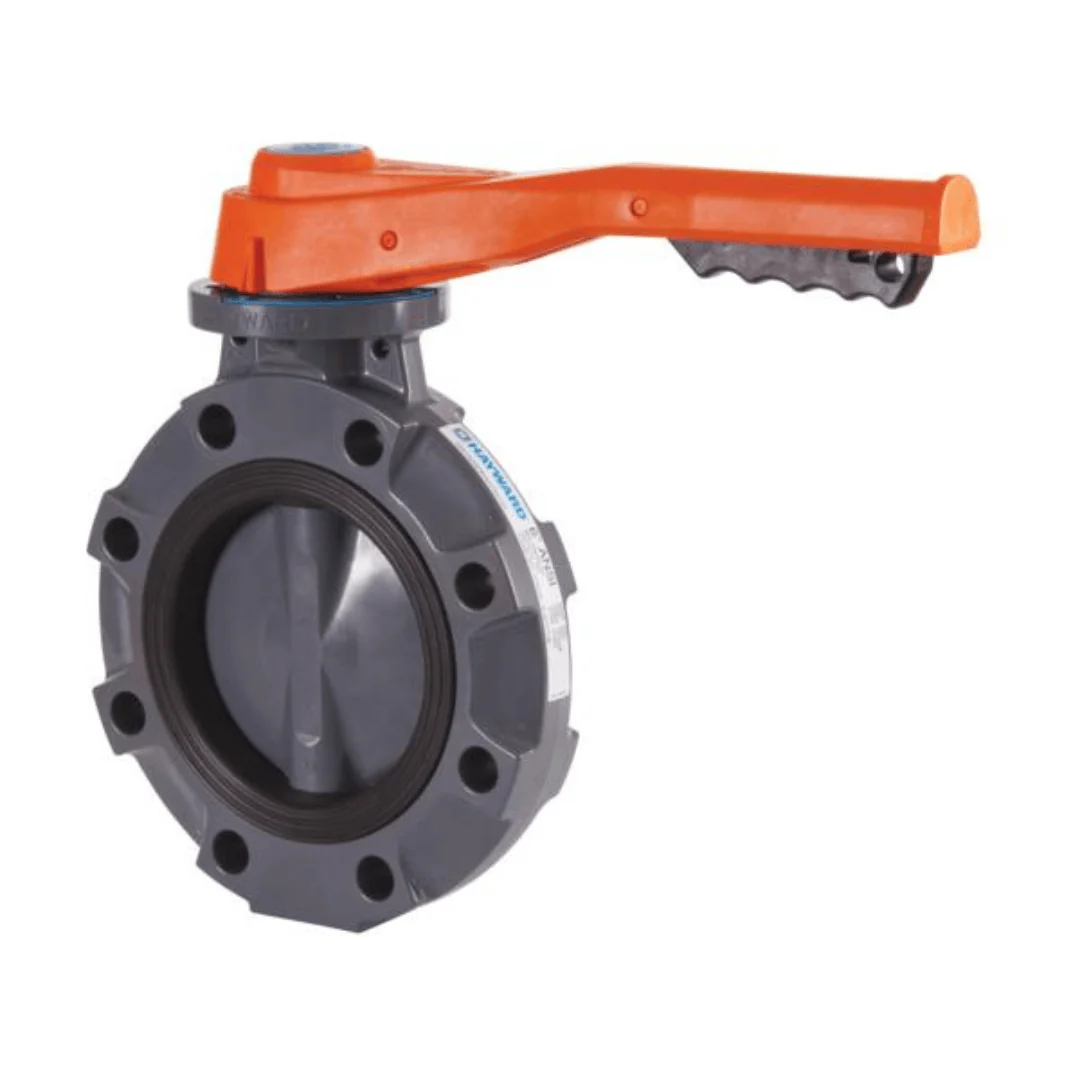

Hayward 3 Inch BYV Series PVC Butterfly Valve, Lever, Viton Seal
Hayward 3 Inch BYV Series PVC Butterfly Valve, Lever, Viton Seal - BYV11030A0VL000
The BYV series butterfly valves have extremely robust body construction while lighter weight than a metal equivalent. The revolutionary hand lever design features a 72 spline interlock mechanism allowing for 19 stopping positions every 5 degrees. Additionally, the hand leverĀ material incorporates a UV inhibitor for enhanced performance in outdoorĀ applications. The BYV Series is Made by Hayward in the USA!
Features:
ā¢ One Piece Injection Molded PVC, CPVC or GFPP Body
ā¢ PVC, CPVC or GFPP Disc Materials
ā¢ Hand Lever with 19 Lockable Stop Positions & 360Ā° Interlocking Splines
ā¢ External Disc Position and Flow Indication
ā¢ Hydro-dynamic Centric Disc for Increased Flow Performance
ā¢ Over-Sized Liner Face Maximizes Surface Contact with Flanges
ā¢ 1-Piece 316 Stainless Steel Stem with Threaded Retaining Gland
ā¢ Stem Bearing and Seal Retainer for Absolute Stem Position and Seal
Certifications:
- ISO 5211 Top Flange and Stem Drive
- All Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
- Pressure Rated at 150 PSI/10 Bar in All Sizes @ 70Ā°F Non-Shock
- NSF / ANSI 61 and NSF / ANSI 372 ListedĀ
