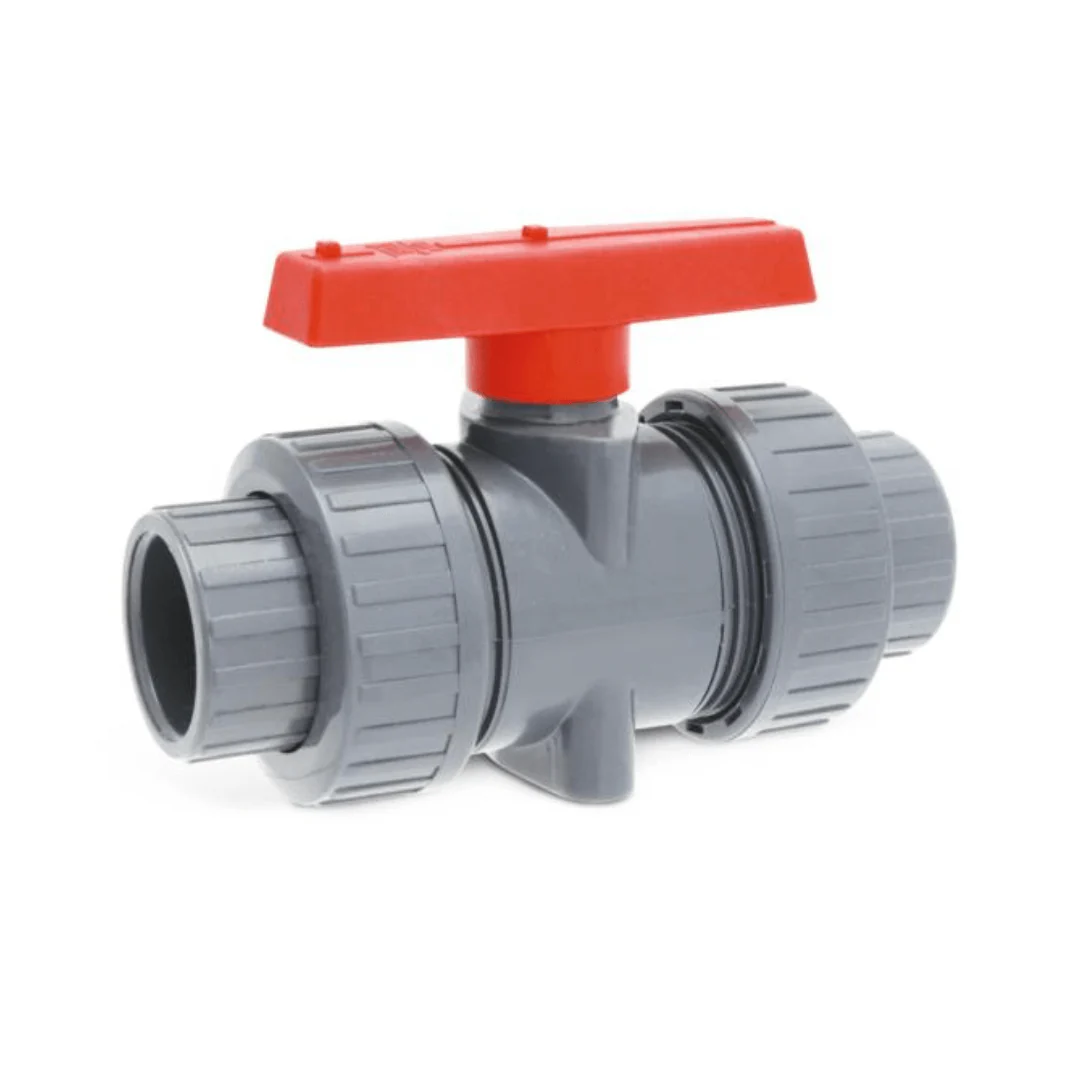

Hayward 3/4 Inch TBB Series CPVC True Union Ball Valve, Socket/Threaded, FPM Seals - TBB2007CPFG

TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF. O-rings are FPM or EPDM. Up to 2 in. sizes have socket and threaded end connections. All seats are PTFE.

Features:

•   PVC, CPVC, PP and PVDF Materials
•   Full Port Design
•   FPM or EPDM Seals
•   PTFE Seats
•   Double O-Ring Stem Seals
•   Adjustable Seat Retainer

Material Classes

•   PVC Cell Class 12454 per ASTM D1784
•   CPVC Cell Class 23447 per ASTM D1784
•   GFPP Cell Class 85580 per ASTM D4101
•   PVDF
•   FPM and EPDM O-Ring Seals

Hayward Valve Datasheet
