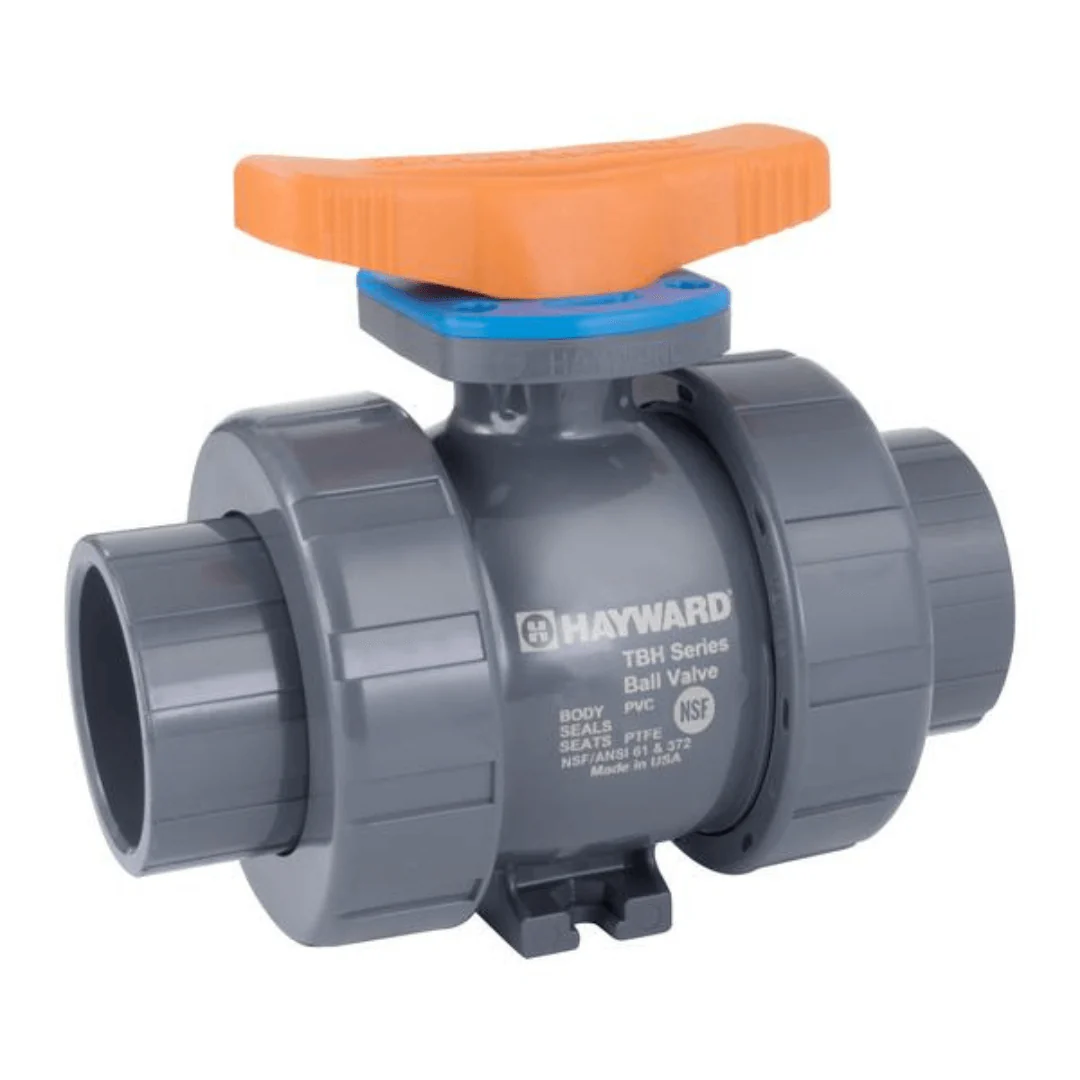

Hayward 1-1/4 Inch TBH Series PVC True Union Ball Valve, Socket - TBH1125ASTV0000

A new generation of thermoplastic floating ball valves. The TBH Series features a
low maintenance design with new patent pending System2™ Sealing Technology.
Assisting users in protecting property and life, a standard integral lock-out
feature secures onto the body of the valve. Actuator ready design with ISO 5211
pattern – on all sizes. The TBH Series is Made by Hayward in the USA!

Features:

•   Full 250 psi / PN16 Rating up to 2”/DN50 and 235psi/PN16, Non-Shock at 70°F/23°C.
•   Integral ISO 5211 Mounting Pad for Easy Actuation
•   Standard Lock-Out Plate, Lock-Out / Tag-Out for up to 4 Locks
•   System2™ Sealing Technology Seat Carrier Design for sizes up to 2”/DN50– Patent Pending
•   Permanent Laser Markings, Eliminates Labels
•   System friendly "Molded-In" Footpad for Skid or Panel Mount
•   UV Resistant Sure Grip Ergonomic Handle
•   FPM or EPDM Seals
•   Double O-Ring Stem Seals
•   Reversible PTFE Seats - Standard
•   Easy Replacement for Existing Hayward TB Series

Hayward Datasheet
