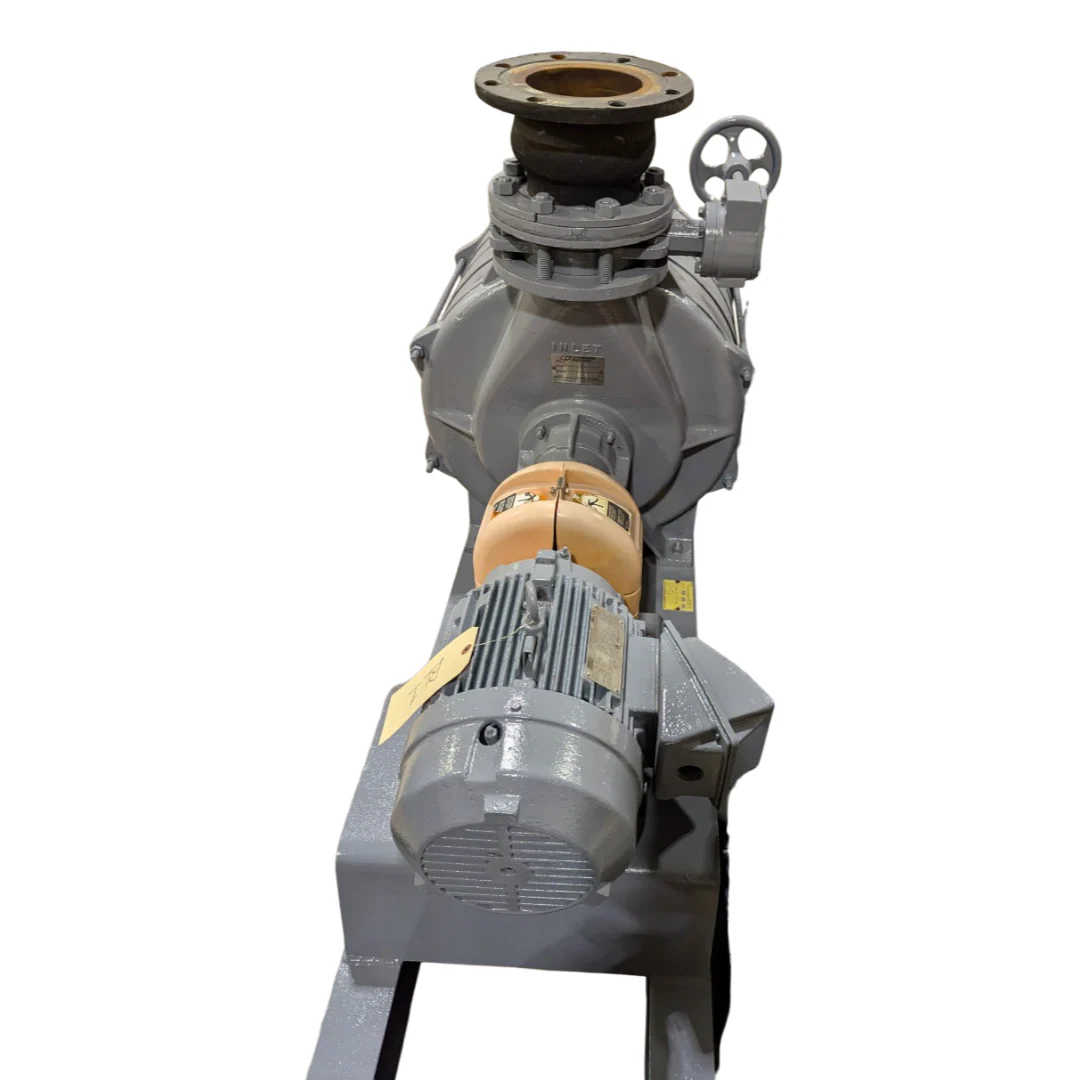

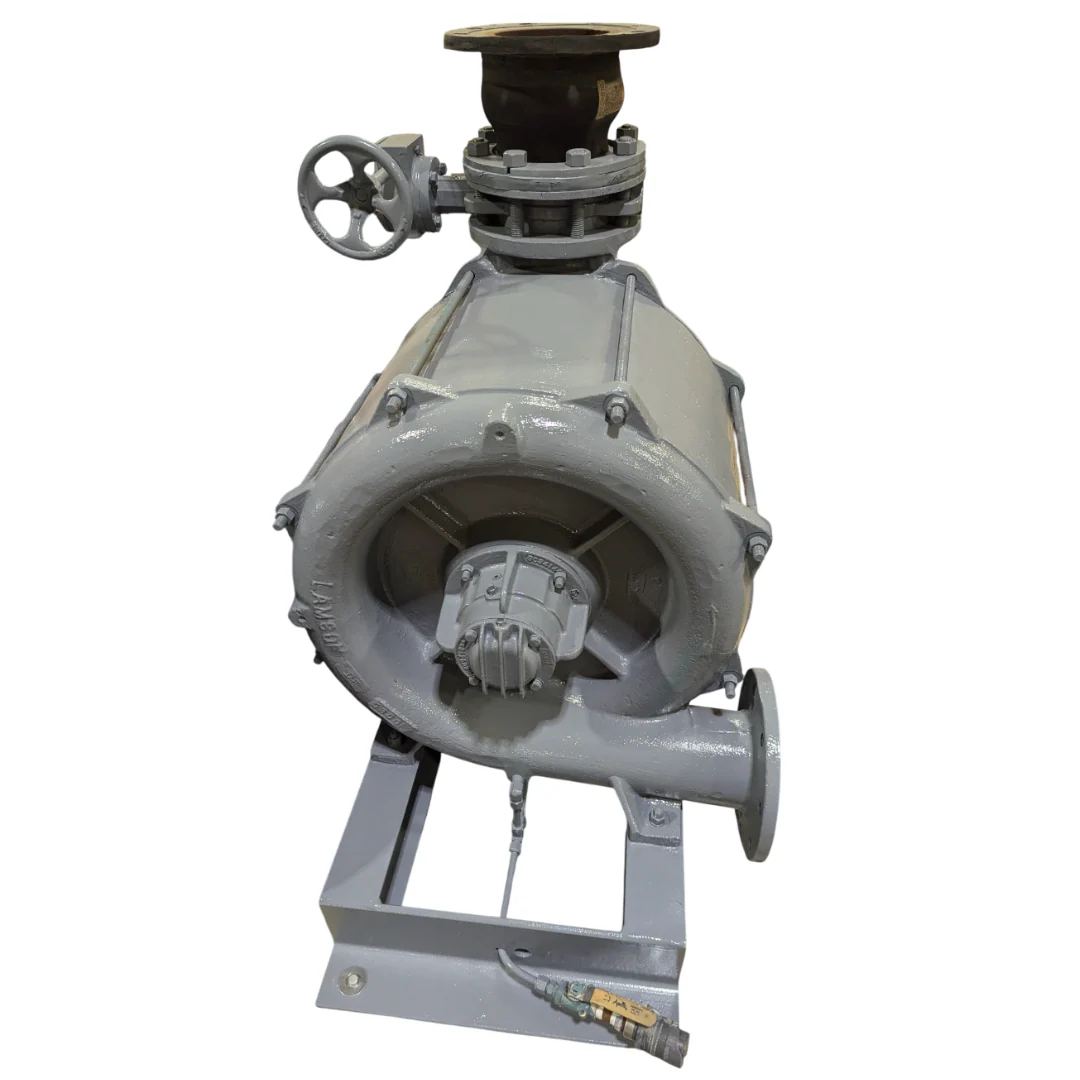

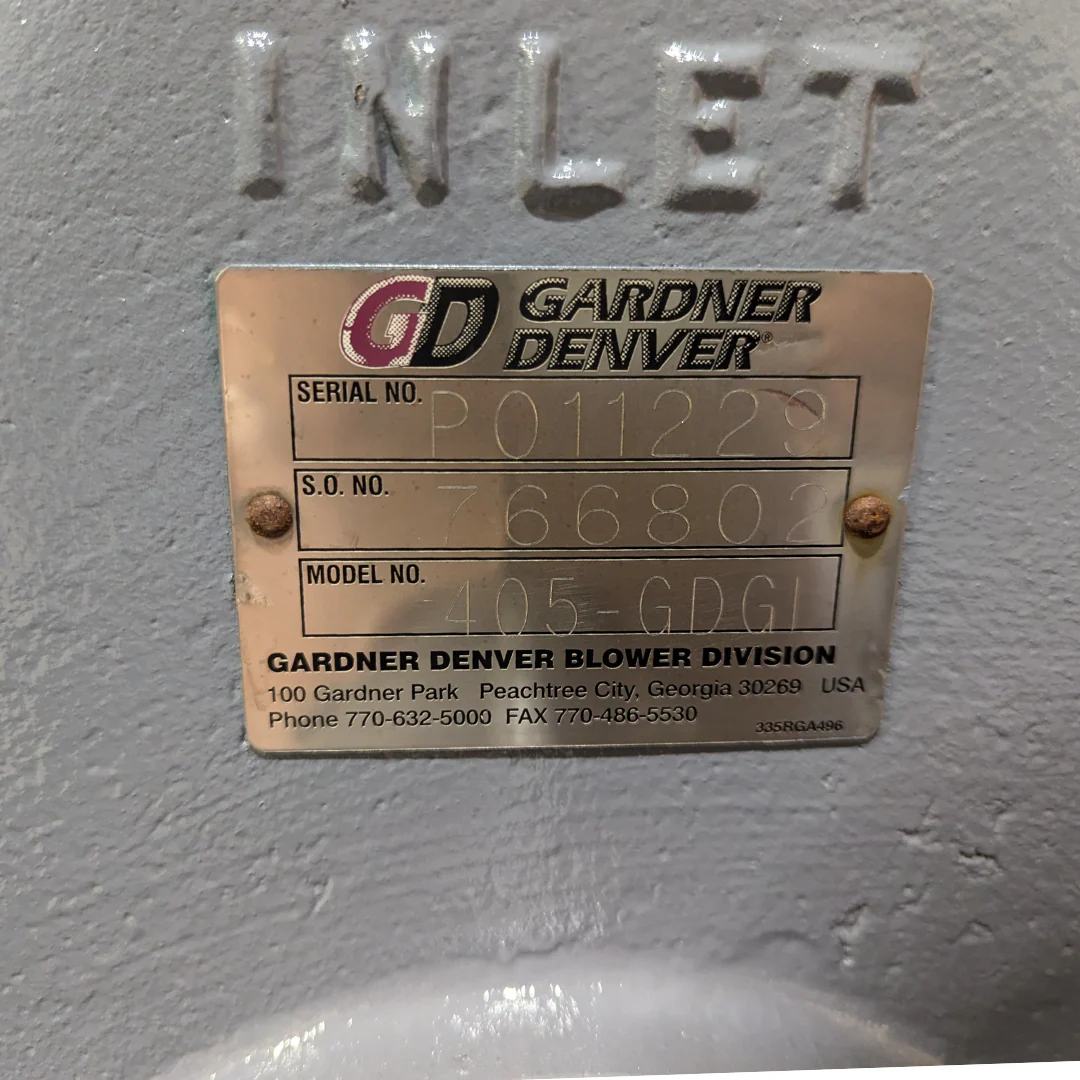

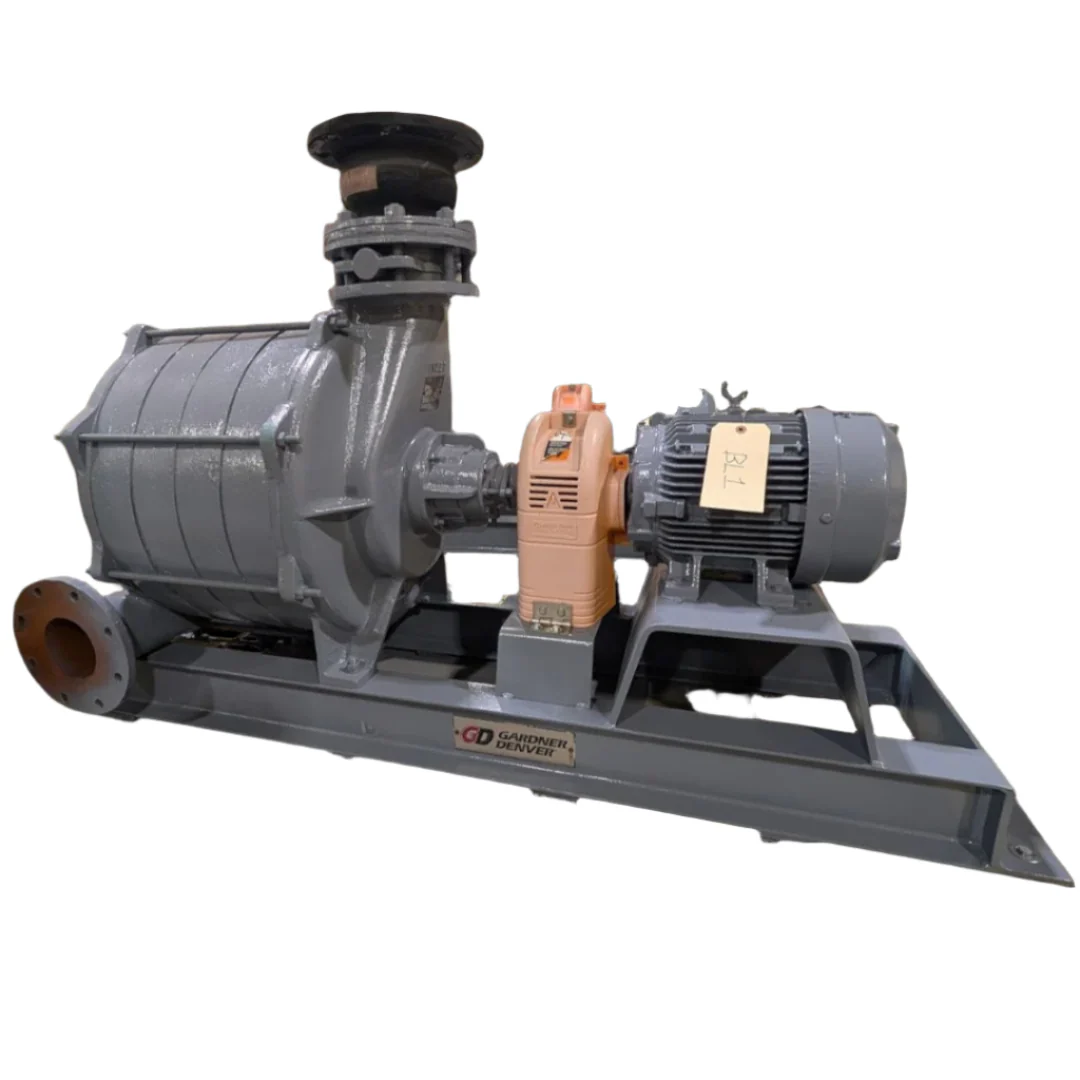

Gardner-Denver Multi-Stage Centrifugal Blower Package

Refurbished Gardner-Denver Multistage Centrifugal Blower Package. Blowers have been refurbished, and fully tested. Blower features a Heresite coating for corrosion resistance and sealed bearings for smooth operation.

Operators Manual

Blower Technical and Performance Data

Blower Dimension Data

Blower Specifications:

• Heresite Coating
• Inlet: 5" Flange, ANSI 125# - Standard Position #1
• Outlet: 5" Flange, ANSI 125# - Bottom Horizontal Position #3
• Operating Speed - 3540 RPM (60 Hz)
• Inlet Pressure/Vacuum - 12.9 PSIA
• Discharge Pressure 0.36 PSIA
• Capacity 300 SCFM
• Discharge Temperature 142 Deg F

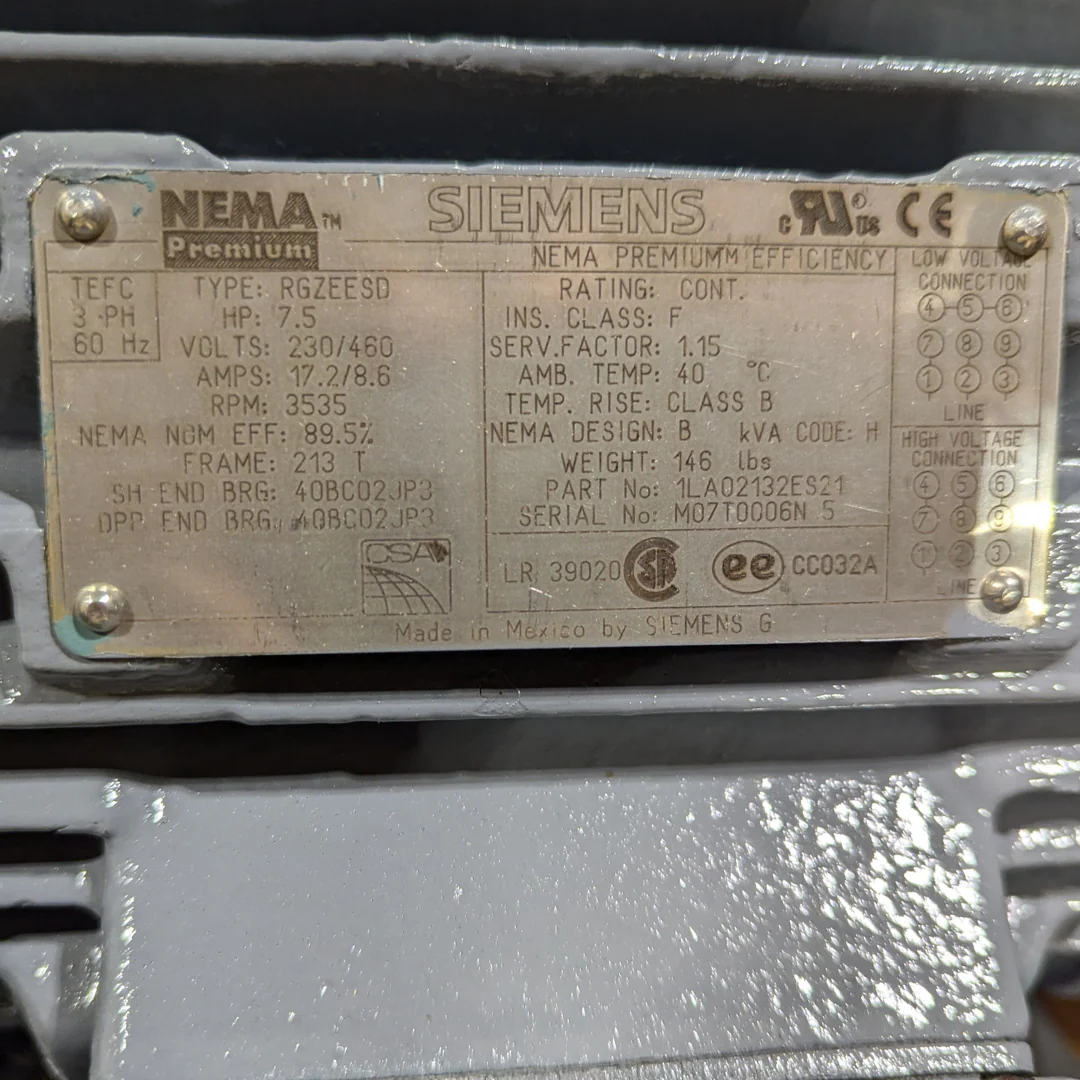

Motor Specifications:

• TEFC
• 3 Phase
• 60 Hz
• 7.5 HP
• 230/460 Volt
• 17.2/8.6 AMP
• 3535 RPM
• Nema Premium
