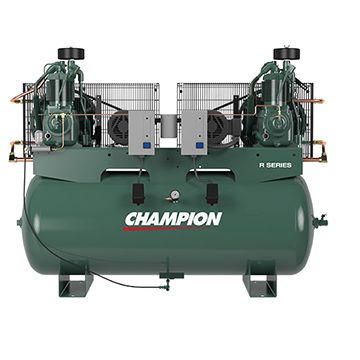

Champion Advantage Duplex 7.5 HP Piston/Two Stage Air Compressor 51.2 ACFM @ 175 PSI, Horizontal 120 Gallon Air Tank, 460 Volt, 3-Phase

The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

Advantage Standard Features:

• Mounted Nema 1 Control Panel
• Vibration Isolators
• 1800 RPM Motor
• Low Oil Stop Control
• ASME Coded Receiver
• Electric Auto Tank Drain
• Loadless Starting
• Enclosed Belt Guard
• Intake Filter
• Start/Stop Pressure Switch Control

Product Specification

• Controls: Start/Stop Operation
• Horsepower: 7.5 HP
• Max Pressure: 175 PSI
• Pump Model: R-30
• Pump RPM 570

Power Requirements

 **PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING**

• 460/3/60 Standard Voltage
• 3-Phase

Dimensions

• 83" x 30" x 56" (L x W x H)
• Weight: 1305 lbs.

Air Tank

• Air Tank Configuration: Horizontal
• 120 Gallon Air Tank Size
• ASME Coded
