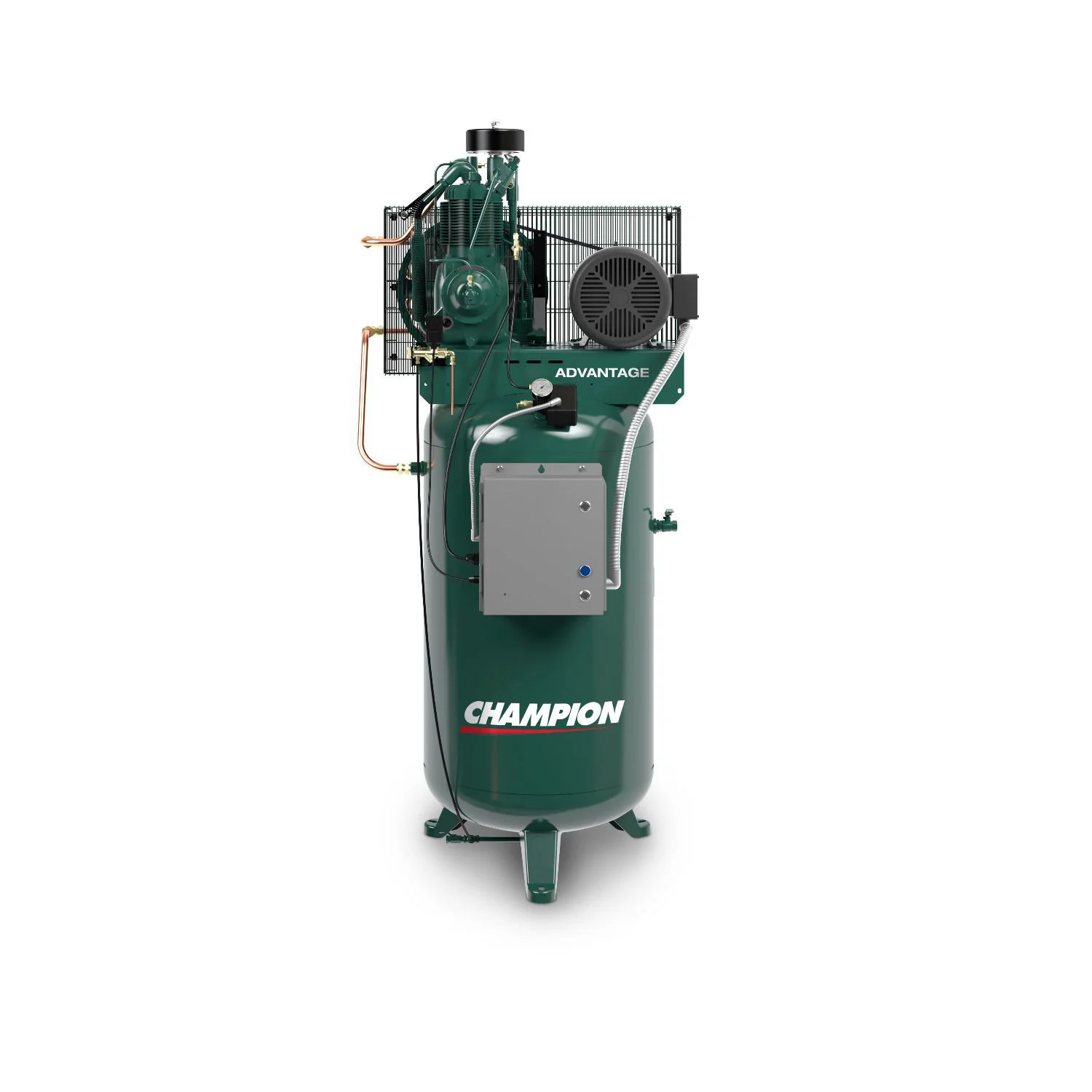

Champion Advantage 7.5 HP Piston-Two-Stage Air Compressor 22.3 CFM @ 175 PSI, 80 Gallon Air Tank | VR7F-8

The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

Advantage Standard Features:

• Mounted Nema 1 Control Panel
• Vibration Isolators
• 1800 RPM Motor
• Low Oil Stop Control
• ASME Coded Receiver
• Electric Auto Tank Drain
• Loadless Starting
• Enclosed Belt Guard
• Intake Filter
• Start/Stop Pressure Switch Control
• California Compliant

Additional Features:

• After Cooler
• Low Level Oil Switch
• Magnetic Starter

Product Specification

• Capacity: 22.3 CFM @ 175 PSI
• Controls: Start/Stop Operation
• Horsepower: 7.5 HP
• Max Pressure: 175 PSI
• Number of Cylinders: 2
• Pump Drive: Belt
• Pump Model: R-15
• Pump RPM: 949
• Pump Type: Splash Lubricated

Power Requirements

**PLEASE CONFIRM CORRECT VOLTAGE/PHASE WHEN ORDERING**

• 208/230/1/60 Standard Voltage, 40 Full Load Running Amps
• 3-Phase

Dimensions

• 31" x 24" x 75" (L x W x H)
• Weight: 630 lbs.

Air Tank

• Air Tank Configuration: Vertical
• 80 Gallon Air Tank Size
• ASME Coded
