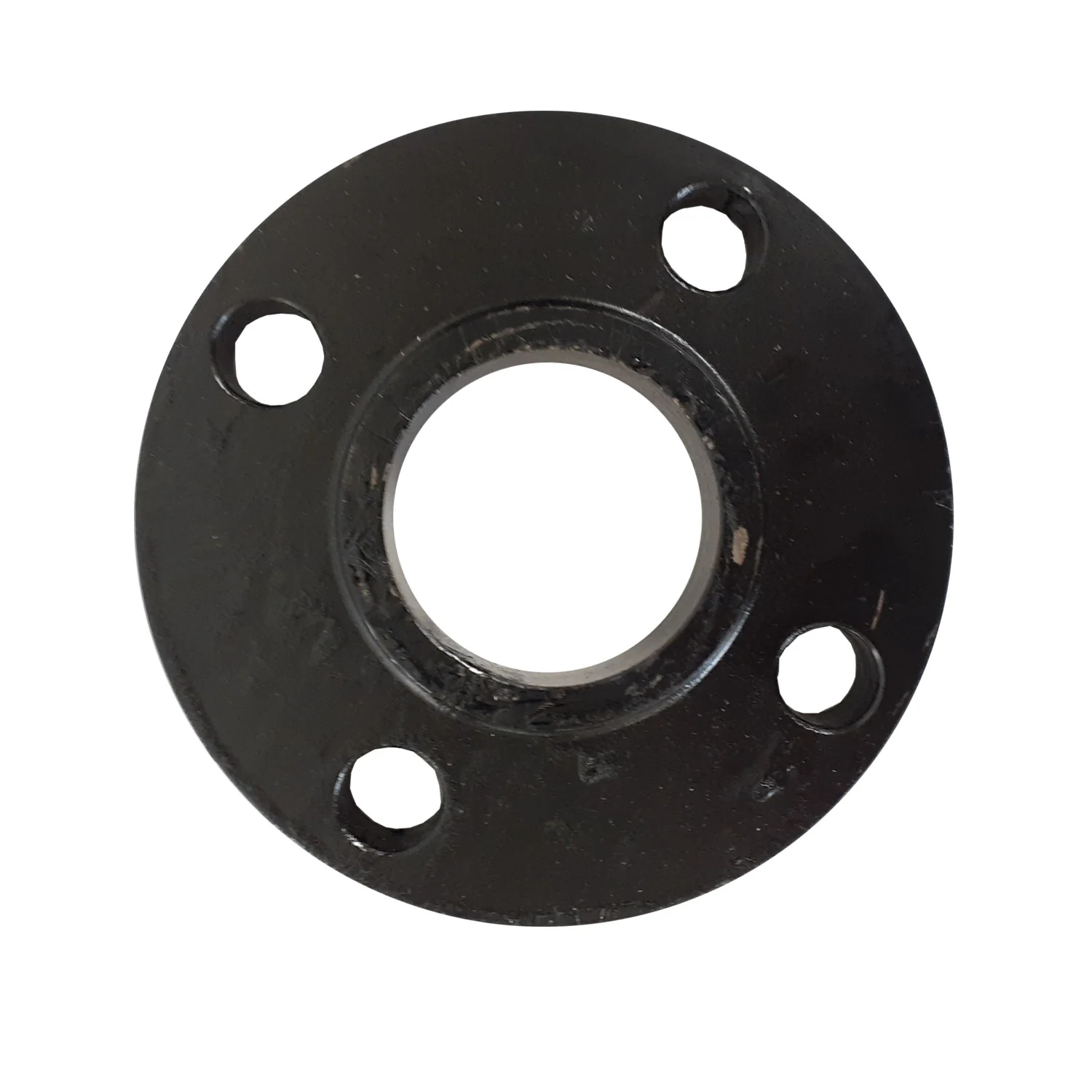

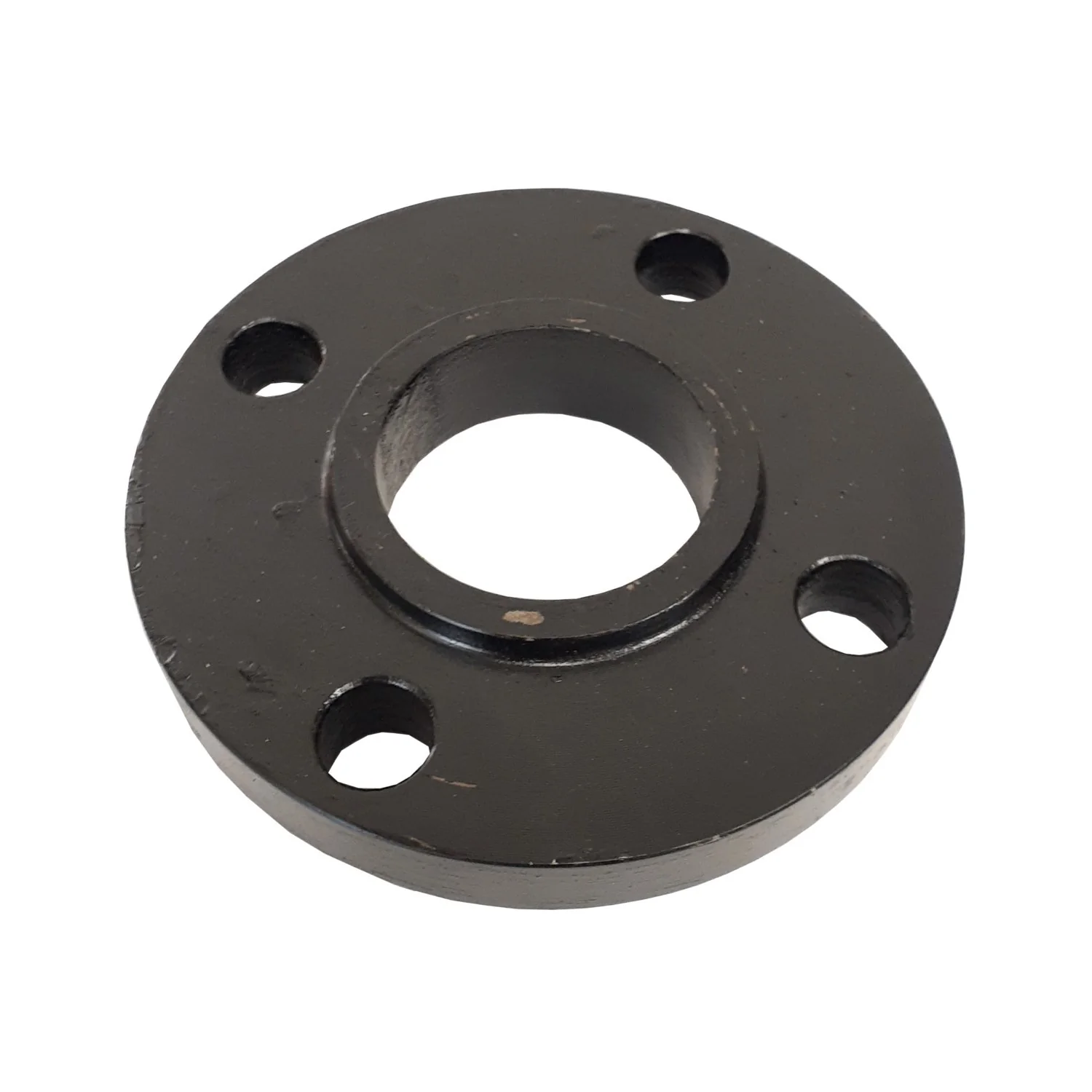

Carbon Steel Slip On Flange, 2 Inch Pipe Size , Weld, Raised Face, ANSI Class 150

Product image 1
1 / 2

Carbon Steel Slip On Flange, 2 Inch Pipe Size , Weld, Raised Face, ANSI Class 150

Carbon Steel Slip-On Flange, 2 Inch , Weld, Class 150

Slip On Flanges: (Raised Face, 150#)
A slip-on flange is connected to the pipe or the fittings by two fillet welds, one executed inside and one outside the cavity of the flange. The bore size of a slip-on flange is larger than the outside diameter of the connecting pipe, as the pipe has to slide inside the flange to be connected by the execution of a fillet weld.

Specifications:

Flange: Slip-On
Material: Black Steel
Fitting Schedule/Class: Class 150
Fitting Connection Type: Weld
Standards: ASME B16.5, ASTM A-105
Max. Pressure: 150 psi
Available Sizes: 1", 1-1/4", 1-1/2", 2", 3", 4", 6", 8"

$4.27

Original: $14.25

-70%
Carbon Steel Slip On Flange, 2 Inch Pipe Size , Weld, Raised Face, ANSI Class 150—

$14.25

$4.27

Product Information

Shipping & Returns

Description

Carbon Steel Slip-On Flange, 2 Inch , Weld, Class 150

Slip On Flanges: (Raised Face, 150#)
A slip-on flange is connected to the pipe or the fittings by two fillet welds, one executed inside and one outside the cavity of the flange. The bore size of a slip-on flange is larger than the outside diameter of the connecting pipe, as the pipe has to slide inside the flange to be connected by the execution of a fillet weld.

Specifications:

Flange: Slip-On
Material: Black Steel
Fitting Schedule/Class: Class 150
Fitting Connection Type: Weld
Standards: ASME B16.5, ASTM A-105
Max. Pressure: 150 psi
Available Sizes: 1", 1-1/4", 1-1/2", 2", 3", 4", 6", 8"
