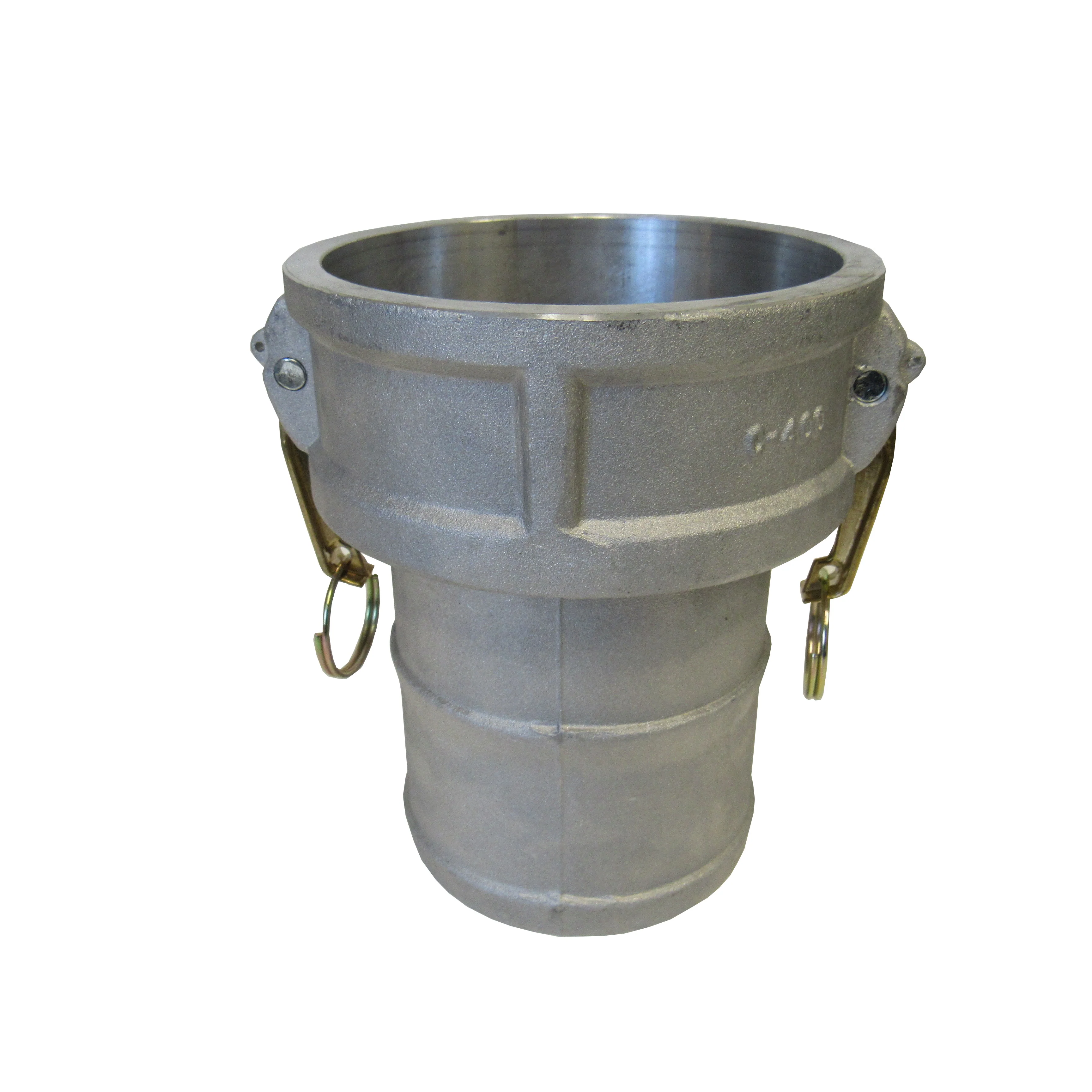

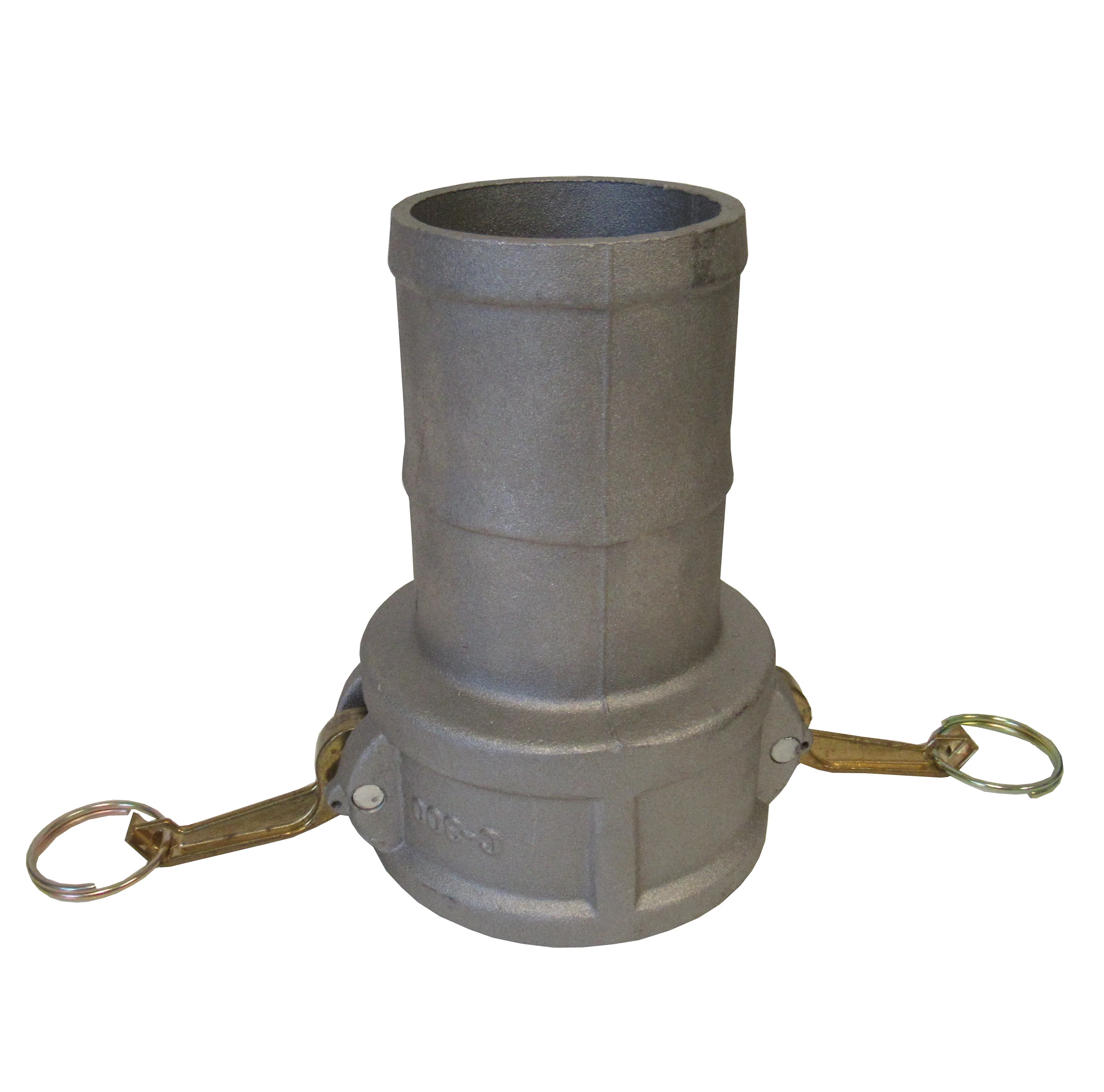

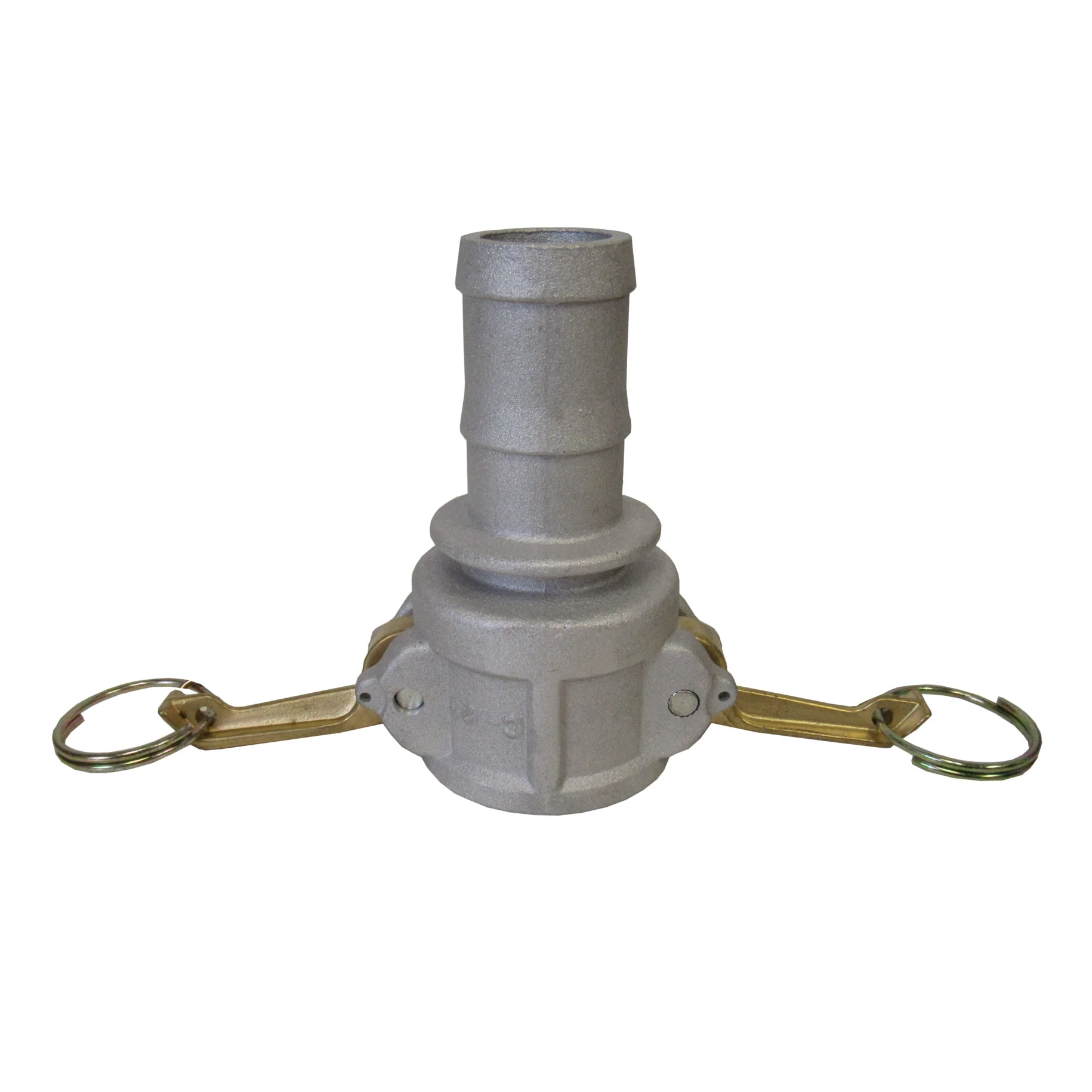

FEMALE CAM LOCK COUPLER / HOSE FITTING

• Straight body with two openings for connecting hose to pipe
• One female NPT cam coupler end for connecting to male shank for connecting to hose
• Aluminum for strength and resistance to abrasion, corrosion, and chemicals.
• Coupling Type: C
• Maximum operating pressure (@70° F):
  3/4 inch - 2 inch : 250 psi
  3 inch - 4 inch : 150 psi
  6 inch : 75 psi
• Maximum Temperature: 185° F
• Gasket Material: NBR
• Available in 3/4", 1", 1-1/4", 2", 3", 4", 6" sizes

This cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others.

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
