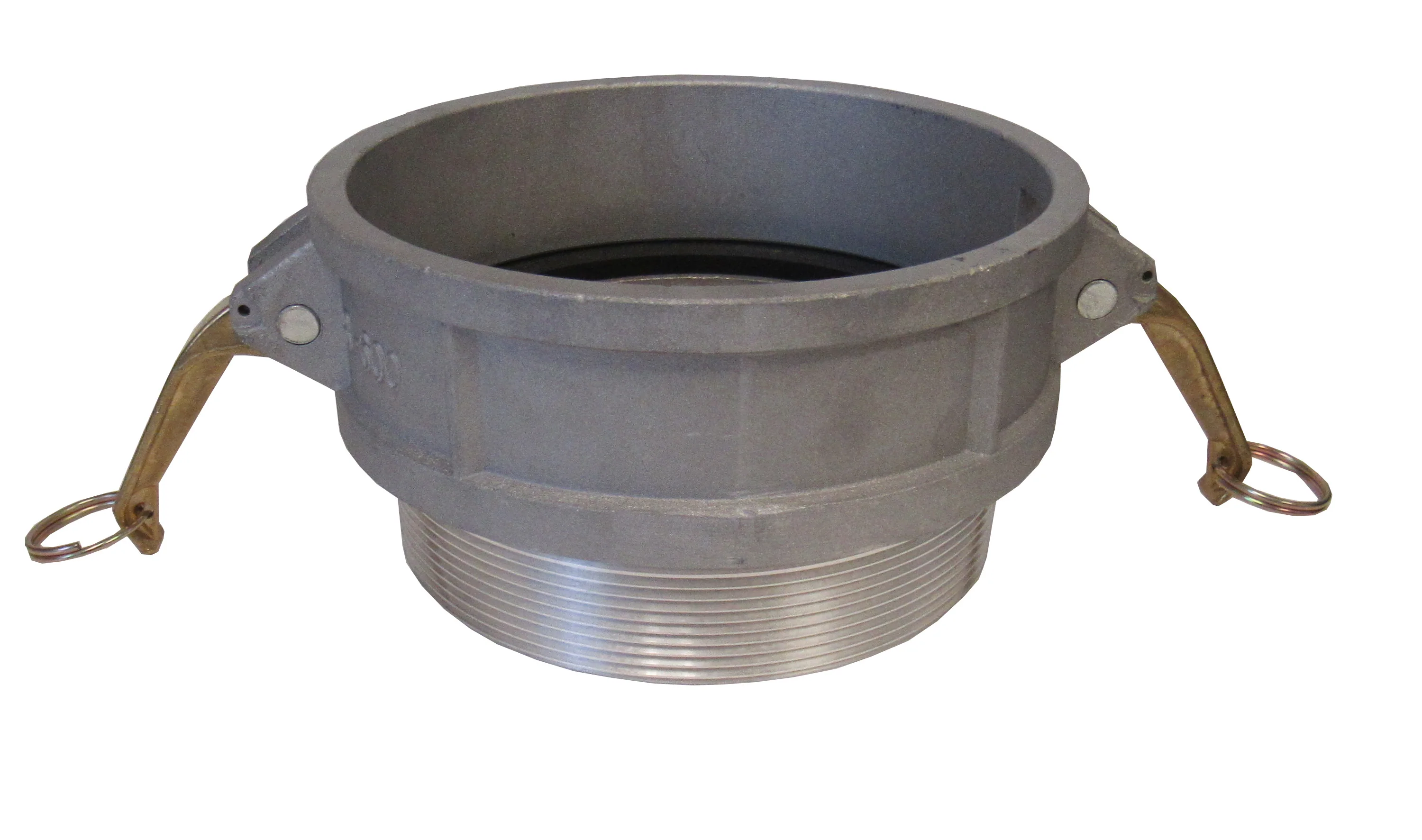

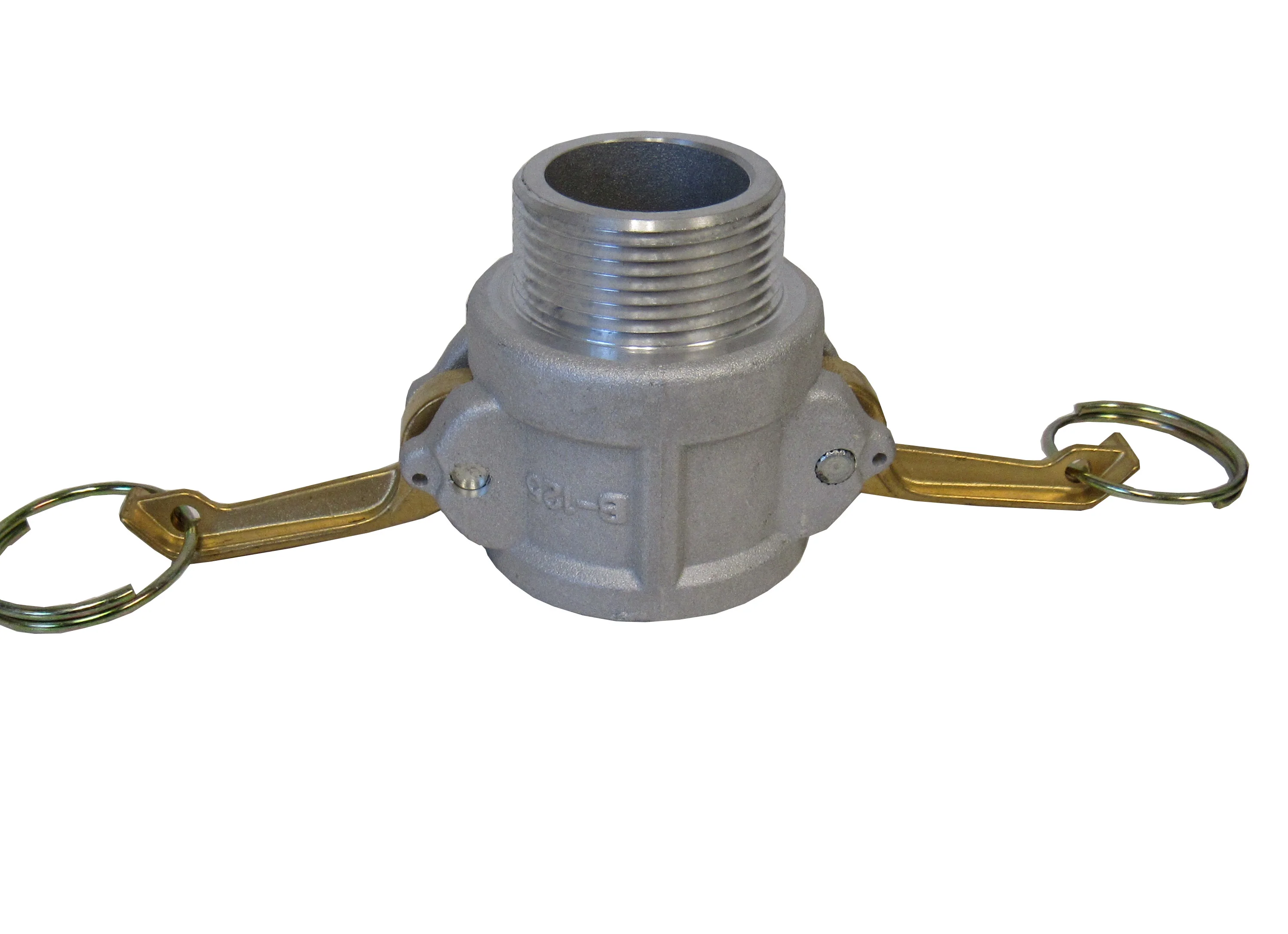

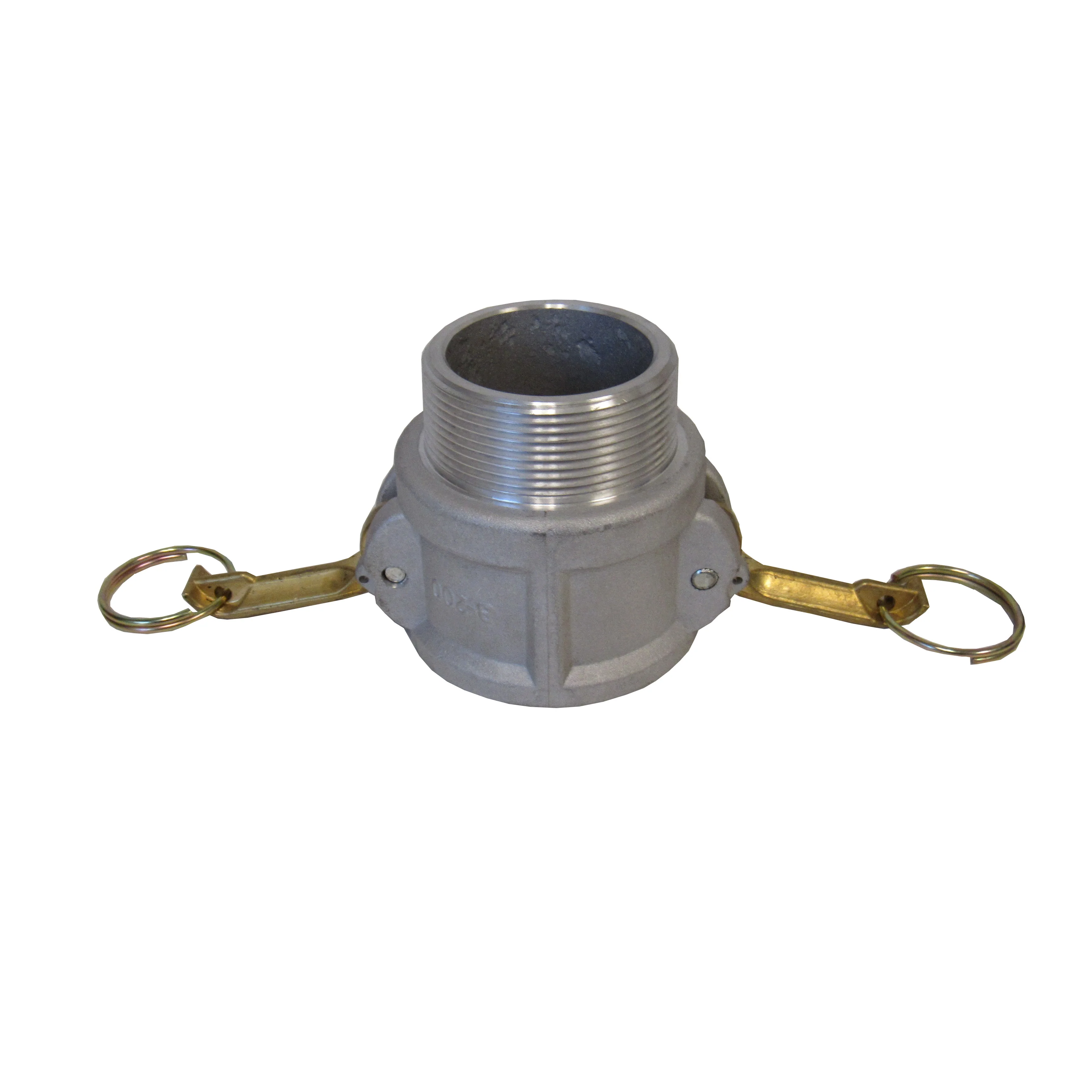

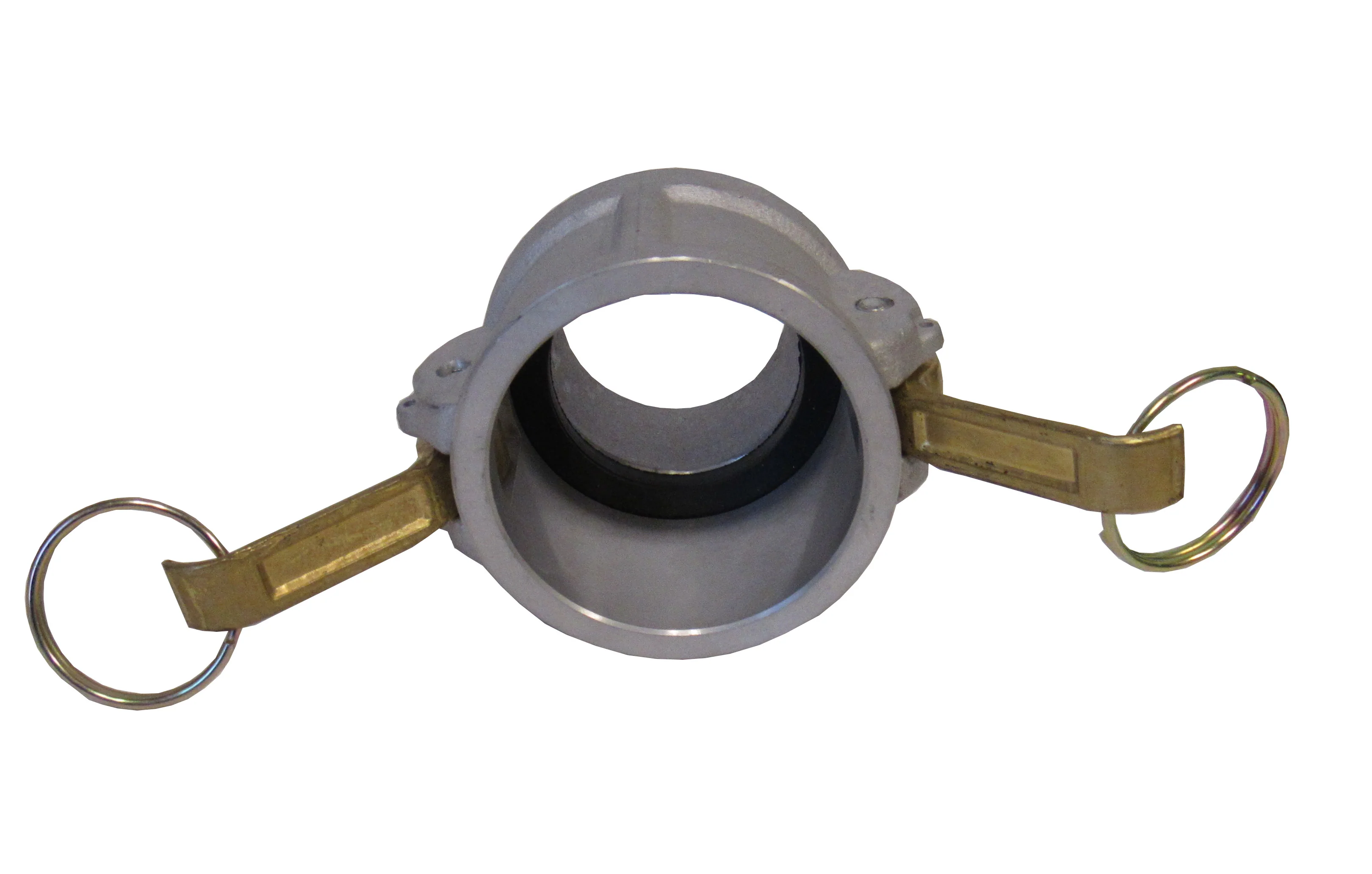

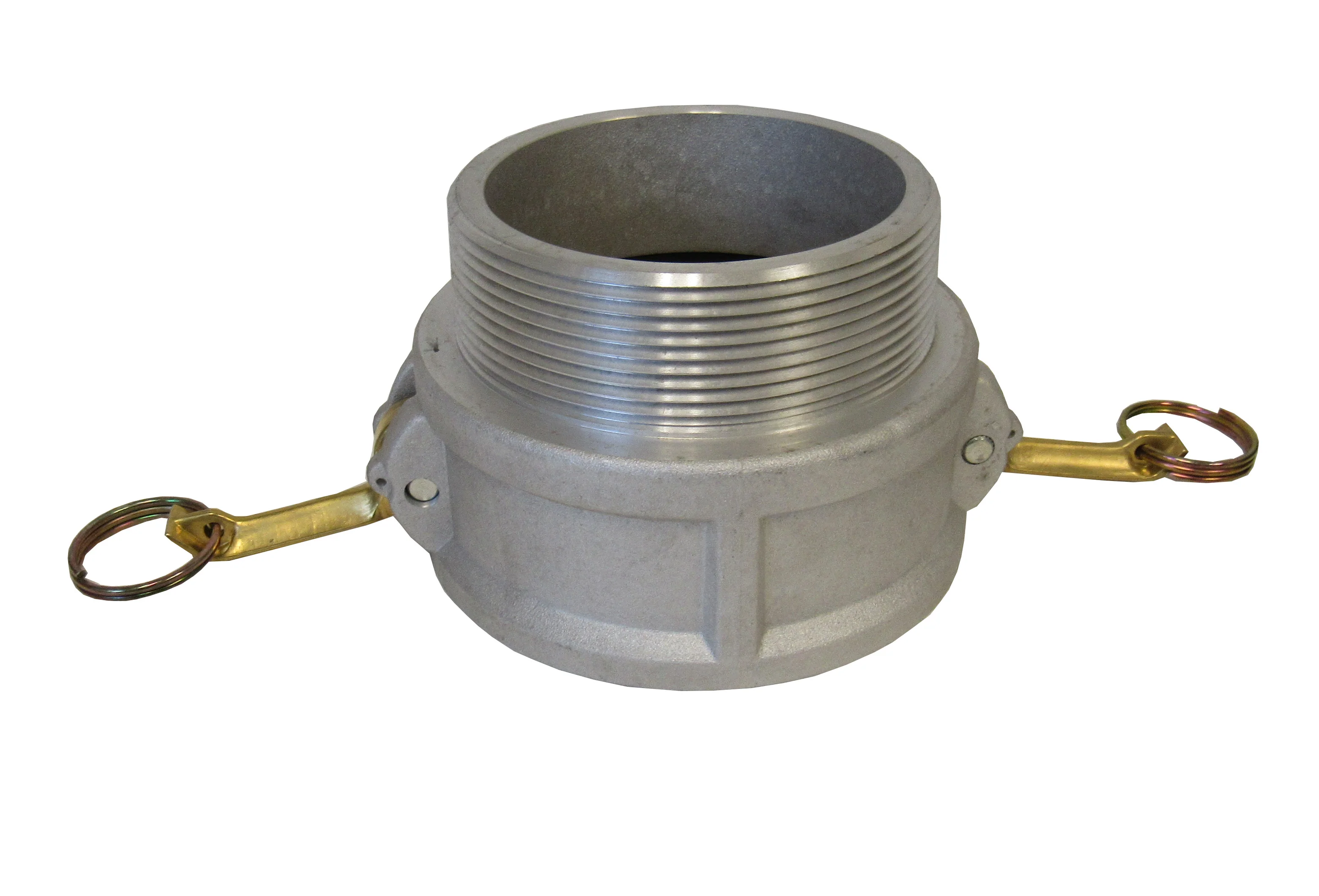

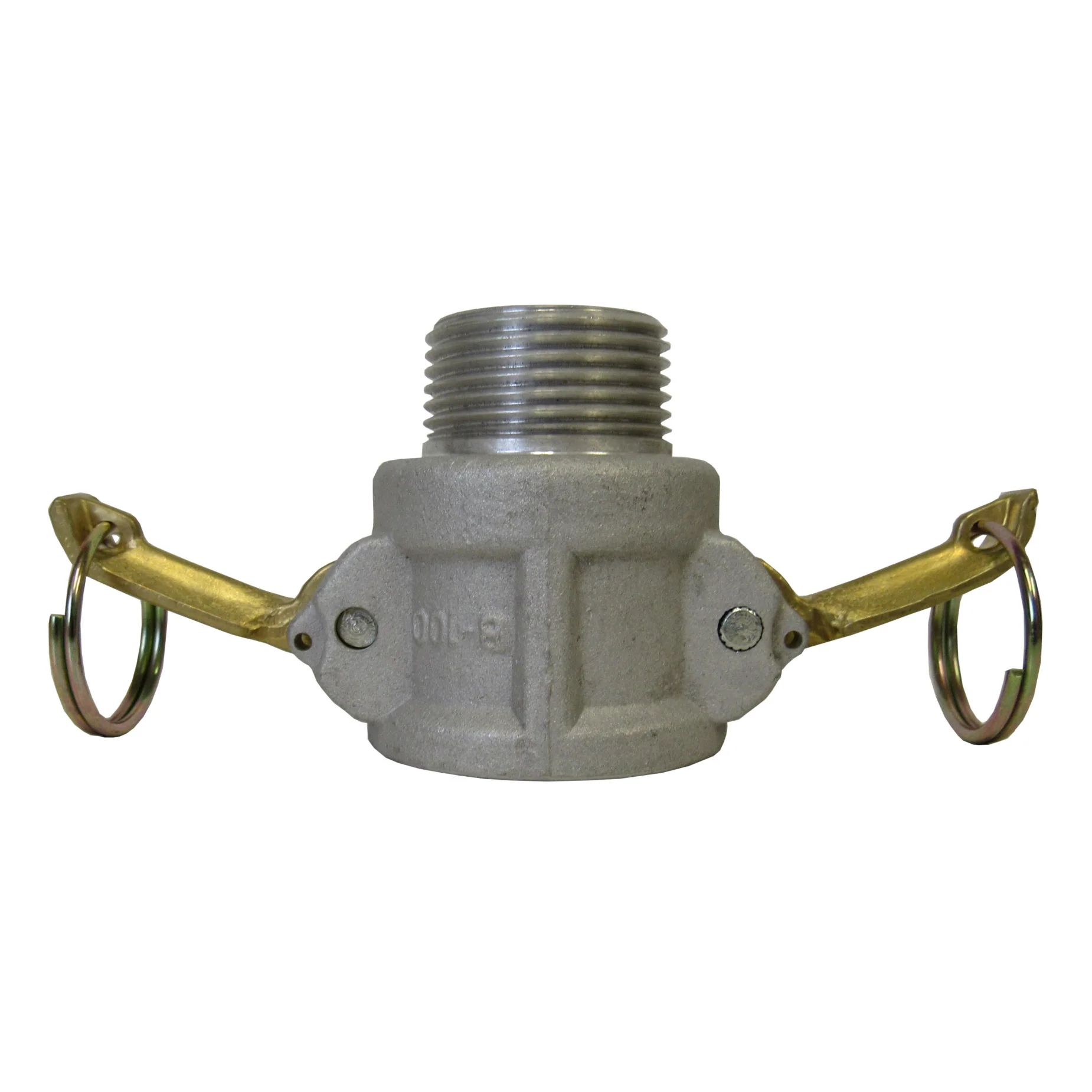

CAM LOCK COUPLER - ALUMINUM TYPE B FEMALE COUPLER / MALE NPT

• Cam-locking female coupler for connecting two pipes or hoses
• Female cam coupler on one end for connecting to a male adapter and male NPT threads on the other for connecting to a female NPT connection
• Aluminum for resistance to most chemicals, dimensional stability, and sterilization.
• Maximum operating pressure (@70° F):
  3/4 inch - 2 inch : 250 psi
  3 inch - 4 inch : 150 psi
  6 inch : 75 psi
• Maximum Temperature: 185° F
• Gasket Material: NBR
• Available in 3/4', 1', 1-1/4', 2', 3', 4', 6' sizes

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
