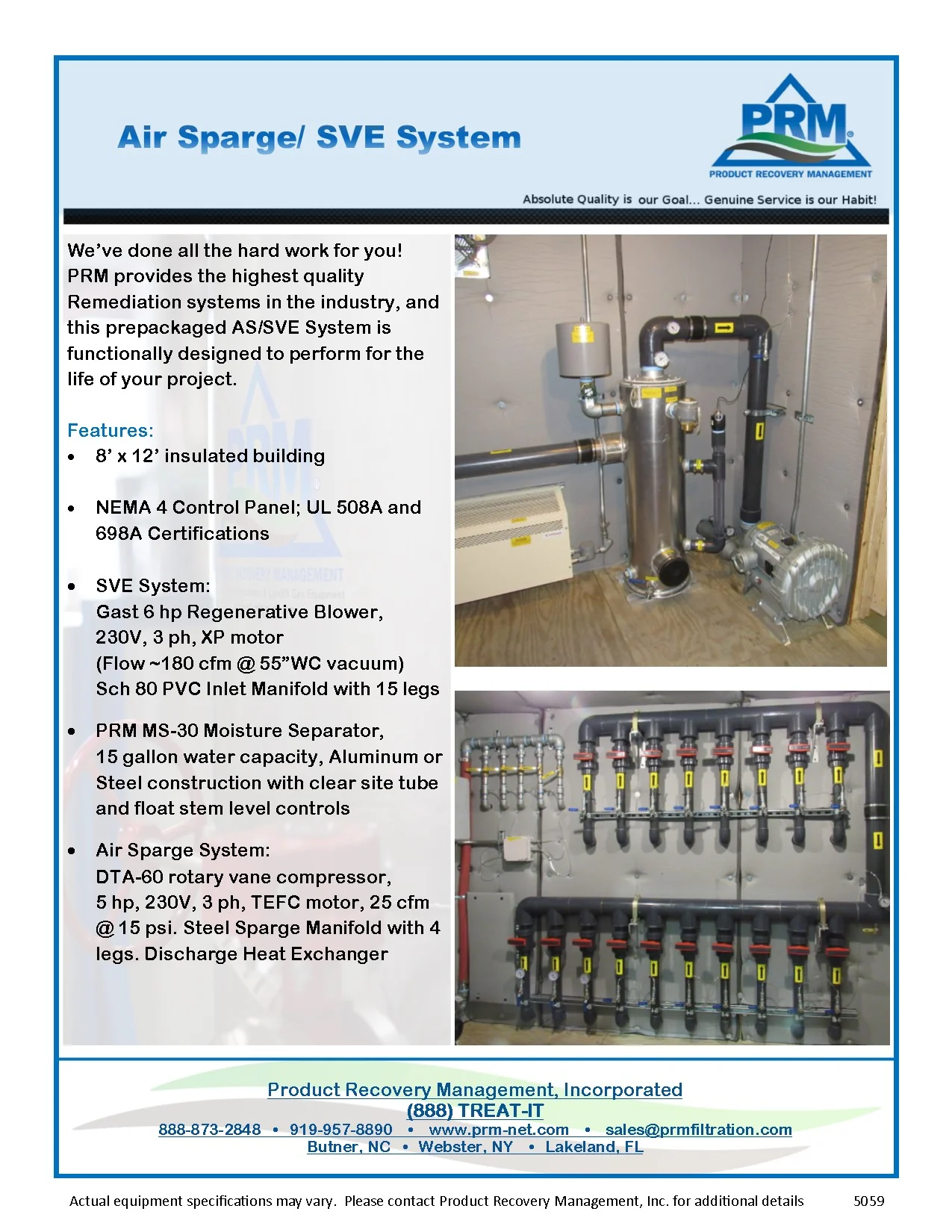

We’ve done all the hard work for you!
PRM provides the highest quality Remediation systems in the industry, and this prepackaged AS/SVE System is functionally designed to perform for the life of your project.

Features:

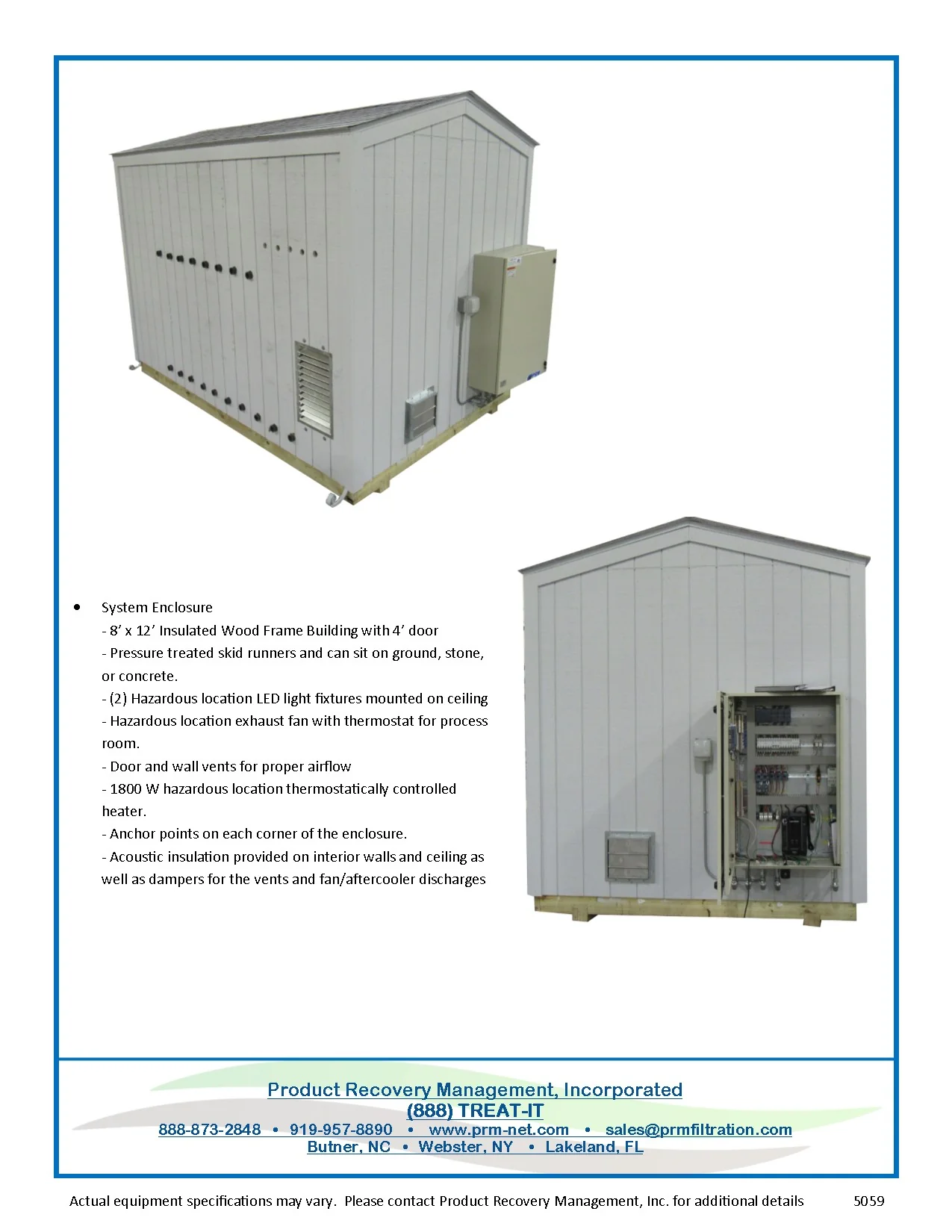

• 8’ x 12’ insulated building


• NEMA 4 Control Panel; UL 508A and 698A Certifications


• SVE System:
  Gast 6 hp Regenerative Blower, 230V, 3 ph, XP motor
  (Flow ~180 cfm @ 55”WC vacuum)
  Sch 80 PVC Inlet Manifold with 15 legs
  PRM MS-30 Moisture Separator, 15 gallon water capacity, Aluminum or Steel construction with clear site tube and float stem level controls


• Air Sparge System:
  DTA-60 rotary vane compressor, 5 hp, 230V, 3 ph, TEFC motor,
  25 cfm @ 15 psi.
  Steel Sparge Manifold with 4 legs.
  Discharge Heat Exchanger
